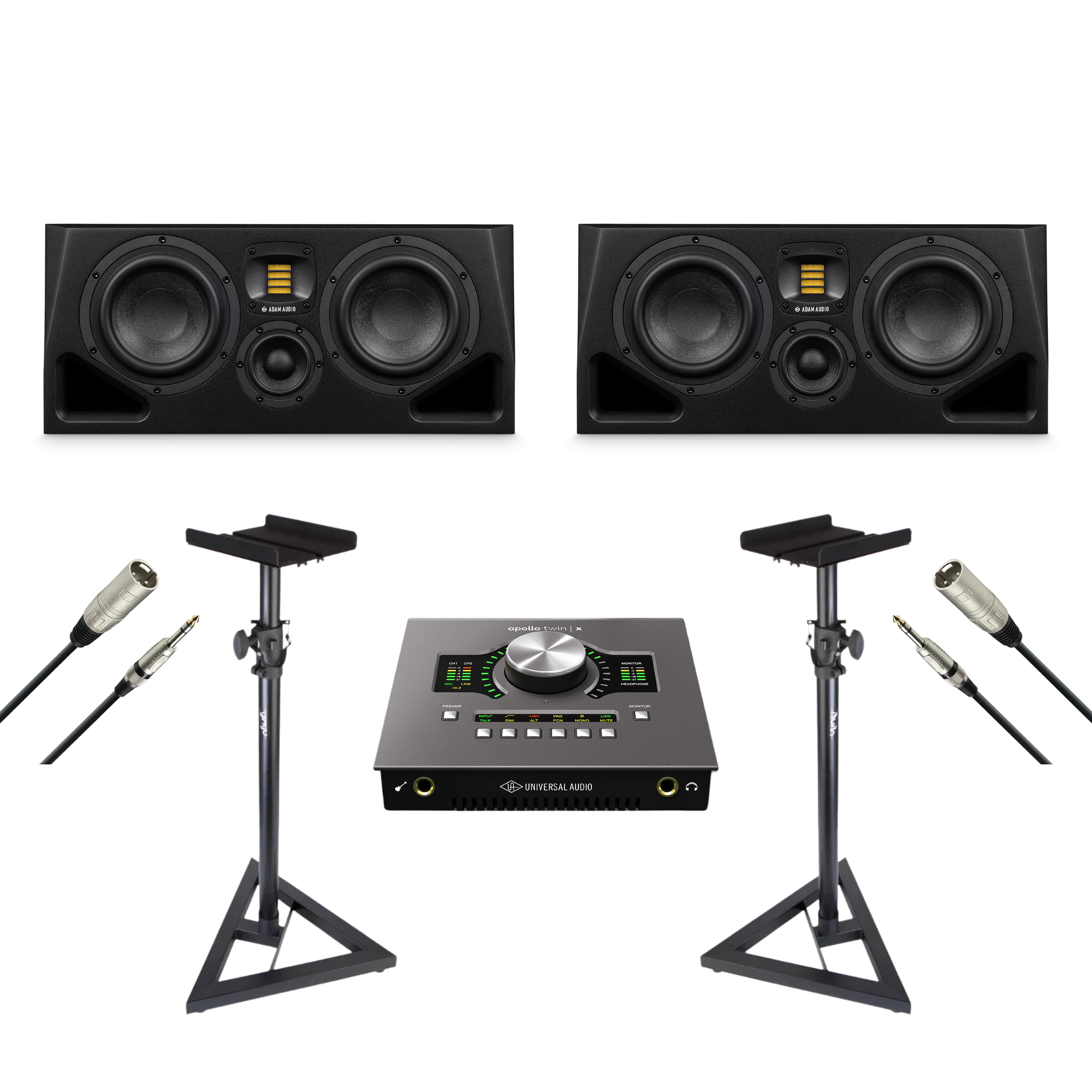

Adam Audio A77H Studio Monitor Speaker (Pair) + Speakers Adjustable Stands (Pair) + Universal Audio Apollo Twin X USB + Adam Hall XLR male to TRS 3M (Pair)

Adam Audio A77H Studio Monitor Speaker (Pair) + Speakers Adjustable Stands (Pair) + Universal Audio Apollo Twin X USB + Adam Hall XLR male to TRS 3M (Pair) - Image 2

Adam Audio A77H Studio Monitor Speaker (Pair) + Speakers Adjustable Stands (Pair) + Universal Audio Apollo Twin X USB + Adam Hall XLR male to TRS 3M (Pair)

Name: Adam Audio A77H Studio Monitor Speaker (Pair) + Speakers Adjustable Stands (Pair) + Universal Audio Apollo Twin X USB + Adam Hall XLR male to TRS 3M (Pair) | lux-audio.com
SKU: ADAMAUDIOA77H + APOLLOTWINX + ACCSTNSPK + AHCABLEXLRTRS3M
Price: 4999 USD
Availability: InStock

Original price was: 5,970 $.Current price is: 4,999 $.

ADAMAUDIOA77H-311/313

APOLLOTWINX-111/113

ACCSTNSPK-115/212

AHCABLEXLRTRS3M-415/515

SKU: ADAMAUDIOA77H + APOLLOTWINX + ACCSTNSPK + AHCABLEXLRTRS3M Categories: Mixing & Mastering Bundle, Production Studio Bundle Tags: a77h studio monitors, adam audio, Adam Hall, apollo, apollo twin x, monitor stand Brand: Adam Audio, Adam Hall, Universal Audio

Description
Reviews (0)

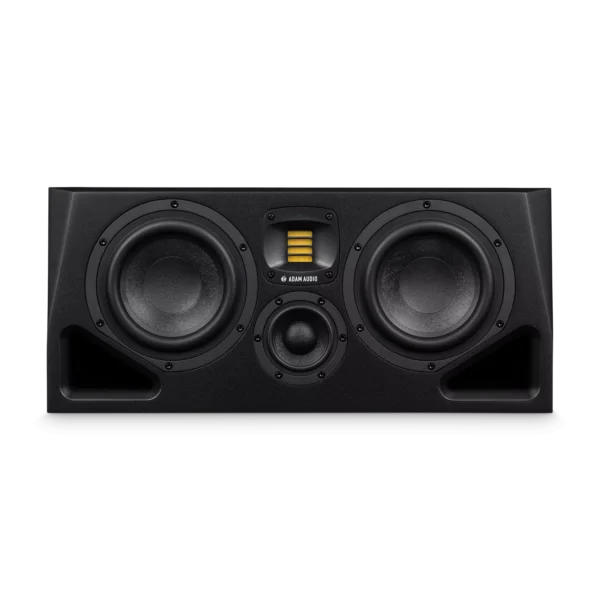

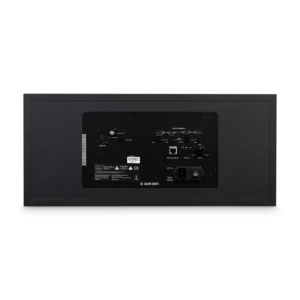

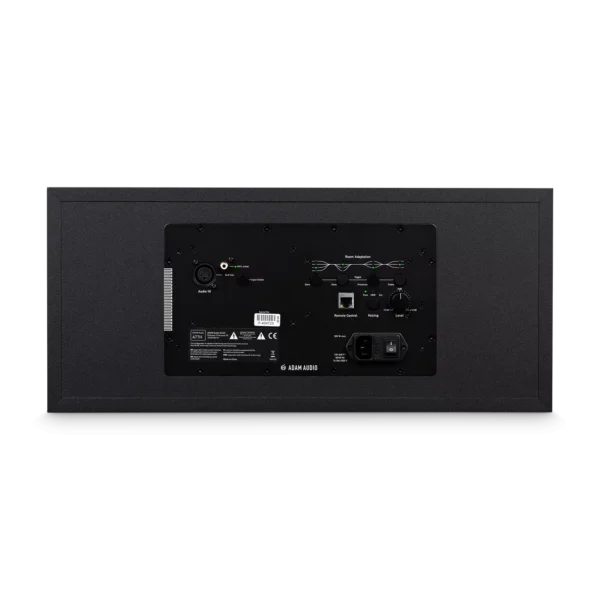

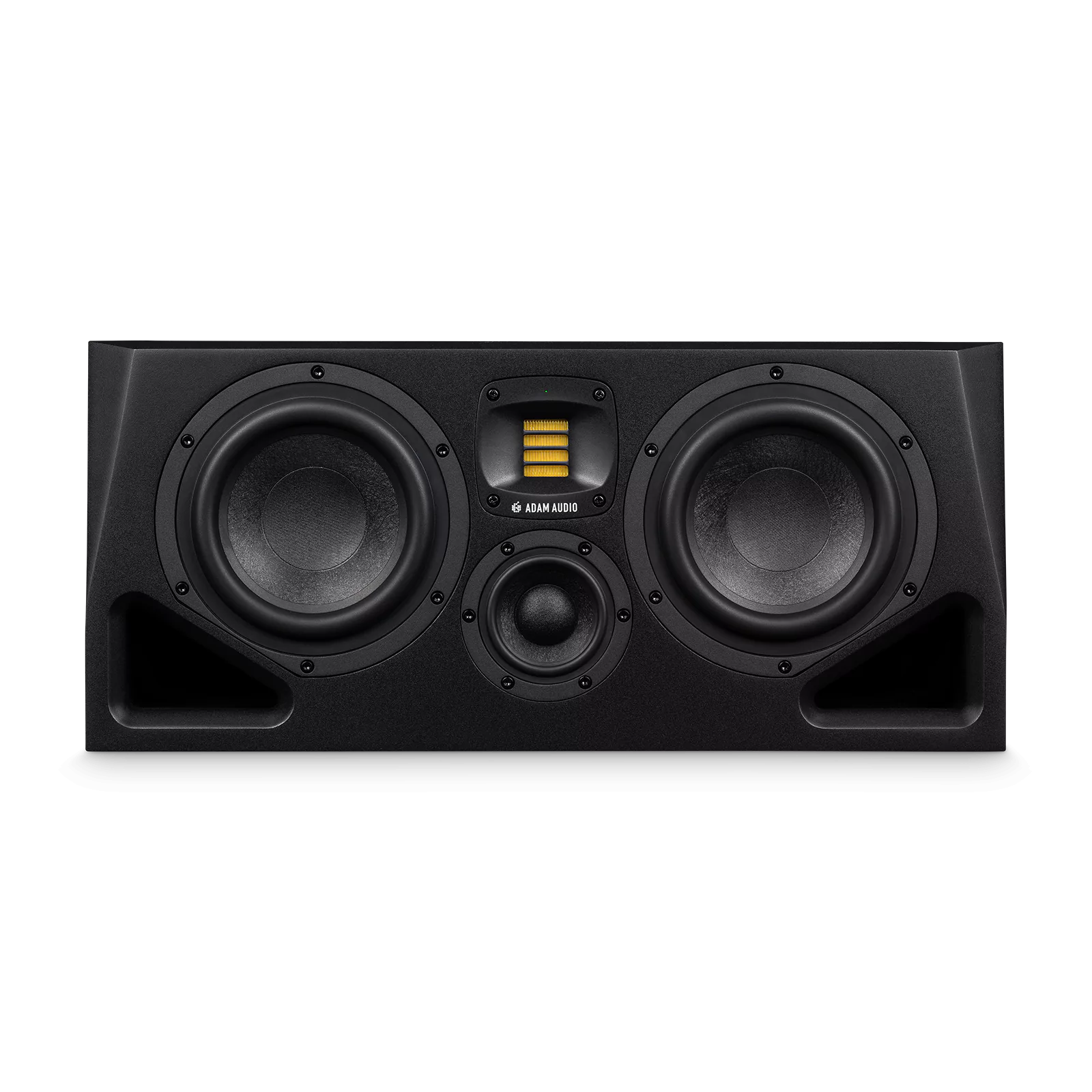

Adam Audio A77H :

A Control Remote Software

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.

Rotatable HPS Waveguide & X-ART Tweeter

Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

Automated Room Correction with Sonarworks

ADAM Audio is proud to partner with Sonarworks on an automated room correction solution that runs directly on the DSP of A Series monitors.

General Data
- Display: Front panel multi-color LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 15 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 500 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 17.1 kg (37 lb 11 oz)
- Dimensions (Height x Width x Depth): 236 mm x 531 mm x 350 mm (9 1/4″ x 20 7/8″ x 13 3/4″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A77H loudspeaker, power cable, Quick Start Guide
Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
Amplification
- Woofer
  - Amplifier Type: PWM
  - Peak (10% THD, limiter deactivated): 250 W
  - RMS (1% THD, limiter deactivated): 200 W
- Midrange
  - Amplifier Type: Class A/B
  - Peak (10% THD, limiter deactivated): 70 W
  - RMS (1% THD, limiter deactivated): 55 W
- Tweeter
  - Amplifier Type: Class A/B
  - Peak (10% THD, limiter deactivated): 20 W
  - RMS (1% THD, limiter deactivated): 15 W
Control Options [via Network]
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference

Acoustics
- Frequency Response @ -3 dB: 37 Hz – 41 kHz
- Frequency Response @ -6 dB: 34 Hz – 45 kHz
- Crossover Frequencies: 400 Hz, 3.0 kHz
- Max. peak SPL per speaker at 1 m (sine bursts): 106 dB SPL
- Max. peak SPL per speaker at 1 m (IEC-weighted noise): 118 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 105 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 108 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 99 dB SPL
- Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 102 dB SPL
- Dolby DARDT max SPL in full space: 118 dB SPL
- Dolby DARDT max SPL in full space (bass managed): 120 dB SPL
Drivers
- Woofer
  - Basket Diameter: 2 x 7″
  - Voice Coil Diameter: 1.5″ (38 mm)
  - Cone Material: MLM
- Midrange
  - Type: Dome Cone Hybrid (DCH)
  - Basket Diameter: 3.5″
  - Voice Coil Diameter: 1.3″ (33 mm)
  - Cone Material: MLM
- Tweeter
  - Type: X-ART
  - Diaphragm Area: 4 inch² (2420 mm²)
  - Equivalent Diaphragm Diameter: 2″ (56 mm)
  - Velocity Transform Ratio: 4 to 1
  - Diaphragm Weight: 0.17 g
  - Waveguide: HPS (rotatable)
  - Waveguide Dispersion: 120° horizontal, 70° vertical
Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
- Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
  - Bass: +2, 0, -2, -4 dB
  - Desk: 0, -2, -4 dB
  - Presence: +1, 0, -1 dB
  - Treble: +1.5, 0, -1.5 dB

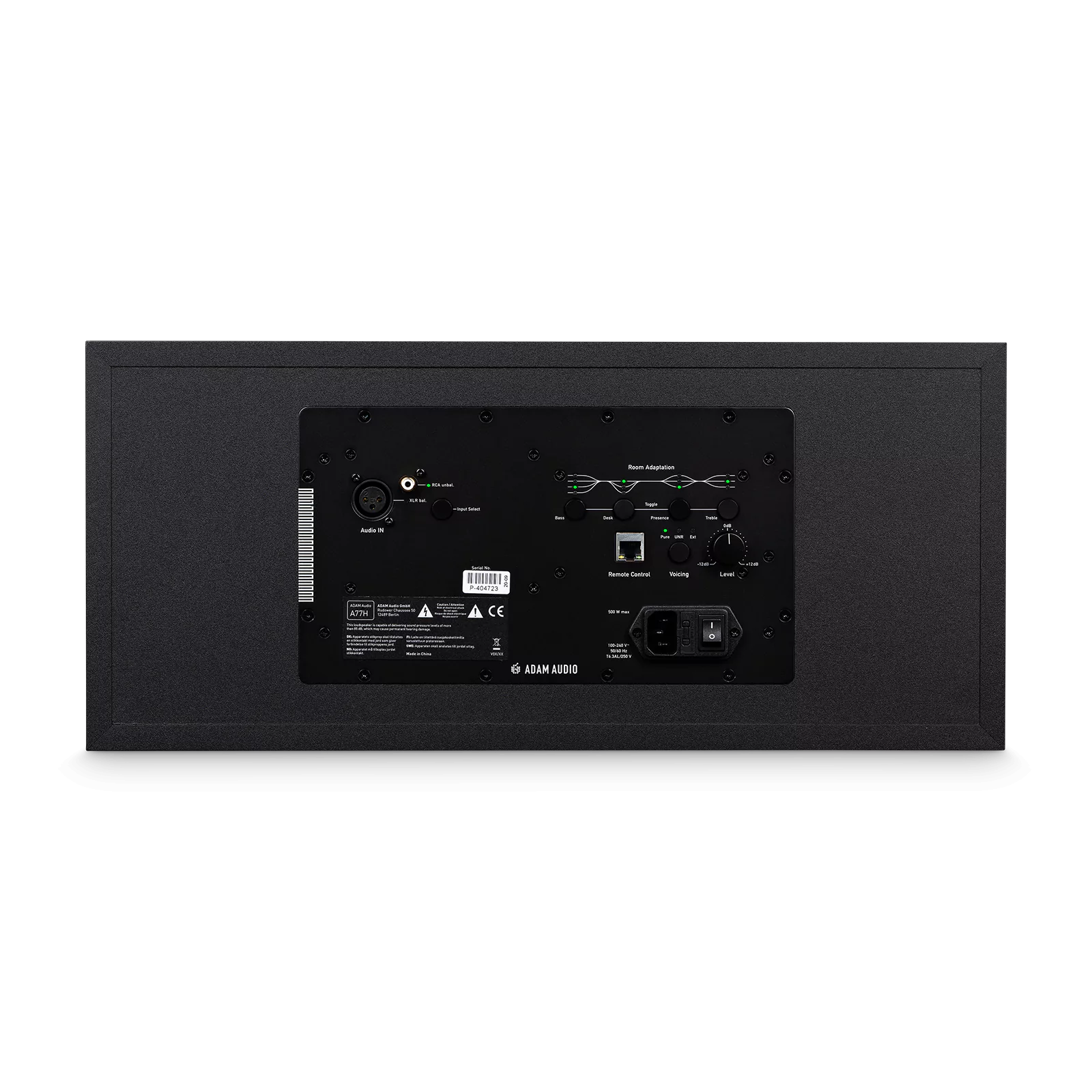

    Control Options [via Backplate]

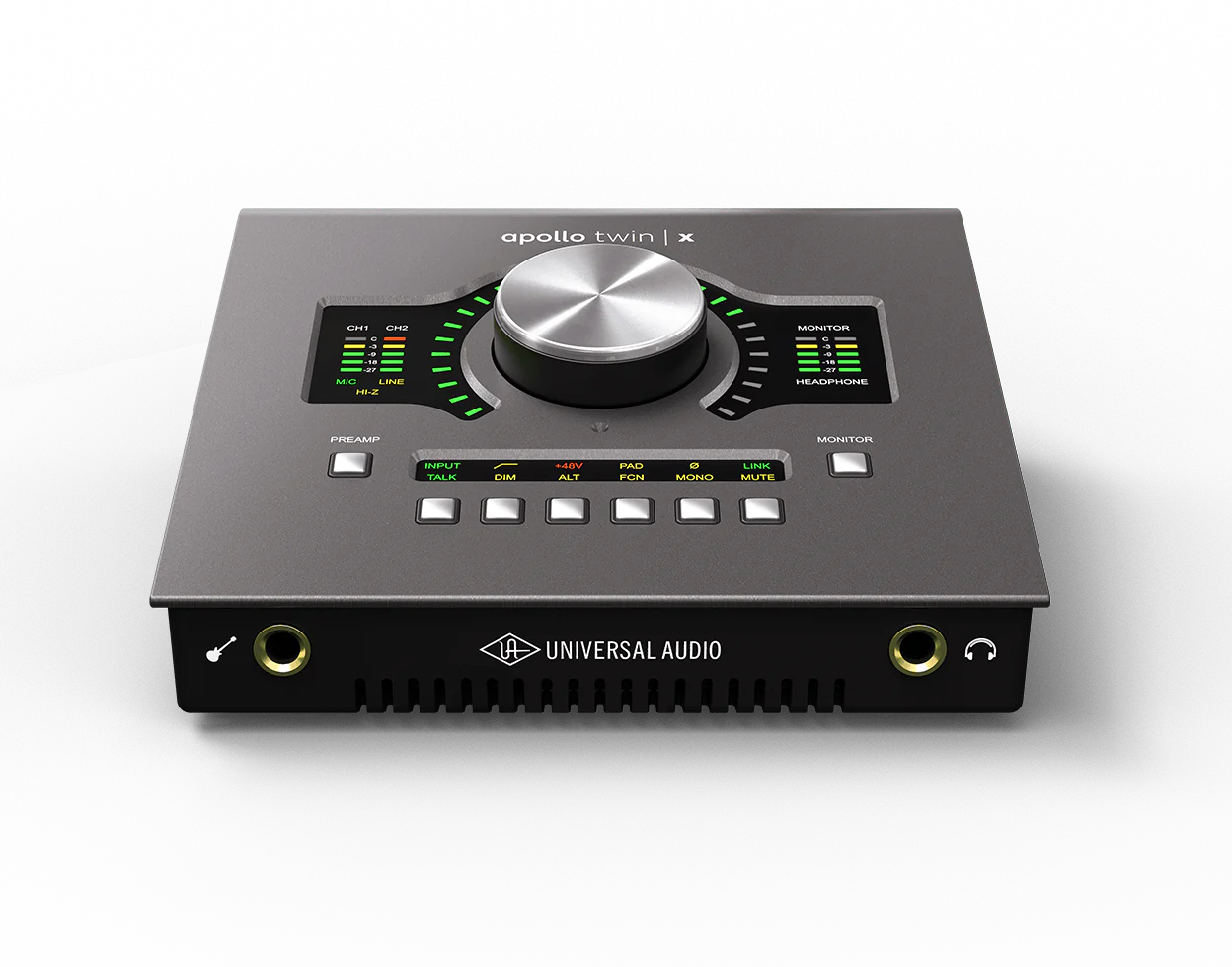

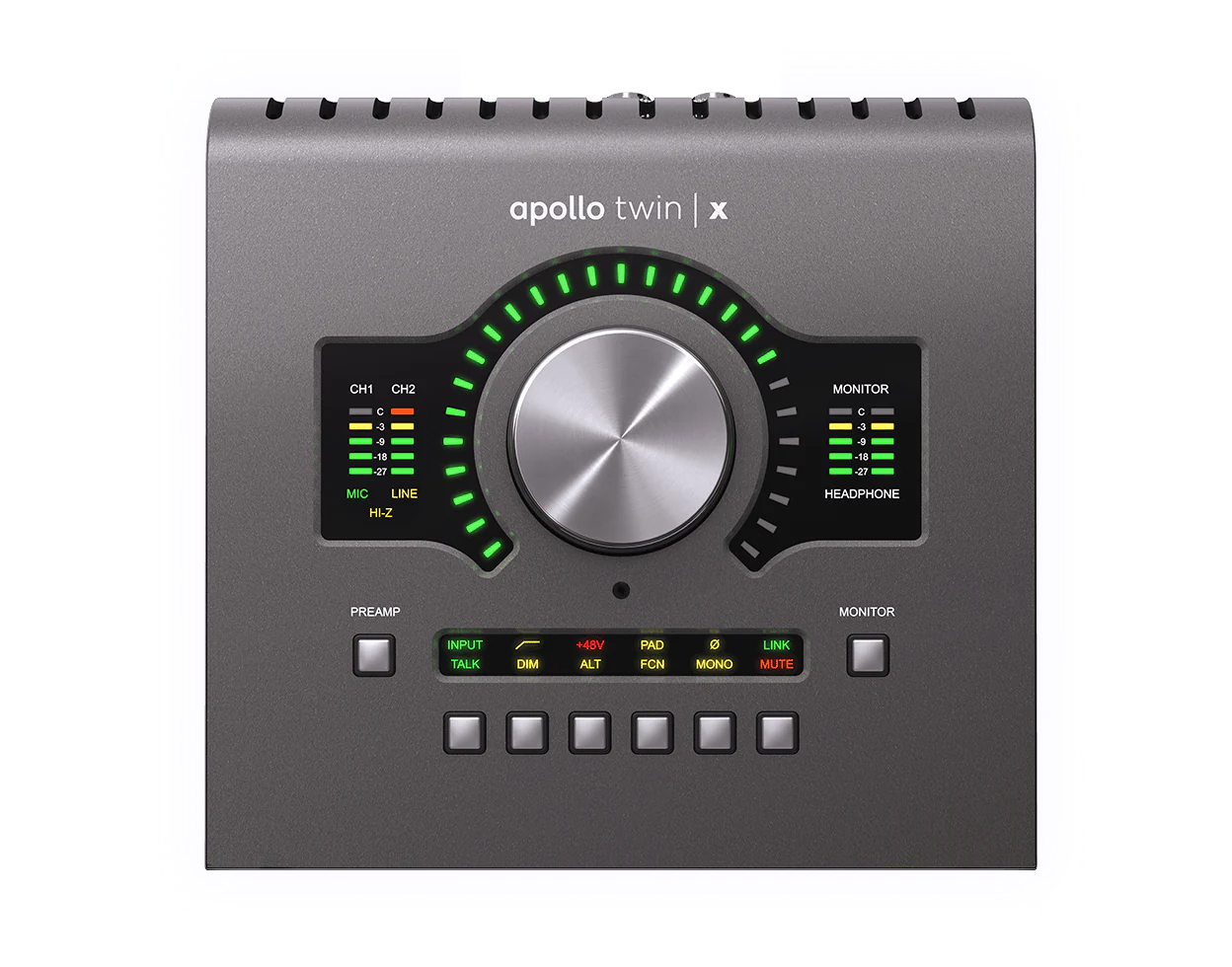

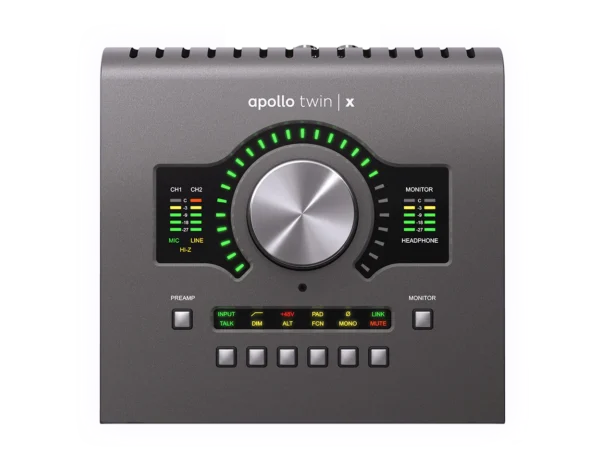

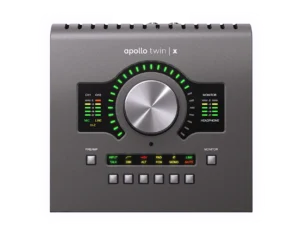

Apollo Twin X :

Universal Audio Apollo Twin X 10×6 Thunderbolt Audio Interface with UAD DSP

10-in/6-out, 24-bit/192kHz, Thunderbolt 3 Audio Interface with 2 Unison Preamps, LUNA Compatibility, Premium Plug-in Suite, and Realtime Analog Classics Plug-in Package – Mac/PC AAX 64, VST, AU, RTAS

Sensational plug-in bundle included!

UAD Powered Plug-ins have earned their reputation for being some of the most accurate emulations of analog audio equipment ever created. The astonishing processing power of the UAD platform is what makes these plug-ins sound so great. You simply can’t get the depth, color, and character these plug-ins have without devoting huge CPU resources to them. Best of all, Apollo Twin X QUAD lets you record your audio through UAD plug-ins in real time with sub-2ms latency. When you buy the Apollo Twin X QUAD Heritage Edition, you’ll receive a premium suite of five award-winning plug-in titles:

UA 1176 Collection with three unique versions: Rev A, Rev E, and AE

Teletronix LA‑2A Classic Leveler Collection of three historic versions of the revered electro-optical tube processor

Pultec Passive EQ Collection provides access to three historical and highly coveted Pultecs

UA 610 Tube Preamp & EQ Collection including the storied Wally Heider “Green Board,” used to record Neil Young, Ray Charles, Elvis Presley and Jimi Hendrix

UA Pure Plate Reverb that delivers a shimmering, authentic plate reverb sound with a minimum of fuss

You’ll also receive the Realtime Analog Classics bundle:

UA 610-B

UA 1176LN Legacy

UA 1176SE Legacy

Ampeg SVT-VR Classic

Marshall Plexi Classic

Precision Channel Strip (Precision Mix Rack Collection)

Precision Reflection Engine (Precision Mix Rack Collection)

Precision Delay Mod (Precision Mix Rack Collection)

Precision Delay Mod L (Precision Mix Rack Collection)

Pultec EQP-1A Legacy

Pultec-Pro Legacy

Teletronix LA-2A Legacy

Raw Distortion

RealVerb Pro

Universal Audio Apollo Twin X QUAD Heritage Edition Features:

10-in/6-out Thunderbolt 3 audio interface for Mac or PC, with onboard UAD-2 QUAD Core processing

Upgraded elite-class AD/DA conversion supplies an ultra-pristine signal path with 127dB dynamic range

2 Unison preamps allow you to track through models of the industry’s most legendary hardware

Integrated talkback for easy communication and slating takes

Ultra-fast Thunderbolt 3 connectivity provides less than 2ms of latency and ample expandability

Includes a premium plug-in suite of 5 award-winning UAD plug-ins, along with the Realtime Analog Classics plug-in bundle with accurate emulations of vintage analog hardware

Track and monitor through plug-ins with no latency

Compatible with UA’s LUNA software for ultra-tight hardware/software integration

Backward-compatible with Thunderbolt 1 and 2 Macs (does not support Thunderbolt 1 or 2 on Windows — adapter sold separately)

Tech Specs

Computer Connectivity: Thunderbolt 3

Form Factor: Desktop

Simultaneous I/O: 10 x 6

A/D Resolution: 24-bit/192kHz

Built In DSP/FX: UAD-2 Quad Core Processing, Realtime UAD Powered Plug-ins

Number of Preamps: 2 x mic, 1 x instrument

Phantom Power: Yes

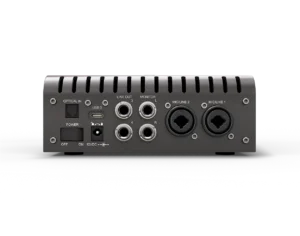

Analog Inputs: 2 x XLR-1/4″ combo (mic/line), 1 x 1/4″ (Hi-Z)

Analog Outputs: 2 x 1/4″ (monitor), 2 x 1/4″ (line out)

Digital Inputs: 1 x Optical Toslink (ADAT,S/PDIF)

Headphones: 1 x 1/4″ TRS

Thunderbolt: 1 x USB-C (Thunderbolt 3)

Software: UAD Realtime Analog Classics plug-ins (VST, AU, AAX 64), 5 Heritage Edition plug-ins

OS Requirements – Mac: macOS 10.12 or later, Quad Core i7 Processor or higher

OS Requirements – PC: Windows 10 Anniversary update or later, Quad Core i7 Processor or higher

Power Supply: 12V DC power supply (included)

Height: 2.60″

Width: 6.31″

Depth: 6.20″

Weight: 2.35 lbs.

Manufacturer Part Number: APLTWXQ-HE
