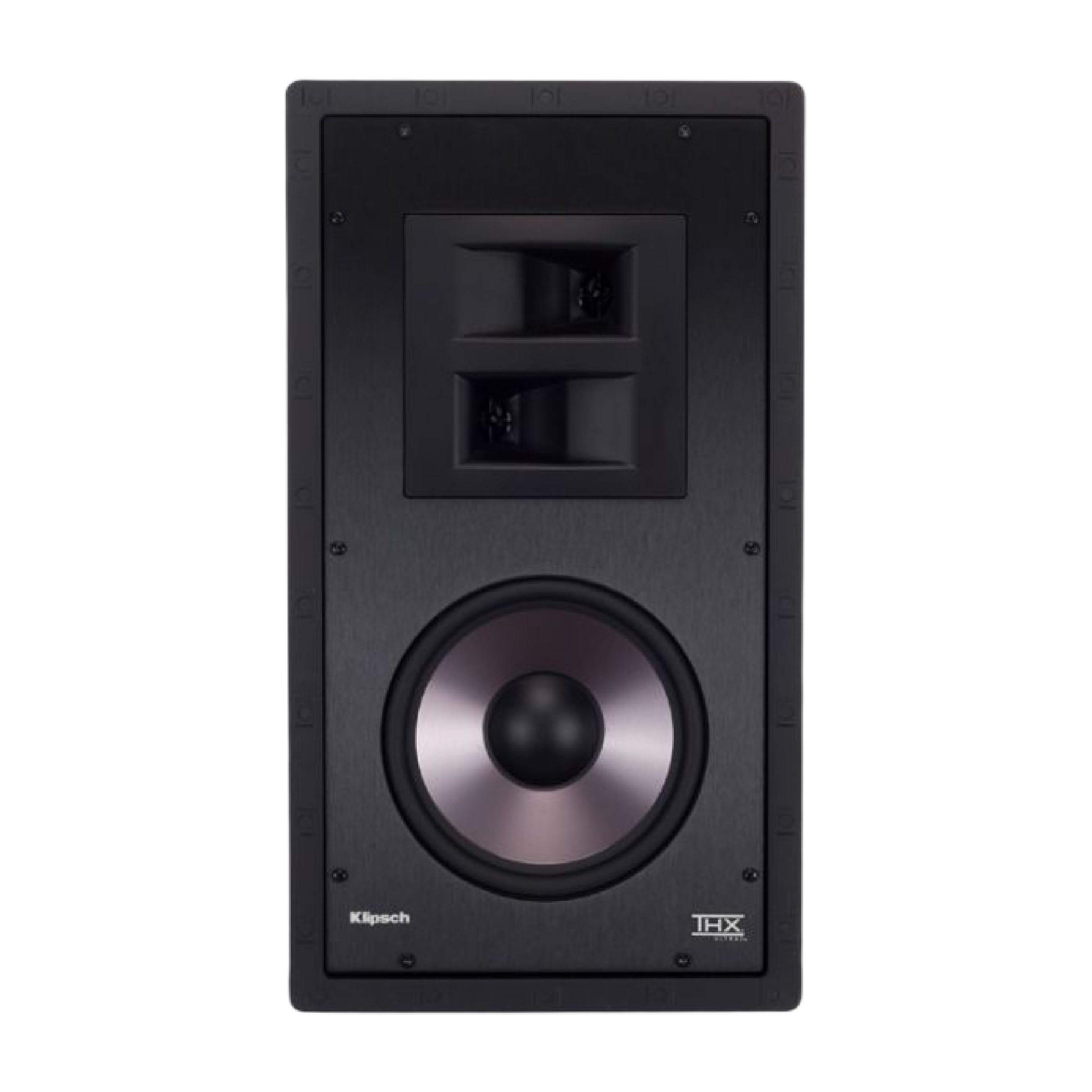

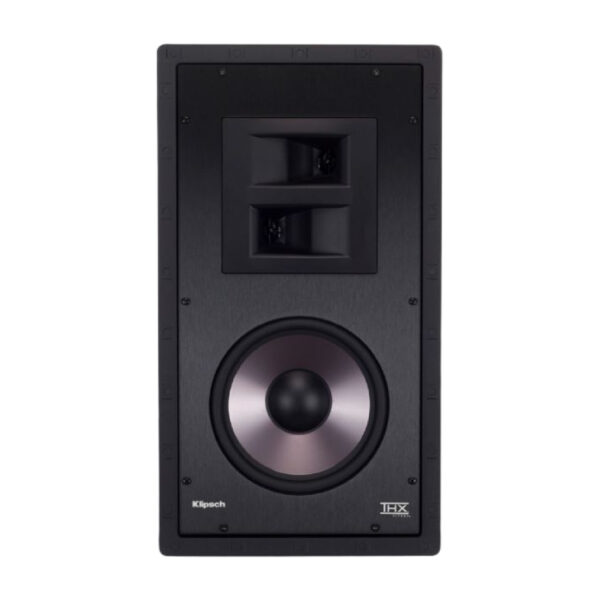

Klipsch PRO-7800-S-THX In-Wall Speaker

Klipsch PRO-7800-S-THX – THX Ultra2 Certified In-Wall Surround Speaker for Immersive Home Theater

The Klipsch PRO-7800-S-THX is a premium in-wall surround speaker engineered to deliver immersive, enveloping sound in high-end home theaters. Certified by THX Ultra2, this speaker is designed to provide wide, diffuse audio coverage that fills your listening space with natural, room-filling ambiance.

Built to perfectly complement the Klipsch PRO-7800-L-THX and other THX Ultra2 front speakers, the PRO-7800-S-THX utilizes dual 1″ titanium compression drivers and dual 5.25″ fiberglass cone woofers arranged in a unique bipole design. This creates a broad soundstage that wraps around the listener, recreating the cinematic surround effect exactly as the filmmakers intended.

Designed for side or rear wall placement, the PRO-7800-S-THX delivers smooth frequency response, high efficiency, and dynamic clarity with a low-profile, paintable grille for seamless integration into any room.

---

🔑 Key Features

• THX Ultra2 Certification
  Meets strict THX performance standards for dynamic range, distortion, and dispersion in large rooms.

• Dual 1” Titanium Compression Drivers
  Mounted on wide-dispersion Tractrix® Horns to provide crystal-clear, high-frequency sound in multiple directions.

• Dual 5.25” Fiberglass Cone Woofers
  Deliver tight, punchy bass and balanced midrange frequencies.

• Bipole Design
  Angled drivers create a wide, diffuse sound field, ideal for immersive surround channels.

• Paintable Magnetic Grille
  Allows discreet installation that blends with room décor.

• Optimized for Side or Rear Surround Use
  Designed to create a natural, enveloping surround sound experience.

---

📊 Technical Specifications

• Certification: THX Ultra2

• Speaker Type: Bipole In-Wall Surround

• Tweeters: Dual 1″ Titanium Compression Drivers on wide-dispersion Tractrix® Horns

• Woofers: Dual 5.25” Fiberglass Cone Woofers

• Frequency Response: 80Hz – 20kHz ±3dB

• Sensitivity: 92 dB @ 2.83V / 1m

• Nominal Impedance: 8 Ohms

• Power Handling: 100W RMS / 400W Peak

• Recommended Amplifier Power: 100W – 150W

• Mounting Depth: 3.75″ (95 mm)

• Cutout Dimensions: Approx. 16.5″ H x 6.75″ W (41.9 cm x 17.1 cm)

• Grille Dimensions: Approx. 17.75″ H x 8.25″ W (45.1 cm x 21 cm)

• Weight: Approx. 9.6 lbs (4.4 kg)

---

🔊 Immersive Surround Sound

The PRO-7800-S-THX’s bipole design sets it apart from traditional surround speakers. By firing sound from two opposing sets of drivers, it produces a wide, diffuse soundstage that fills your room and creates a true sense of space.

This design minimizes pinpoint localization of the speakers themselves, enhancing the illusion that sound is coming from all around you, just like in a commercial cinema. Whether it’s subtle ambient effects or explosive action sequences, the PRO-7800-S-THX delivers enveloping, detailed surround sound.

---

🧱 Sleek, Low-Profile Design

The slim mounting depth and paintable magnetic grille make the PRO-7800-S-THX an excellent choice for clean, professional installations. It integrates discreetly into your walls without compromising your room’s aesthetics.

Its installation is straightforward with tool-free mounting hardware designed for standard 2×4 stud walls, and pre-construction brackets are available for new builds.

---

📍 Applications

• Side and Rear Surround Channels in THX Ultra2 certified home theaters

• Immersive multi-channel audio systems needing wide coverage and ambient effects

• Rooms where discreet, in-wall installation is desired without sacrificing sound quality

• High-performance surround sound for gaming, movies, and music

---

✅ Why Choose the Klipsch PRO-7800-S-THX?

• Certified THX Ultra2 Performance ensures reference-quality surround sound

• Bipole Driver Configuration creates natural, enveloping surround fields

• Dual Compression Drivers and Woofers provide balanced, detailed audio

• Sleek, Paintable Design for professional, low-visibility installation

• High Sensitivity and Power Handling for dynamic sound without distortion

• Perfect complement to PRO-7800-L-THX Front Speakers for a full, cohesive system

---

🎬 Final Thoughts

The Klipsch PRO-7800-S-THX is the ideal solution for audiophiles and home theater builders who demand authentic, immersive surround sound. Its advanced bipole design and THX Ultra2 certification ensure that you experience movies, games, and music with the wide, natural ambiance that brings your home theater to life.

Pair it with Klipsch’s PRO-7800-L-THX front speakers for a seamless, reference-level cinematic experience that rivals commercial theaters, all while maintaining a clean, minimalist aesthetic in your living space.

---
