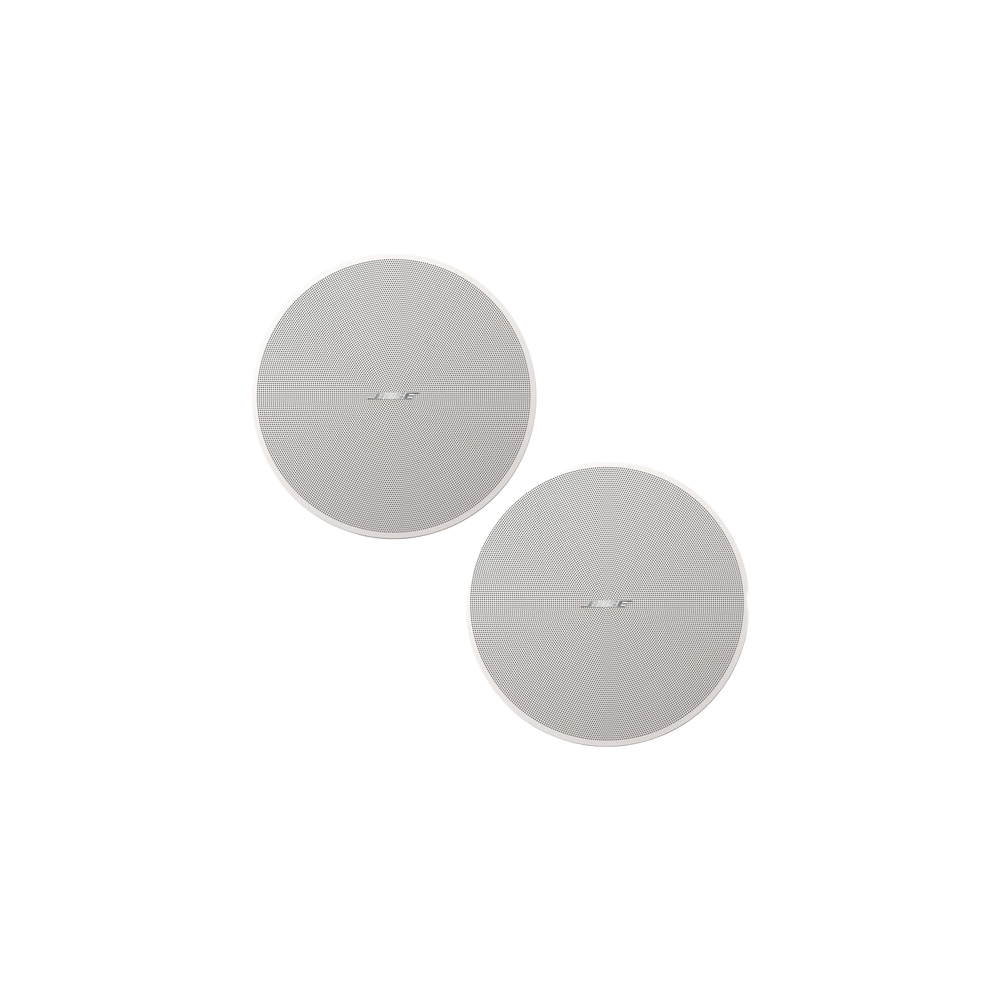

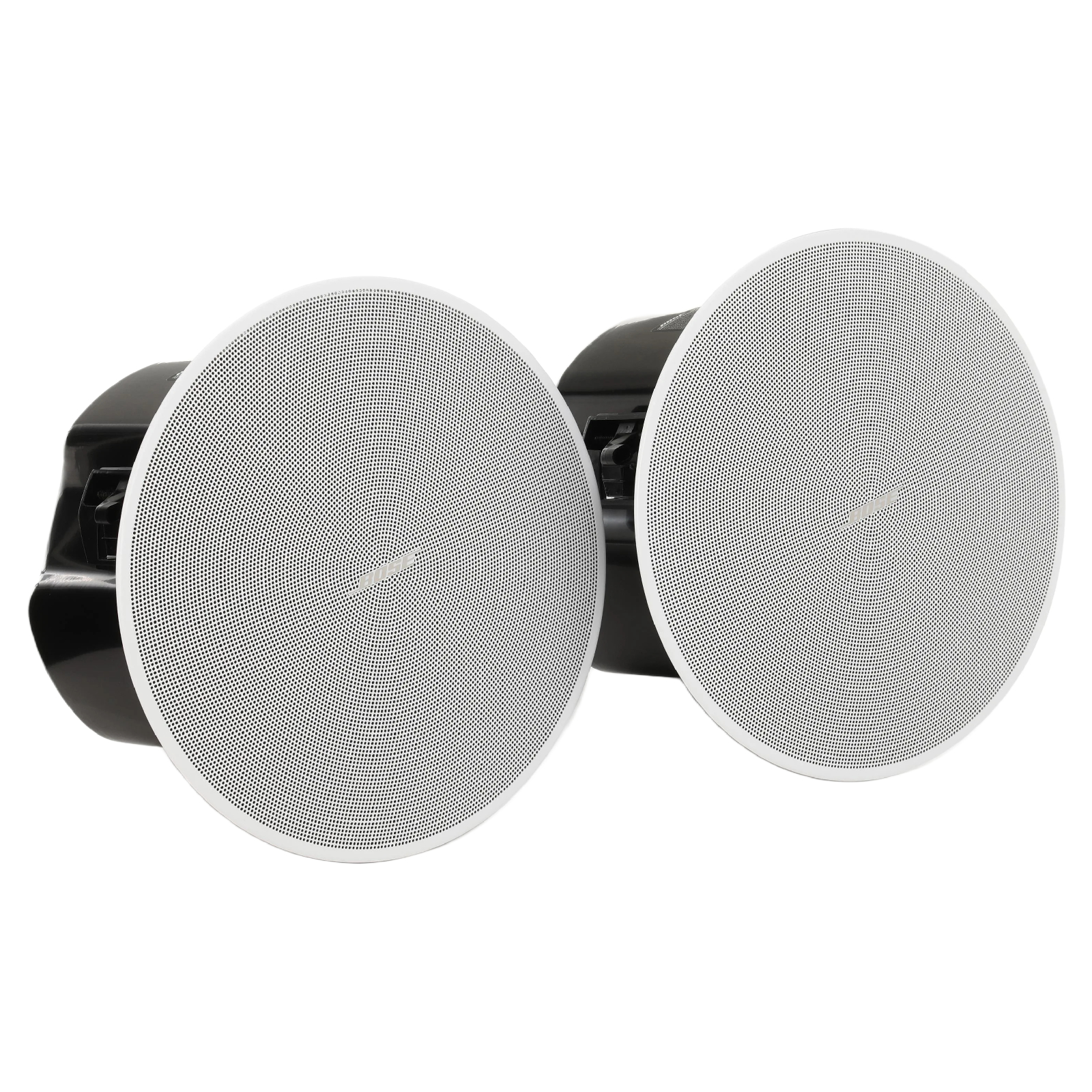

Bose Pro DM5C In-Ceiling Speakers (Pair, White) – 5.25″ Full-Range Drivers, 125W Peak, 70/100V or Low-Z Compatible, Premium Audio for Commercial Ceiling Installations





Bose DM5C In-Ceiling Speakers (Pair, White) – Elegant Design Meets Premium Audio Performance

The Bose DesignMax DM5C ceiling speakers (pair, white) deliver a seamless blend of premium sound quality, architectural aesthetics, and installation simplicity—making them ideal for commercial applications that demand both form and function. Whether you’re outfitting a hotel lobby, restaurant, office, or retail space, the DM5C ceiling speakers provide powerful performance, wide dispersion, and an ultra-clean appearance that blends into any environment.

Each DM5C speaker features a 5.25-inch coaxial woofer, a 0.75-inch high-frequency dome tweeter, and Bose’s exclusive Dispersion Alignment system, ensuring consistent, high-fidelity sound across every corner of the room. Sold as a matched pair in white, they’re designed to integrate easily into distributed audio systems with support for both low-impedance and high-impedance (70V/100V) configurations.

---

Clean Aesthetics for Modern Interiors

The Bose DM5C speakers are crafted for spaces where design matters just as much as sound. Featuring a frameless, ultra-thin magnetic grille, the speakers achieve a virtually flush appearance when mounted in the ceiling. The white finish complements modern architecture, and the grille can be painted to match any décor, ensuring a discreet installation that maintains visual harmony throughout the space.

The DM5C’s low-profile design makes it ideal for applications where visible technology should be minimized or where ceiling real estate is limited. Whether installed in luxury retail stores, boutique hotels, or corporate meeting rooms, the DesignMax DM5C offers an aesthetically refined speaker solution that doesn’t compromise on performance.

---

High-Performance Coaxial Driver Design

At the core of the DM5C’s impressive performance is a two-way coaxial driver, combining a 5.25-inch polypropylene woofer with a 0.75-inch dome tweeter in a single axis-aligned configuration. This design improves phase coherence and frequency response, delivering natural, detailed sound with minimal distortion.

The coaxial setup allows the speaker to reproduce both low and high frequencies from the same point source, creating a more immersive and accurate listening experience. The result is clear vocals, defined midrange, and smooth highs, suitable for both background music and voice paging.

---

Proprietary Dispersion Alignment for Even Coverage

Bose’s patented Dispersion Alignment system ensures that the tweeter and woofer are acoustically aligned for uniform off-axis response. With a wide 130° conical dispersion, the DM5C delivers consistent tonal balance and volume across the entire coverage area, reducing sound “hot spots” and eliminating dead zones.

This technology ensures fewer speakers are needed to provide full-area coverage, which translates into lower installation costs and simpler wiring—making the DM5C an efficient choice for both single-room and multi-zone applications.

---

Flexible for 70V/100V and 8-Ohm Systems

The DesignMax DM5C is equipped with a built-in multi-tap transformer, supporting both constant-voltage (70V/100V) systems and low-impedance (8-ohm) installations. A front-access tap selector behind the grille lets installers choose the appropriate power level or bypass the transformer entirely for 8-ohm operation.

This flexibility means the DM5C can be used in new construction, system upgrades, or hybrid installations where different speaker types and power requirements must be supported by the same amplifier. It’s a future-ready speaker solution that can scale with the needs of any commercial sound system.

---

Easy and Secure Installation with QuickHold Mounting

The Bose QuickHold mounting system makes ceiling speaker installation faster, easier, and more secure. Installers simply insert the speaker into the ceiling cutout and let the QuickHold arms snap into place without tools or additional hardware. The system also allows for easy removal or repositioning, reducing installation strain and minimizing risk of damage to ceiling tiles.

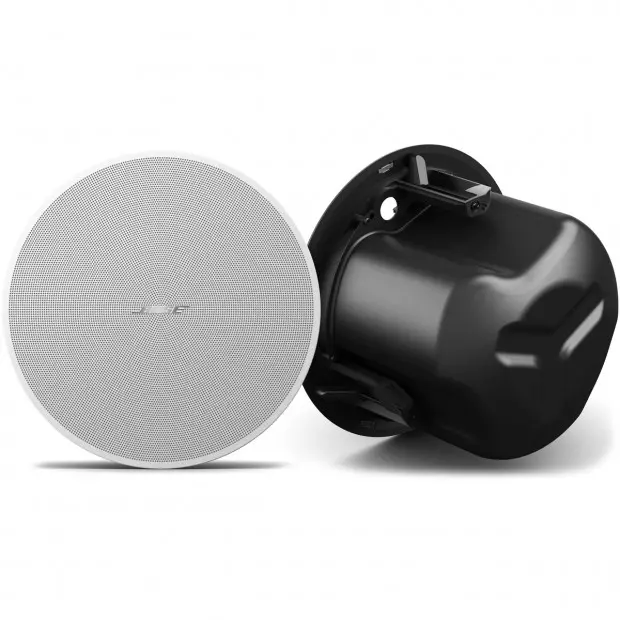

The DM5C includes a rear enclosure, tile bridge, and Euroblock connectors, supporting installations in open ceilings, plenum-rated spaces, and drop-tile environments. The design meets commercial safety standards and simplifies the install process even in tight or overhead locations.

---

Ideal for Commercial Audio Applications

The Bose DesignMax DM5C ceiling speaker pair (white) is optimized for professional installations in a variety of commercial settings, offering reliable audio performance and discreet integration. Ideal applications include:

• Retail stores and showrooms – Enhance customer experience with consistent, high-quality background music.

• Restaurants and cafés – Provide clear ambiance or paging with minimal visual disruption.

• Corporate offices – Support background audio in workspaces, meeting rooms, or lobbies.

• Hotels and hospitality venues – Distribute premium sound in lounges, corridors, and dining areas.

• Educational facilities – Ensure intelligible voice announcements and playback in classrooms and common areas.

• Fitness studios and spas – Deliver energizing or relaxing sound evenly across workout or relaxation zones.

Wherever they’re installed, the DM5C speakers offer reliable long-term performance and professional-grade sound clarity.

---

Technical Specifications – Bose DM5C (Pair, White)

• Speaker Type: In-ceiling, two-way coaxial loudspeaker

• Drivers:

  • Woofer: 5.25-inch polypropylene cone

  • Tweeter: 0.75-inch dome, coaxially mounted

• Frequency Response: 65 Hz – 20 kHz (-3 dB)

• Nominal Coverage Pattern: 130° conical

• Sensitivity: 87 dB SPL (1W @ 1m)

• Maximum SPL: 104 dB continuous / 110 dB peak

• Power Handling: 50W continuous / 200W peak (low-Z)

• Transformer Taps:

  • 70V: 30W, 15W, 7.5W, 3.75W

  • 100V: 30W, 15W, 7.5W

  • Bypass for 8Ω direct operation

• Impedance: 8 ohms nominal

• Enclosure Material: ABS housing with integrated rear can

• Grille: Frameless magnetic steel, paintable (white)

• Certifications: UL 1480, UL 2043, CE, RoHS compliant

• Dimensions:

  • Diameter: 263 mm (10.4 in)

  • Depth: 198 mm (7.8 in)

  • Cutout Diameter: 234 mm (9.2 in)

• Weight: 3.3 kg (7.3 lbs) per speaker

• Included Accessories:

  • Rear enclosure

  • Tile bridge

  • Magnetic grille

  • Installation hardware

• Finish: White (paintable); also available in black

---

Why Choose the Bose DesignMax DM5C (White, Pair)?

The Bose DM5C speakers in white (pair) combine refined industrial design with advanced audio engineering to meet the demands of today’s commercial environments. Whether you’re building a multi-zone sound system or a single high-quality listening space, the DM5C offers:

• Elegant ceiling integration with minimal visual impact

• Wide, even sound coverage using Dispersion Alignment

• Flexible transformer settings for various power and system types

• Easy and secure installation with QuickHold mounting

• High durability and safety certifications for commercial compliance

Backed by Bose’s reputation for engineering excellence and long-term reliability, the DesignMax DM5C white ceiling speaker pair is an ideal choice for any professional audio project where sound quality and style must go hand in hand.
