Bose Pro Bose Pro AMM108 – 8″ Loudspeaker High SPL Multipurpose Speaker with Waveguide Tech 150W RMS

Bose Pro AMM108 – 8″ Loudspeaker High SPL Multipurpose Speaker with Waveguide Tech 150W RMS – Compact Powerhouse for Every Audio Setup

The BOSE AMM108 Multipurpose Loudspeaker is a high-performance, passive two-way coaxial speaker designed for professionals and enthusiasts who demand consistent, clear sound across diverse applications. Whether you’re setting up a main PA system, stage monitor, fill speaker, or delay unit, the AMM108 delivers powerful output and exceptional dispersion in a compact, portable form—making it the go-to choice for touring acts, corporate events, houses of worship, and permanent installations.

---

🎯 Performance That Packs a Punch

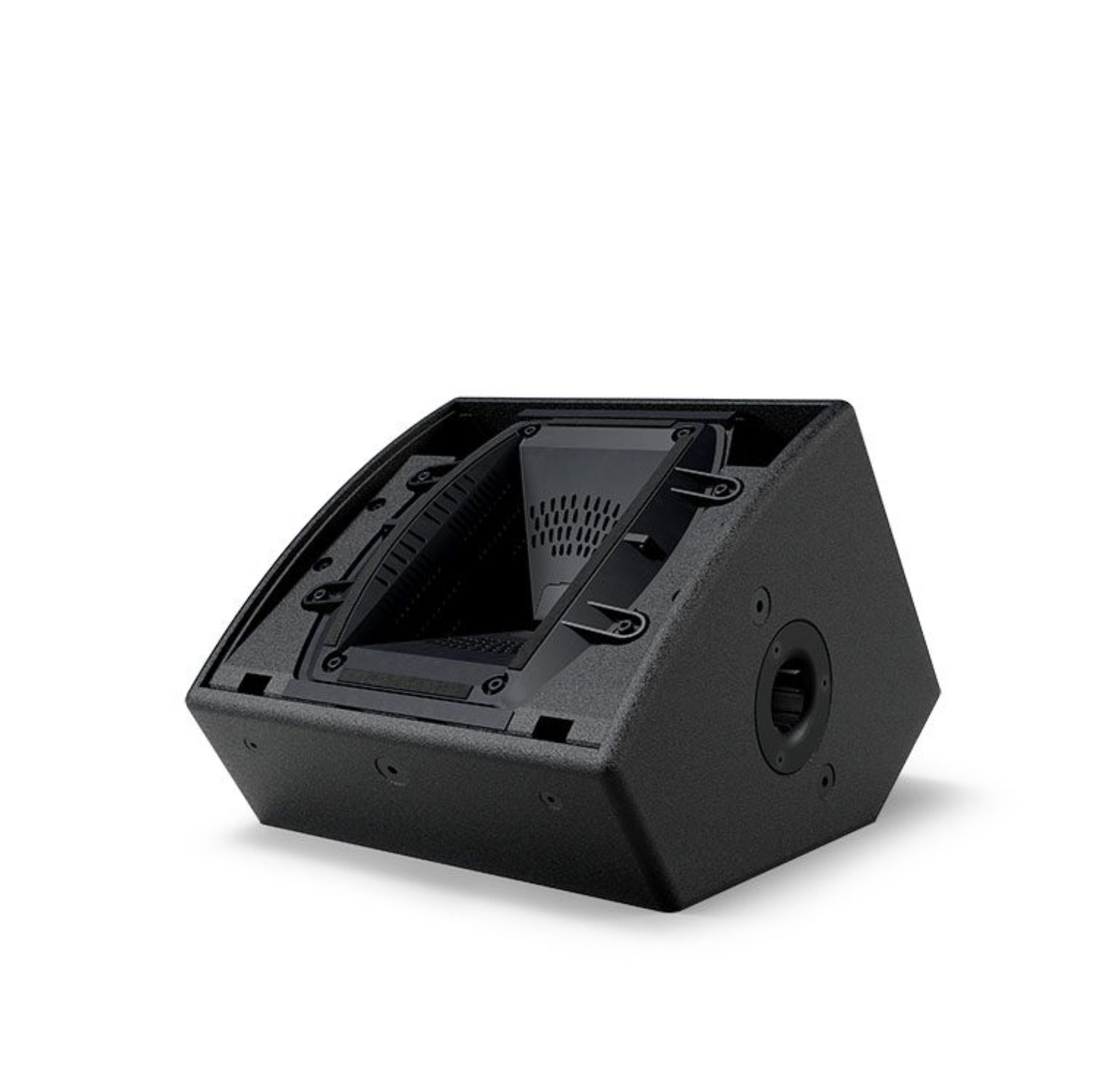

At the heart of the AMM108 is an 8-inch low-frequency transducer paired with a 1.7-inch compression driver—featuring a shared-magnet coaxial design that unites both drivers on the same axis. This intelligent arrangement delivers tight, phase-coherent sound reproduction and enhances vocal clarity across the board. With a maximum peak output of 128 dB SPL, it projects crisp, full-range audio to both performers and audiences—ideal for medium-throw scenarios.

The speaker handles continuous power at 150 W (RMS) and can accommodate peaks up to 2400 W, offering both reliability and reserve power when the performance demands it. Its frequency response extends from 75 Hz to 20 kHz at –10 dB, with a tighter ±3 dB response from 88 Hz to 17 kHz, ensuring accurate musical representation with deep lows, articulate mids, and smooth highs.

---

⚙️ Engineered for Consistency & Coverage

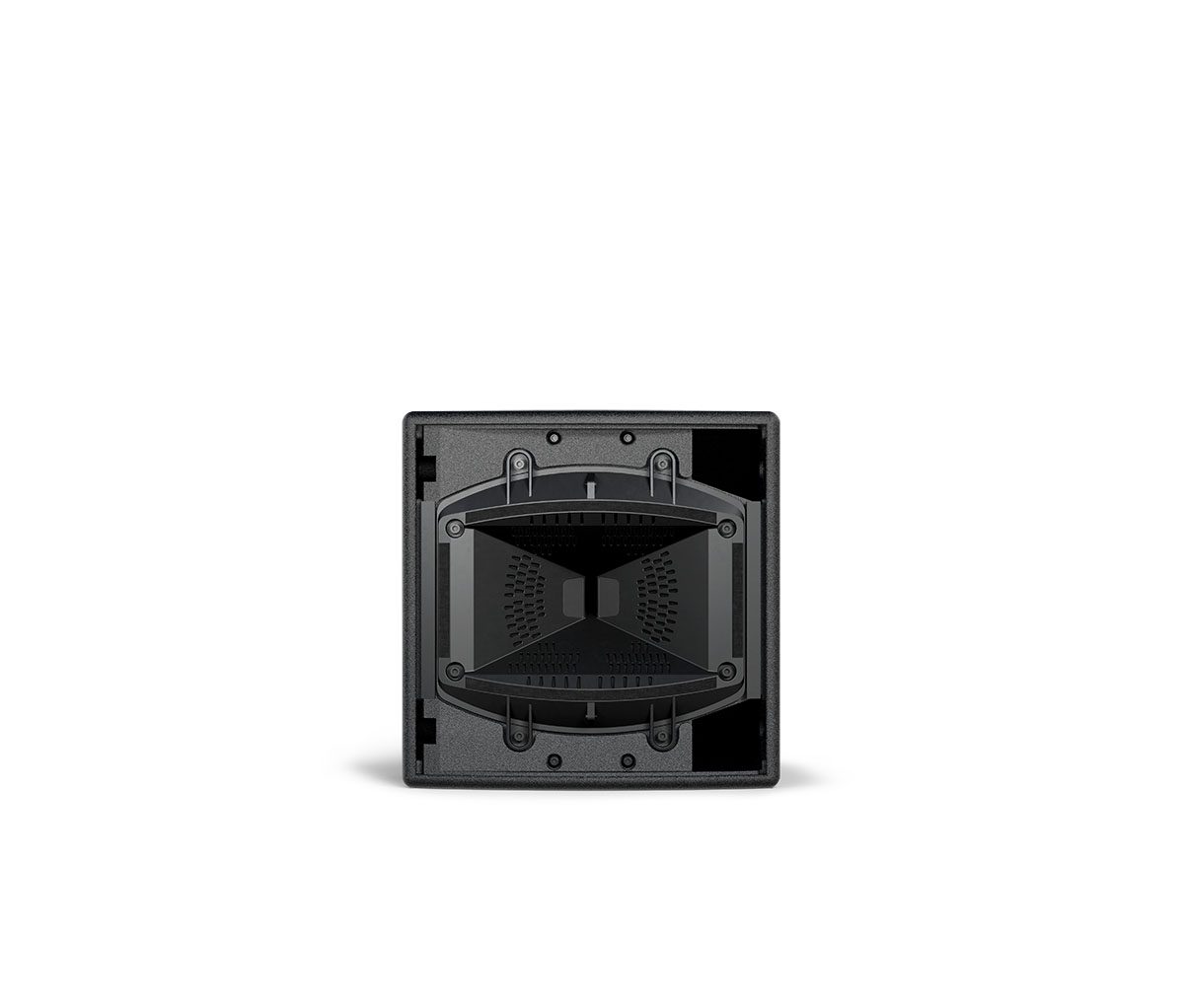

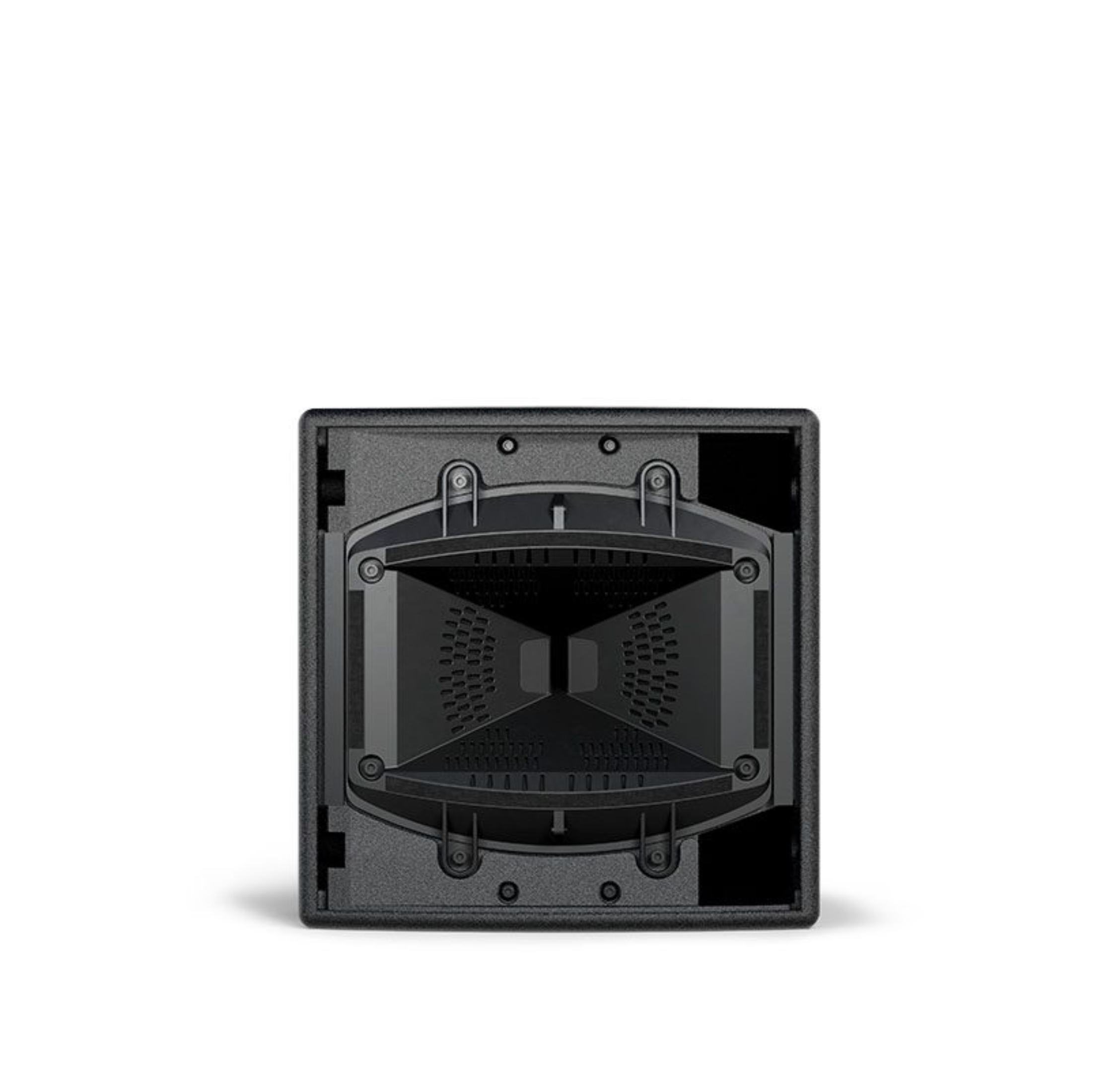

One of the defining features of the AMM108 is Bose’s Beamwidth Matching Waveguide—a proprietary technology that aligns the dispersion patterns of both low and high frequencies through the crossover region. The result is remarkably consistent tonal balance across the 110° horizontal by 60° vertical coverage area, even when the speaker is rotated between vertical and horizontal orientations. Simply rotate the cabinet—no tools needed—to shift coverage patterns as required.

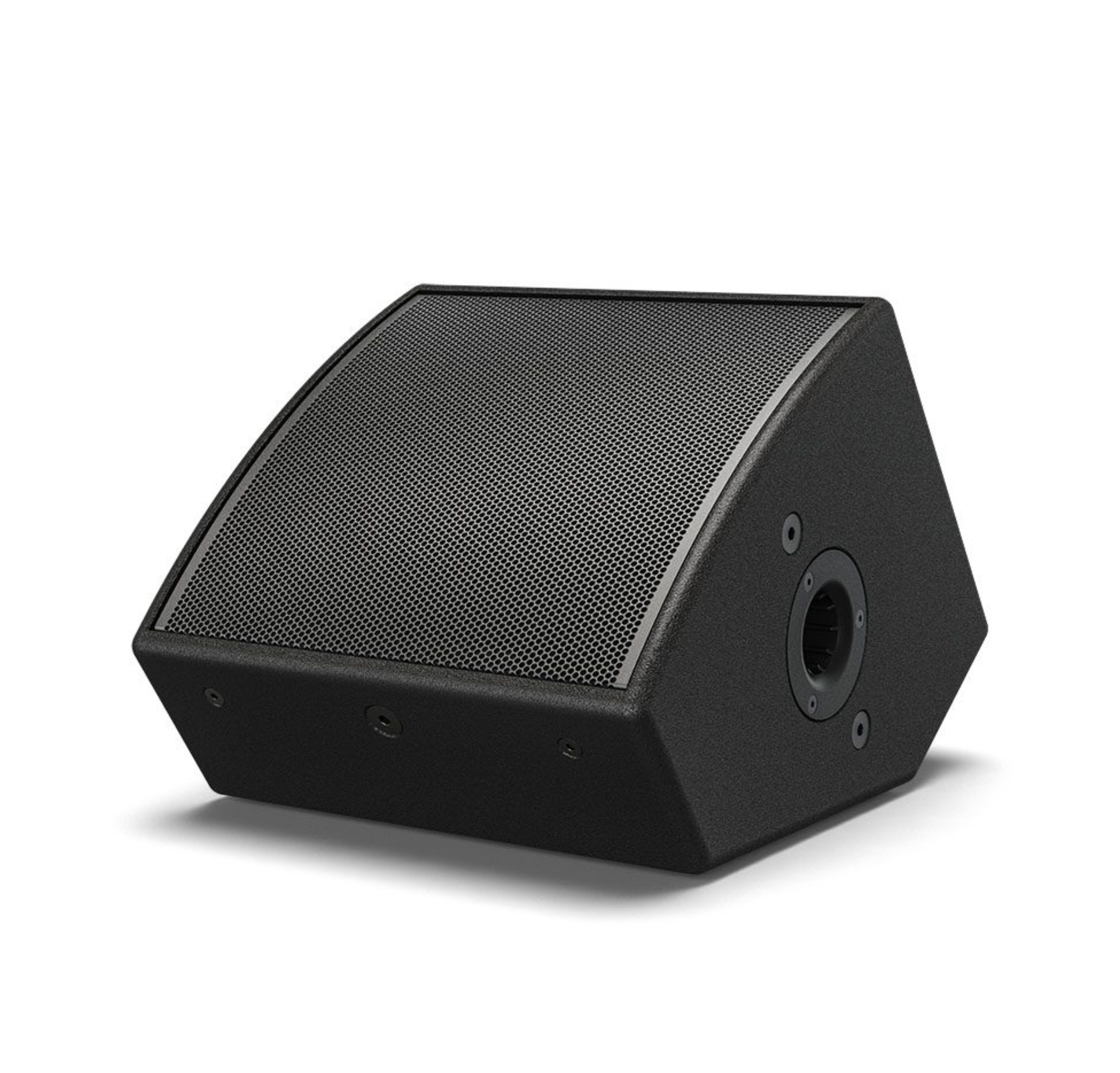

The multi-position layout and wide coverage make the AMM108 suitable for virtually any role, from floor monitor angled at 35° to audience-facing mains or fills—streamlining setup and providing acoustic versatility in a single unit.

---

🛠️ Flexible Design & Effortless Setup

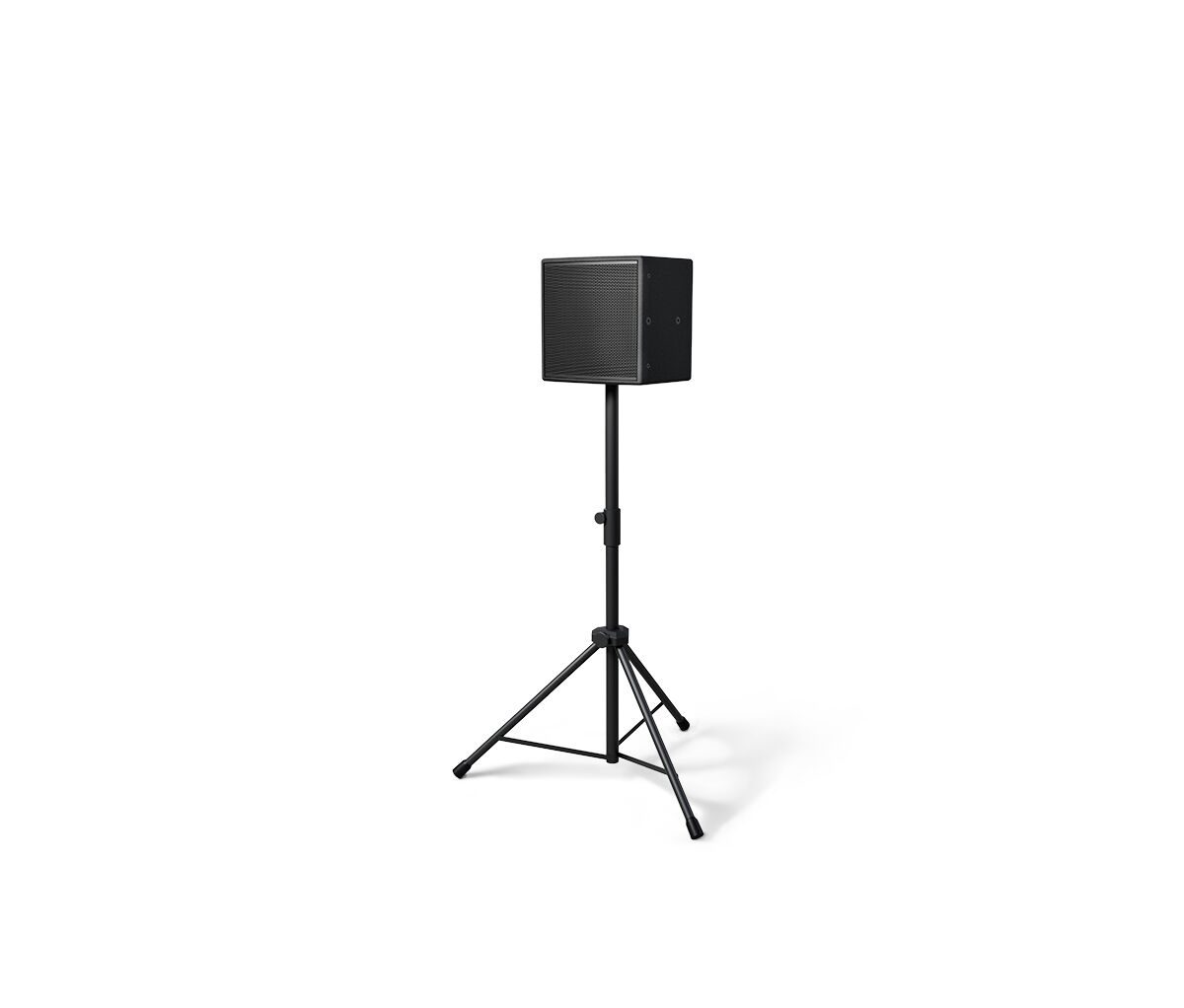

Carrying just 13 kg (28.8 lb), the AMM108 features an ergonomically positioned handle and a robust Baltic birch plywood enclosure with a durable black polyurethane finish. It includes a built-in 35 mm pole-mount cup for elevated setups and multiple alignment points (4 × M8 and 6 × M10 threaded inserts) for mounting systems such as U-brackets, suspension kits, or tilt mechanisms—making it equally at home on-stage, in a ceiling, or on a truss.

For permanent installations, matching voicing with Bose’s AM array modules and AMU utility loudspeakers means system designers can seamlessly integrate the AMM108 into larger setups without re-EQ’ing between models. Chain multiple units via dual Neutrik NL4 connectors with through-parallel ports for convenient audio routing.

---

🔌 Technical Specifications

• Drivers: 8″ woofer + 1.7″ compression driver (coaxial)

• Peak SPL: 128 dB

• Continuous Power Handling: 150 W RMS

• Peak Power Handling: 2400 W

• Frequency Range (–10 dB): 75 Hz – 20 kHz

• Frequency Range (±3 dB): 88 Hz – 17 kHz

• Sensitivity: 94 dB SPL @ 1 W/1 m

• Nominal Impedance: 8 Ω

• Coverage Pattern: 110° H × 60° V

• Tilt Angle: 35° (monitor use)

• Cabinet: Baltic birch plywood, black polyurethane

• Grille: Powder-coated steel

• Ingress Protection: IP43 (front-of-house)

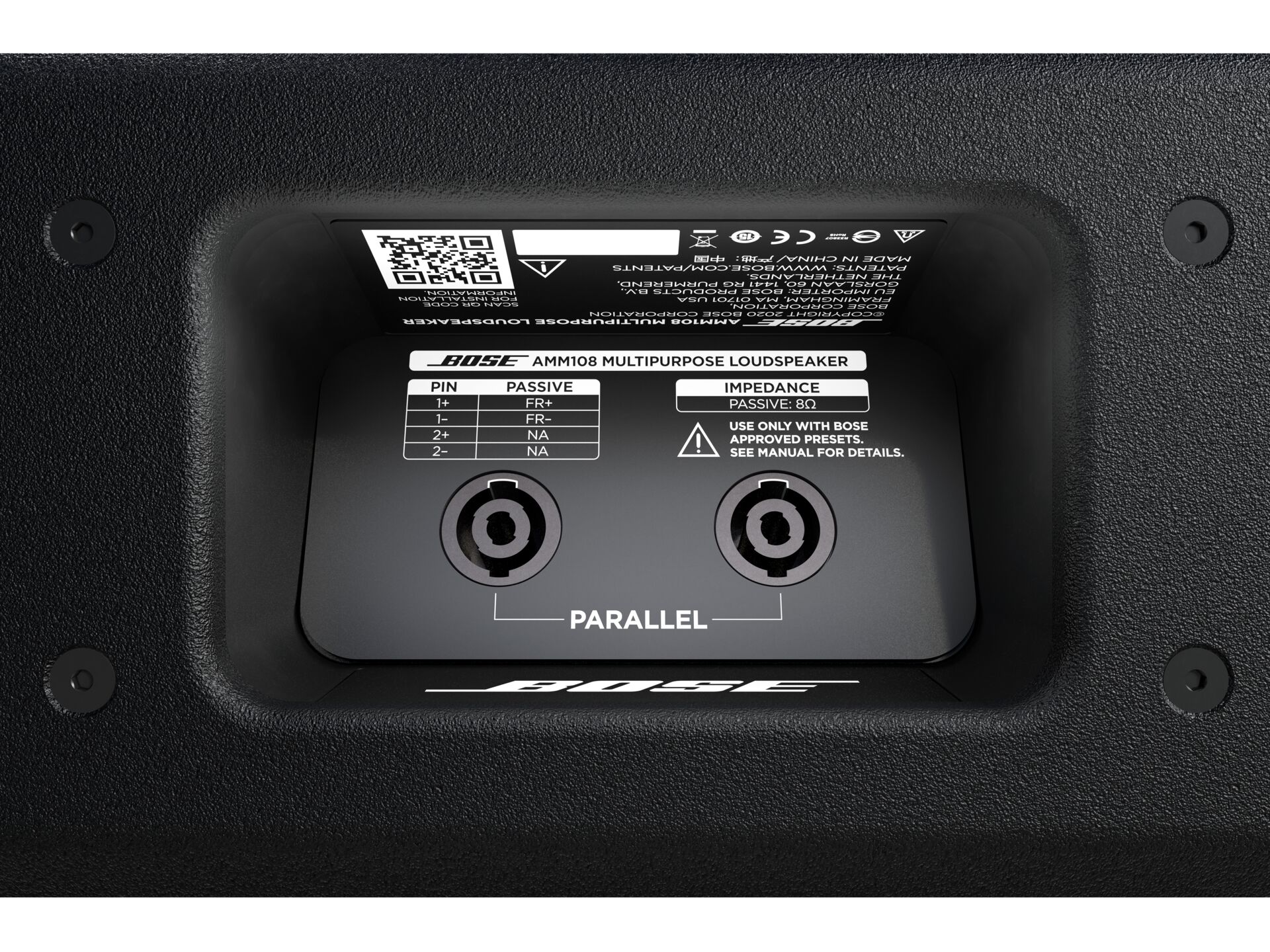

• Connectors: 2 × Neutrik NL4 with parallel output

• Mounting Options: 35 mm pole cup, M8/M10 inserts

• Dimensions: 318 × 318 × 268 mm (12.5″ cube)

• Weight: 13.04 kg (28.75 lb)

• Warranty: 5 years from Bose Professional

---

🔊 Why Professionals Trust the AMM108

1. Coaxial Design with Tight Phase Alignment

The innovative shared-magnet coaxial driver ensures unparalleled time coherence between frequency bands—ideal for speech intelligibility and musical accuracy.

2. Beamwidth Matching Waveguide

This signature technology smooths the transition between low and high frequencies, maintaining consistent coverage even off-axis—crucial for live venues and surround setups.

3. Multi-Role Versatility

Whether used as a front-of-house speaker, stage monitor, fill speaker, or installed speaker, the AMM108 adapts via easy rotation and mounting options.

4. Pro-Grade Integration

Specifically voiced to match Bose AM and AMU products, it integrates effortlessly into expanding systems. Increase low-end impact by pairing with the AMS115 subwoofer, extending frequency response down to 35 Hz with seamless tonal blending.

5. Build Quality Meets Portability

Engineered for durability and portability, the Baltic birch enclosure resists wear while ergonomic features—like handles and light weight—simplify transport and setup.

---

💼 Ideal Use-Cases

• Live Performances: Crisp, authoritative sound and stage monitor placement for singers and acoustic musicians.

• Corporate/Auditorium Installations: Even coverage and vocal clarity make it perfect for presentations.

• Houses of Worship: Discreet profile and wingless coverage ensure seamless integration into sanctuaries.

• Portable PA Systems: Ease of transport, pole-mounting, and rugged builds mean setups come together fast.

• Modular Sound Systems: Mix and match with AM/AMU modules for tours or venue upgrades to avoid re-calibrating audio profiles.

---

✅ Advantages at a Glance
