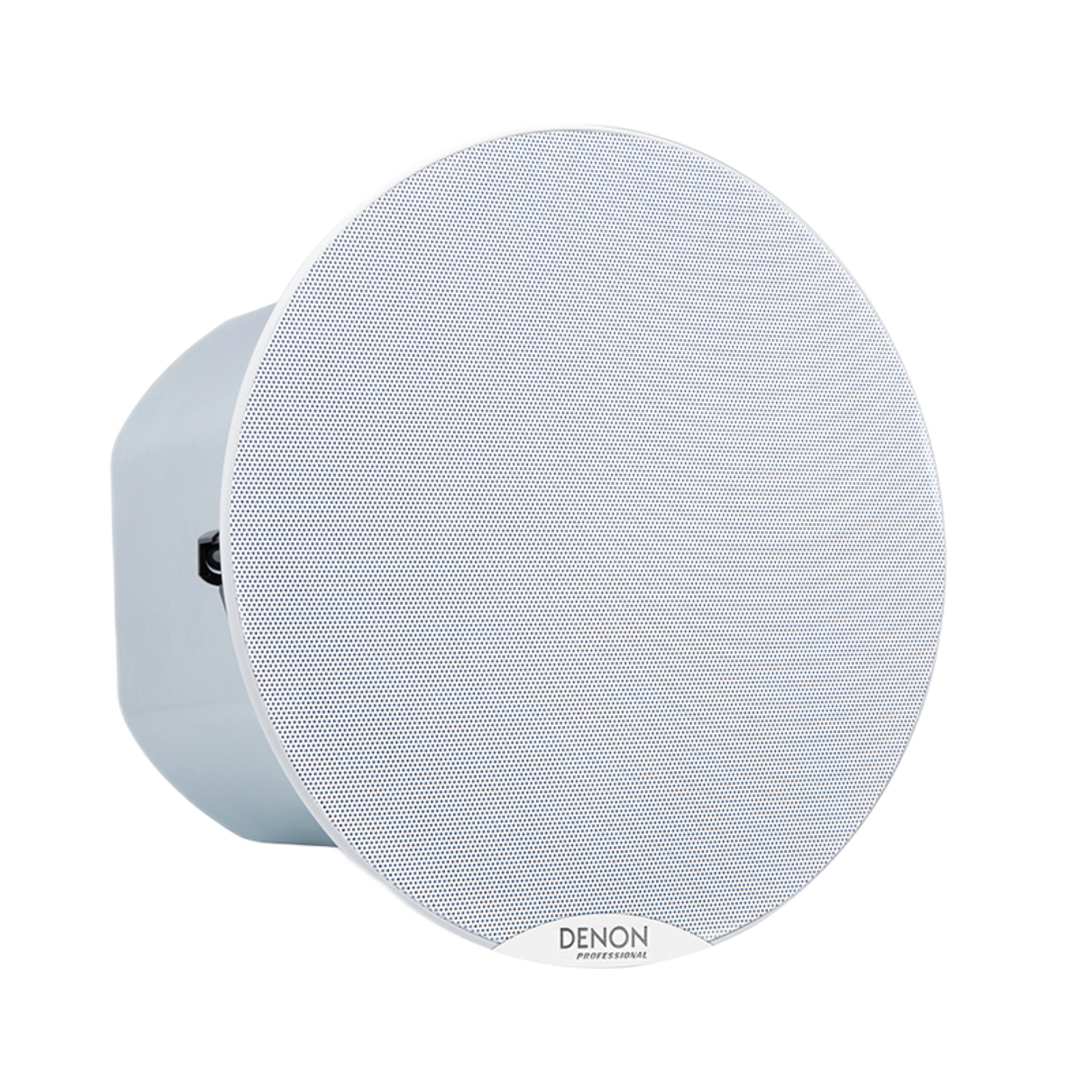

Denon DN-108S – 8″ Ceiling Speaker 80W RMS



Premium In-Ceiling Audio for Commercial and Architectural Spaces

The Denon DN-108S is a professional-grade 8″ 2-way coaxial ceiling speaker built for powerful, full-range audio in commercial, corporate, and multi-zone residential environments. Designed for seamless integration into drop ceilings or drywall, it delivers clean, articulate sound with broad dispersion, making it ideal for background music, paging systems, and immersive distributed audio setups.

Whether you’re outfitting a restaurant, hotel lobby, boardroom, or upscale retail environment, the DN-108S combines performance, durability, and ease of installation—bringing Denon’s trusted sonic quality to your ceiling.

---

🔊 Clear, Wide, and Balanced Sound

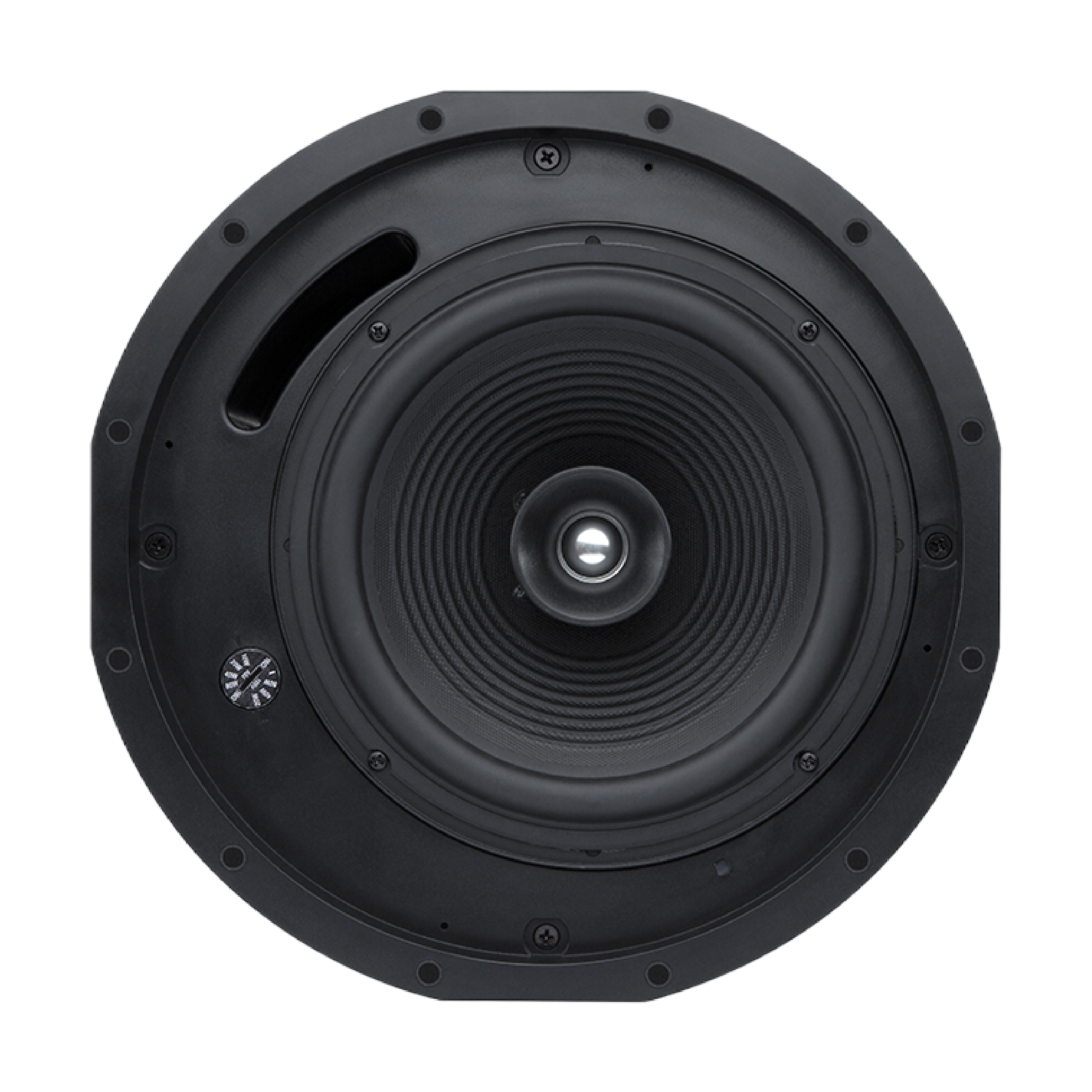

At the core of the DN-108S is a 2-way coaxial design with an 8″ polypropylene woofer and 1″ silk-dome tweeter. This pairing ensures smooth frequency response with strong low-end presence and detailed highs—perfect for music playback or speech applications.

The speaker’s conical 115° coverage pattern provides wide sound dispersion, allowing fewer speakers to cover larger areas evenly. It’s a go-to choice for installers who want powerful, intelligible sound without hot spots or dead zones.

---

🔧 Flexible System Integration with 70V/100V Support

The DN-108S includes an integrated multi-tap transformer for 70V/100V distributed audio systems, supporting long cable runs and multiple speaker setups. Tap settings include 2W, 4W, 8W, 16W, 32W, and 64W, offering flexible control over volume and power usage in large commercial installations.

It also supports 8-ohm bypass for standard low-impedance systems, making it compatible with residential audio amps or premium AV receivers.

---

🛠️ Rugged Design, Easy Installation

Built for commercial use, the DN-108S features a sealed, ported metal back can that enhances bass response while protecting the internal components. Its UL 1480 certification ensures it meets commercial building safety standards, while the steel enclosure and fire-retardant ABS baffle provide long-lasting durability.

The speaker includes a tile bridge, C-ring, and cutout template for easy installation into T-bar ceilings or drywall, ensuring a professional finish every time.

---

📦 Key Features of the Denon DN-108S

• 🔊 8″ 2-Way Coaxial Speaker with 1″ silk dome tweeter

• 📐 115° Conical Dispersion Pattern for wide audio coverage

• 🔌 70V/100V Multi-Tap Transformer (2W to 64W) + 8Ω bypass

• 🛠️ UL1480 Safety Certified, ported back can for enhanced low-end

• 🧱 Includes tile bridge, C-ring, and mounting accessories

• 🏢 Designed for retail, hospitality, office, and residential installs

---

🏬 Ideal For:

• Restaurants, bars, and cafes

• Office buildings and conference rooms

• Hotels, spas, and lounges

• Schools and public venues

• Whole-home audio systems

---

✅ Why Choose the Denon DN-108S?

• ✔️ Exceptional sound quality with wide coverage

• ✔️ Easy integration into both 70V/100V and 8-ohm systems

• ✔️ UL-certified and safe for commercial use

• ✔️ Rugged and reliable for long-term installations

• ✔️ All-in-one hardware package for quick mounting

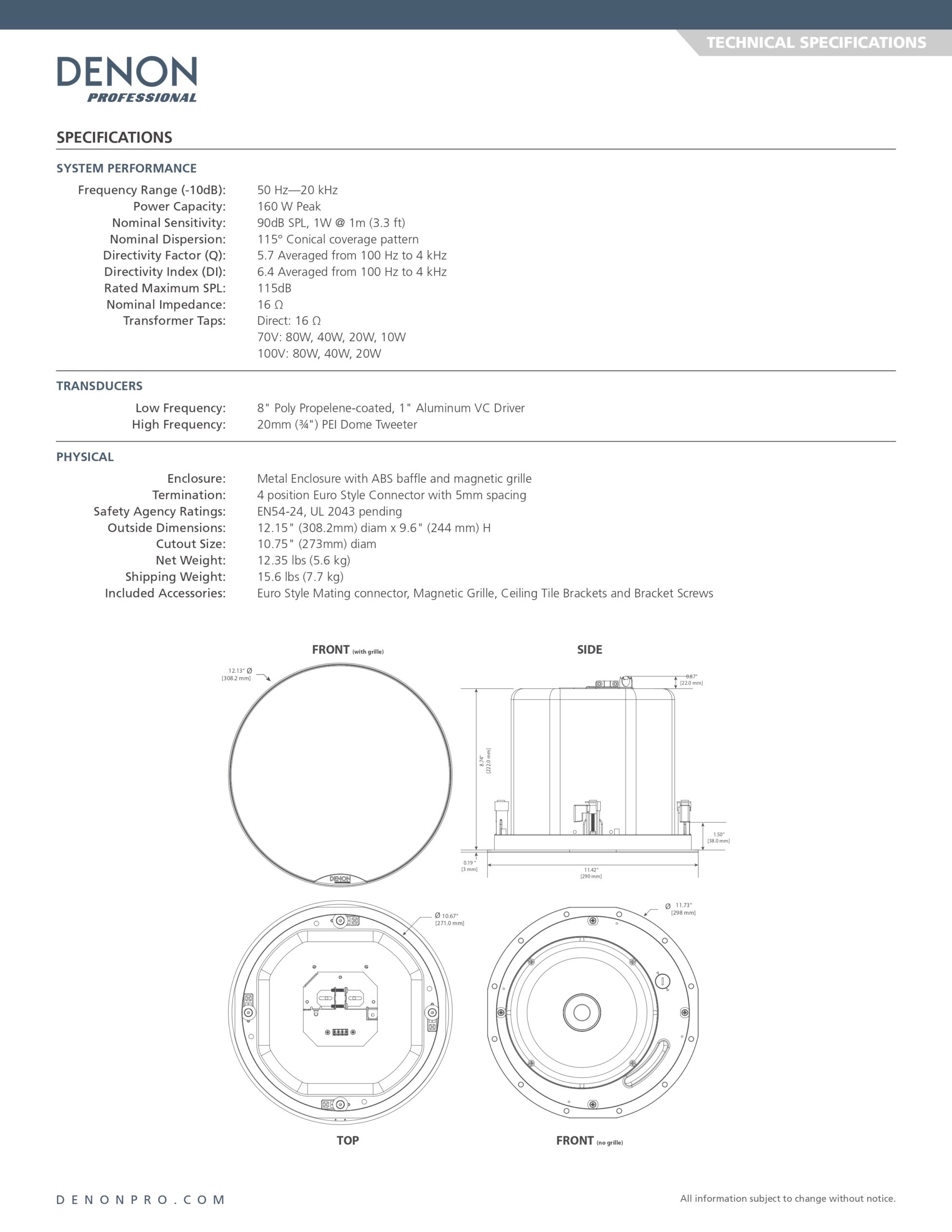

Speaker Type:
2-Way Coaxial Ceiling Loudspeaker (Flush-Mount)

Woofer:
8″ (203 mm) polypropylene cone with rubber surround

Tweeter:
1″ (25 mm) silk dome tweeter (coaxially mounted)

Frequency Response:

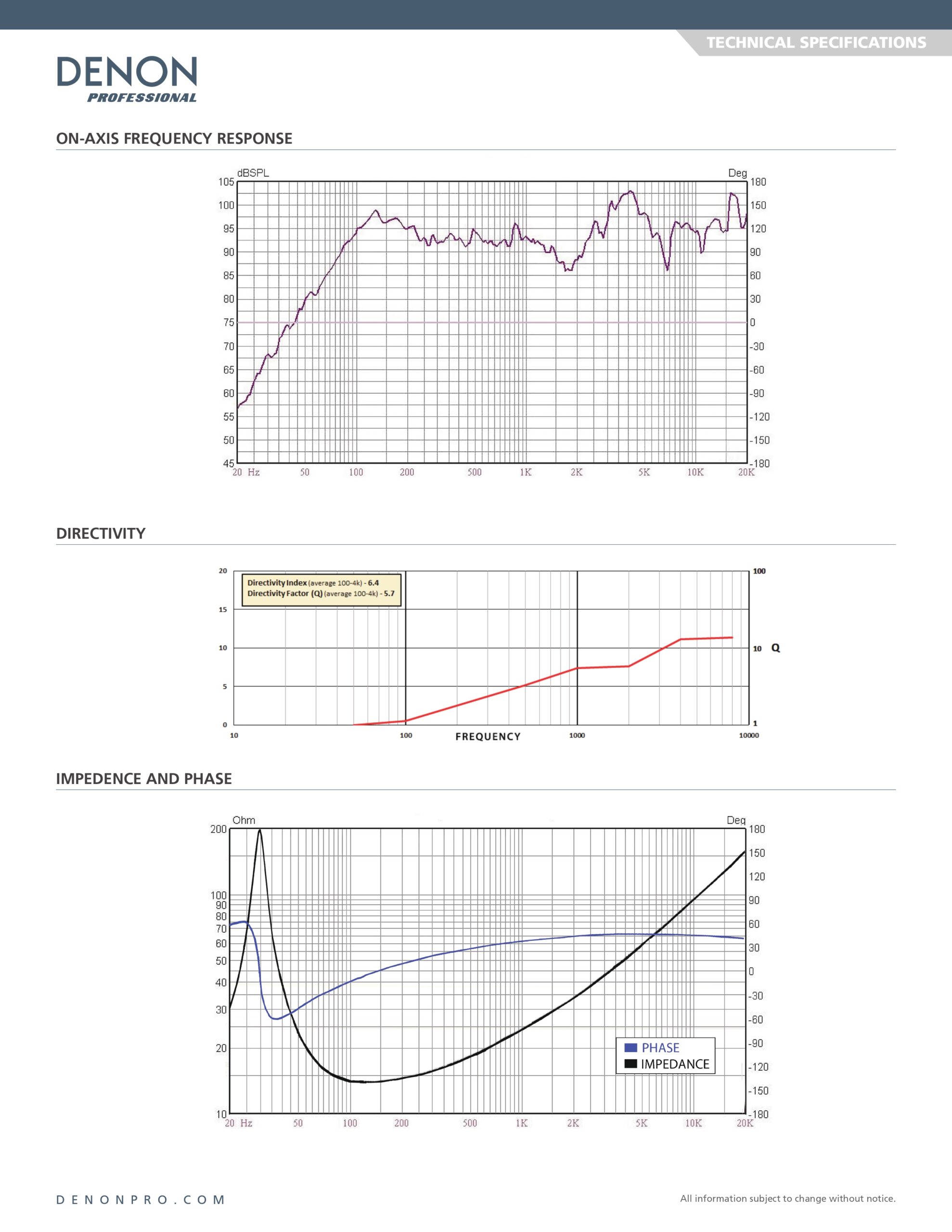

50 Hz – 20 kHz (±3 dB)

Sensitivity (1W/1m):
89 dB SPL

Maximum SPL:
110 dB (peak at full power, 1m)

Nominal Dispersion:

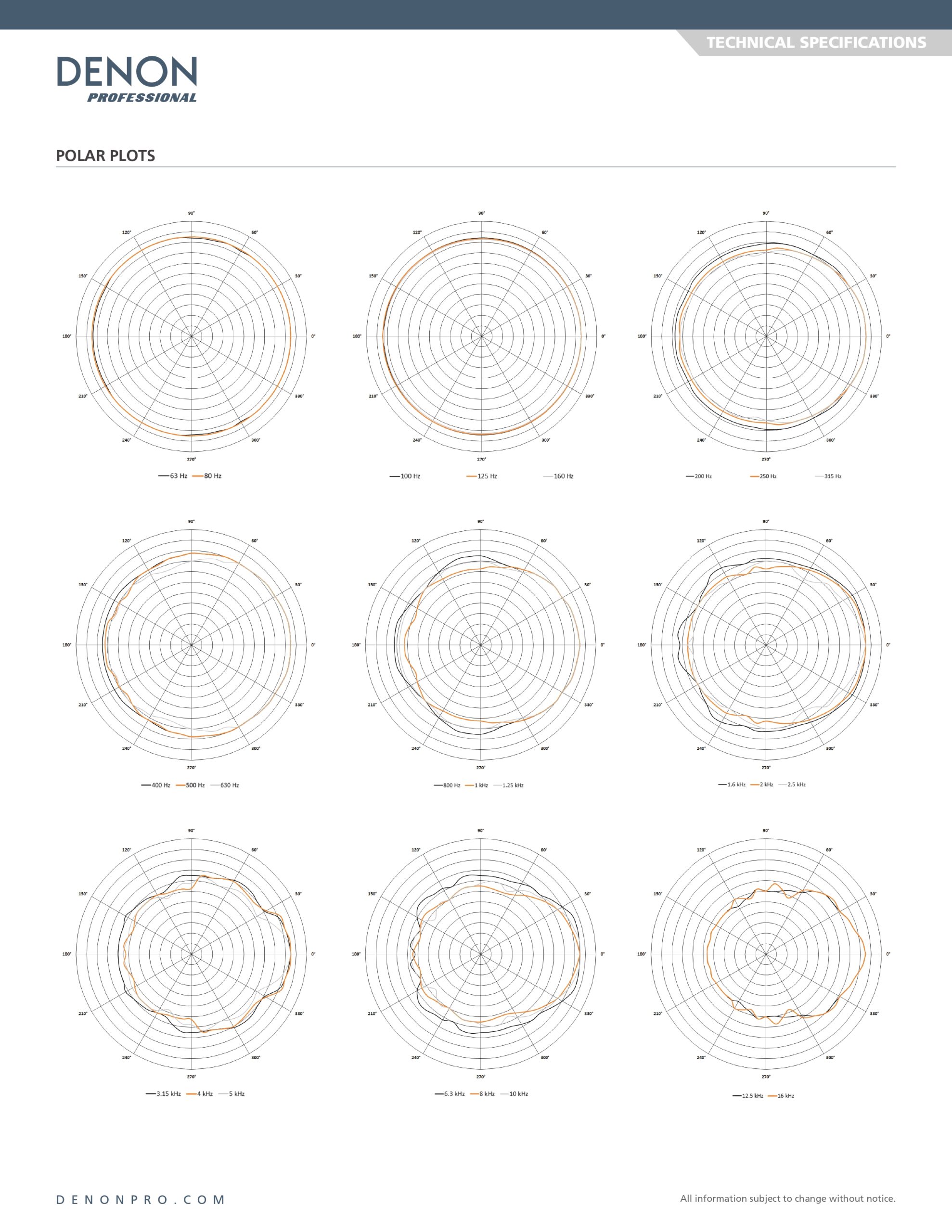

115° conical

Power Handling (RMS):
64W (Continuous Program Power: 128W)

Transformer Tap Settings:

• 70V: 2W / 4W / 8W / 16W / 32W / 64W

• 100V: 4W / 8W / 16W / 32W / 64W

• 8Ω bypass option available

Input Connector:
4-position terminal block (Phoenix-style) with loop-through capability

Enclosure Type:

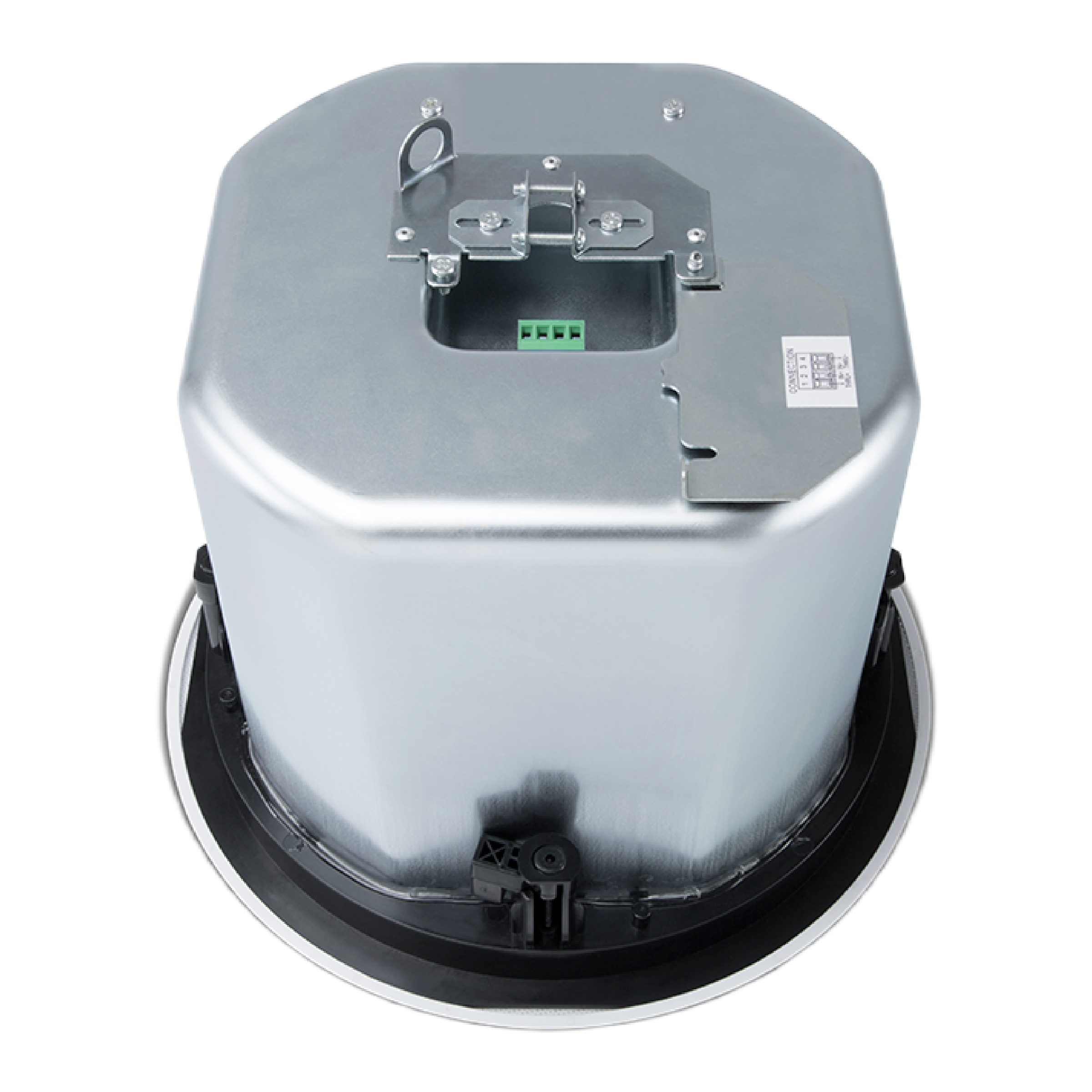

Sealed metal backcan with ported design for enhanced bass

Material:

• Enclosure: Steel

• Baffle: Fire-rated ABS plastic

• Grill: Powder-coated steel (white, paintable)

Installation Hardware Included:

• Tile bridge

• C-ring

• Cutout template

• Mounting screws and accessories

Mounting Depth:
215 mm (8.5 in)

Cutout Diameter:
260 mm (10.2 in)

Overall Diameter (with grill):
295 mm (11.6 in)

Net Weight:
6.3 kg (13.9 lbs)

Certifications:

• UL 1480

• CE, RoHS

Color:
White (paintable grill)

---

🏁 Conclusion

The Denon DN-108S is the ideal ceiling speaker for professionals who demand clarity, durability, and flexibility. From soft background music to clear vocal reproduction, it delivers balanced performance across a wide range of environments. Its intelligent design, safety certification, and easy install process make it a preferred choice for audio integrators and contractors worldwide.

Whether you’re designing a smart home, outfitting a retail chain, or upgrading your business’s audio system, the DN-108S brings Denon’s heritage of sound excellence into a discreet, ceiling-mounted form.

---
