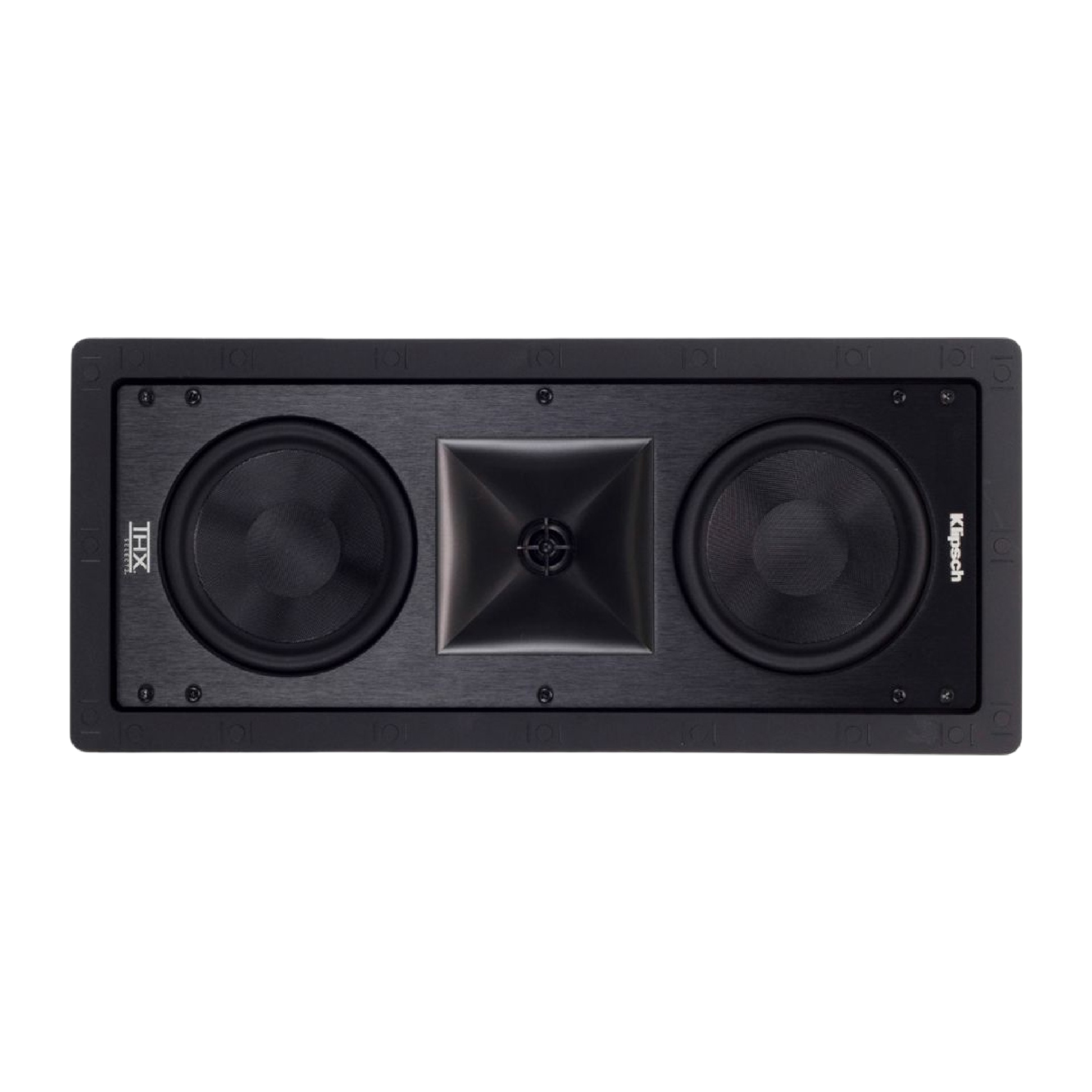

KlipschPRO-6502-L-THX In-Wall Speaker



Klipsch PRO-6502-L-THX – THX Select2 Certified In-Wall Speaker for Premium Home Theater

The Klipsch PRO-6502-L-THX is a high-performance in-wall speaker designed to deliver cinema-level sound in medium-sized home theaters. Part of Klipsch’s renowned Professional Series, this speaker is THX Select2 Certified, meaning it’s optimized for spaces up to 2,000 cubic feet. It offers powerful, dynamic sound reproduction in a discreet, space-saving in-wall format—ideal for front left, center, or right speaker positions.

Featuring dual 5.25″ fiberglass cone woofers and a 1″ titanium compression driver mounted to a 90° x 90° Tractrix® Horn, the PRO-6502-L-THX ensures clear dialogue, immersive imaging, and high output with minimal distortion. Whether you’re watching movies or enjoying multi-channel music, this speaker is engineered to handle it all with authority and precision.

If you’re seeking premium audio performance without sacrificing valuable floor space, the Klipsch PRO-6502-L-THX is the perfect in-wall solution for high-end home cinema systems.

---

🎯 Key Features

• THX Select2 Certification
  Meets rigorous THX standards for audio quality and consistency in rooms up to 2,000 cubic feet.

• 1” Titanium Compression Driver with 90° x 90° Tractrix® Horn
  Offers highly efficient, directional high frequencies with controlled dispersion and reduced distortion.

• Dual 5.25” Fiberglass Woofers
  Rigid and lightweight cones deliver tight, punchy bass and detailed midrange.

• Three-Driver, 2-Way Design
  Provides excellent frequency response and imaging in a compact in-wall form factor.

• Discreet In-Wall Design
  Flush-mountable, with a paintable, magnetic grille that blends seamlessly with any wall surface.

• Ideal for L/C/R Configurations
  Can be used for front left, center, or right channels in home theaters or stereo applications.

• High Sensitivity
  92 dB efficiency allows you to achieve high output with less amplifier power.

---

📊 Technical Specifications

• Certification: THX Select2

• Speaker Type: 2-Way In-Wall

• Tweeter: 1″ Titanium Compression Driver on 90° x 90° Tractrix® Horn

• Woofers: Dual 5.25″ Fiberglass Cone Woofers

• Frequency Response: 46Hz – 20kHz ±3dB

• Sensitivity: 92 dB @ 2.83V / 1m

• Nominal Impedance: 8 Ohms Compatible

• Power Handling: 100W RMS / 400W Peak

• Recommended Amplifier Power: 100W – 150W

• Crossover Frequency: 1500 Hz

• Mounting Depth: 3.75″ (95 mm)

• Cutout Dimensions: 16.5″ H × 6.75″ W (41.9 cm × 17.1 cm)

• Grille Dimensions: 17.75″ H × 8.25″ W (45.1 cm × 21 cm)

• Weight: 9.6 lbs (4.4 kg)

---

🔊 High-Impact Sound, Minimal Footprint

Despite its in-wall design, the PRO-6502-L-THX delivers a powerful and full-bodied sound thanks to its dual-woofer layout and compression driver technology. The use of a Tractrix® Horn—a Klipsch signature—improves efficiency and focus, meaning you hear more detail at lower volumes and get stunning impact at high volumes.

This speaker is ideal for voice clarity, sound localization, and immersive audio staging, making it a perfect choice for the front stage in any THX Select2 certified home theater.

---

🧱 Seamless Integration

The low-profile design of the PRO-6502-L-THX ensures it fits neatly into any standard 2×4 wall cavity. The magnetic grille is paintable, giving installers and homeowners the ability to blend the speaker into any wall surface for a clean, architectural look.

It’s also compatible with Klipsch’s pre-construction brackets and back boxes, ensuring precise placement and improved bass response in custom installations.

---

📍 Applications

The Klipsch PRO-6502-L-THX is engineered for:

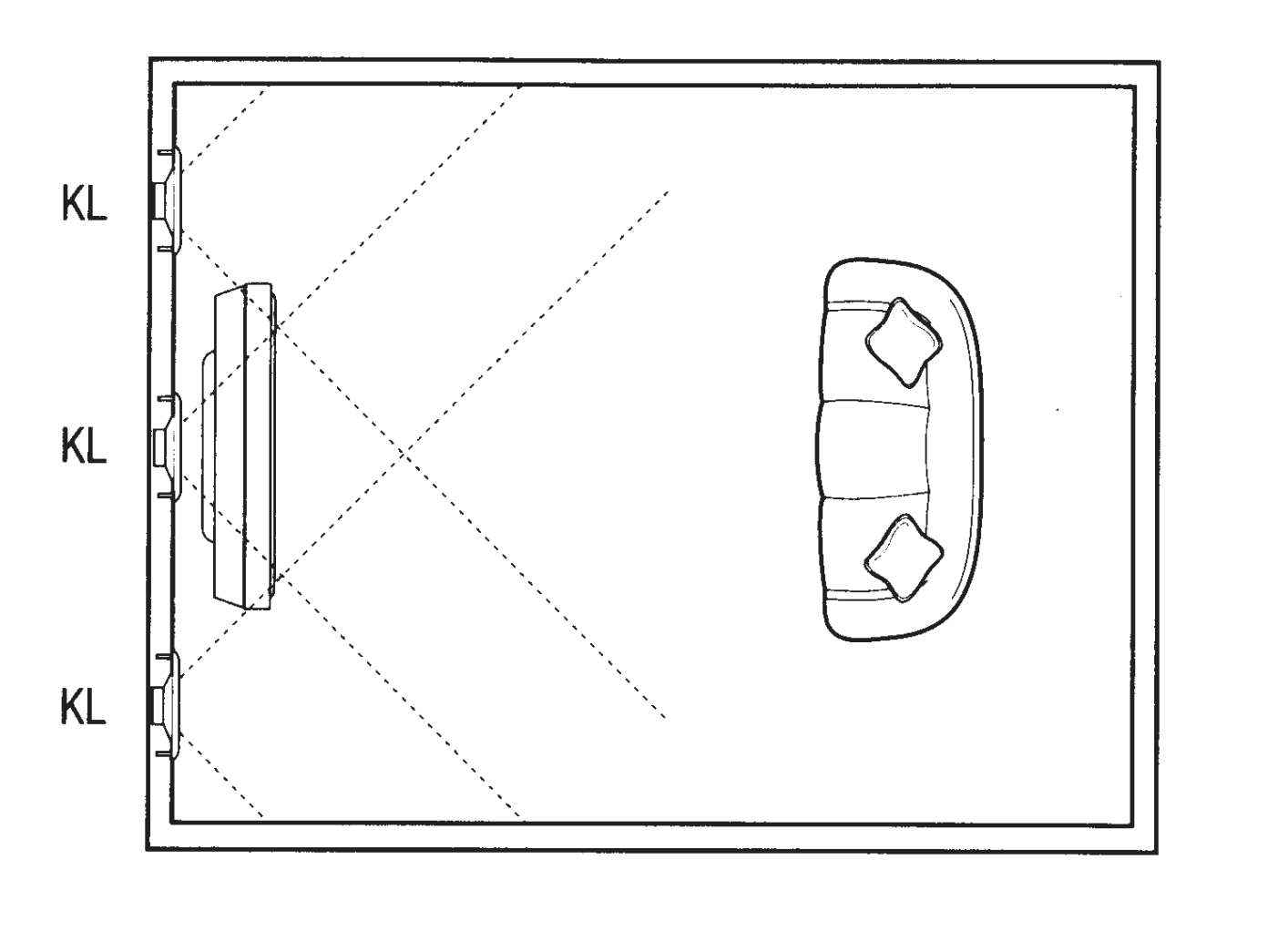

• Front Left/Center/Right speaker positions in dedicated home theaters

• Media rooms and multi-purpose entertainment spaces

• Luxury homes where aesthetics matter as much as performance

• Multi-channel surround systems using in-wall or hybrid speaker configurations

Its Select2 certification ensures a balanced, reference-level sound at cinematic volumes without fatigue—perfect for films, TV, gaming, and more.

---

✅ Why Choose the Klipsch PRO-6502-L-THX?

• THX Select2 Certification for accurate and controlled cinema sound in medium-sized rooms

• Premium Driver Materials including fiberglass woofers and titanium compression tweeters

• Horn-Loaded Efficiency for high output and low distortion

• Easy, Clean Installation with paintable grille and slim 3.75” mounting depth

• Trusted Klipsch Engineering with over 75 years of loudspeaker innovation

---

🎬 Final Thoughts

The Klipsch PRO-6502-L-THX is a standout choice for homeowners and integrators who want high-end performance and clean design. With its THX Select2 certification, horn-loaded tweeter, and dual 5.25″ woofers, it offers dynamic, lifelike sound from behind the wall—no floor speakers needed. Whether you’re designing a new theater or upgrading your front stage, this speaker is built to impress.
