Yamaha CBR10 Passive PA Speaker – 10″ Woofer, 700W Peak Power, Compact & Lightweight Design, Ideal for Portable Sound and Stage Monitoring

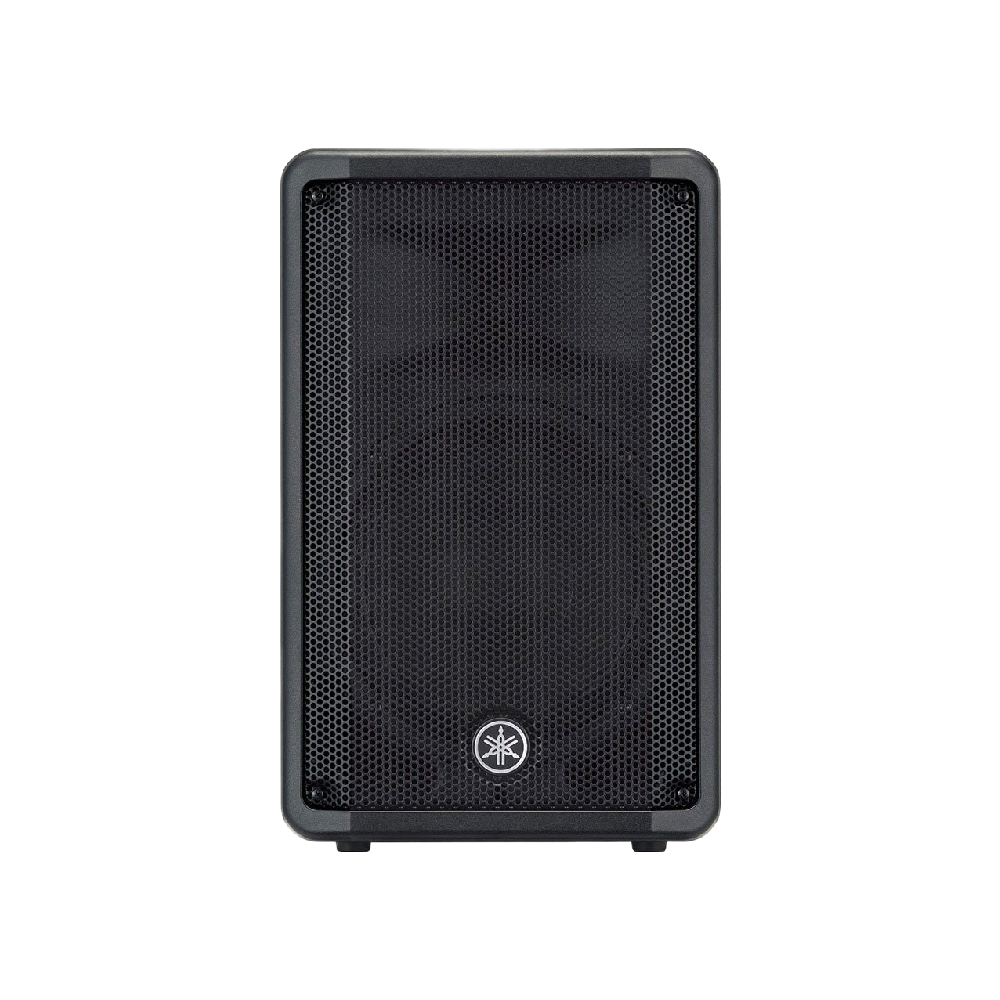

Yamaha CBR10 10-Inch Passive Loudspeaker – Compact Size, Full-Range Sound

The Yamaha CBR10 is a powerful, ultra-portable 2-way passive loudspeaker engineered to deliver professional sound performance in a compact and lightweight design. Ideal for musicians, public speakers, DJs, and installers, the CBR10 offers exceptional clarity, balanced output, and road-ready durability—all in a space-saving cabinet.

---

Clear, Dynamic Sound in a Compact Format

Despite its smaller size, the Yamaha CBR10 doesn’t compromise on sound. It features a 10-inch low-frequency woofer with a 2-inch voice coil, paired with a 1-inch compression driver for crisp highs. This configuration delivers smooth midrange, tight bass, and clean high-end frequencies for music, vocals, and speech applications.

• Power Output: 175W RMS / 350W Program / 700W Peak

• Frequency Response: 50 Hz – 20 kHz (-10 dB)

• Sensitivity: 94 dB SPL (1W/1m)

• Maximum SPL: 123 dB Peak

• Impedance: 8 ohms

These specs make the CBR10 ideal for small to medium-sized venues, rehearsal spaces, and portable PA setups.

---

Wide Dispersion for Even Sound Coverage

The CBR10 is equipped with a 90° × 60° constant directivity horn, which helps distribute sound evenly across the audience. This ensures consistent audio quality whether the speaker is used as a main PA cabinet or a stage monitor. The design minimizes feedback and sound drop-offs, delivering clear, full-range audio to every corner of the room.

---

Rugged, Lightweight Design

Built for durability without adding unnecessary weight, the Yamaha CBR10 features a high-impact plastic cabinet that protects internal components from knocks, drops, and the wear and tear of regular transport. The enclosure is sleek, professional-looking, and easy to carry.

• Cabinet Material: Molded polypropylene

• Finish: Textured matte black

• Grille: Heavy-duty powder-coated steel

• Weight: 9.4 kg (20.7 lbs)

• Dimensions: 308 mm x 493 mm x 289 mm

Its compact profile makes it a favorite for touring professionals and mobile performers who require great sound without the bulk.

---

Flexible Mounting and Monitor Use

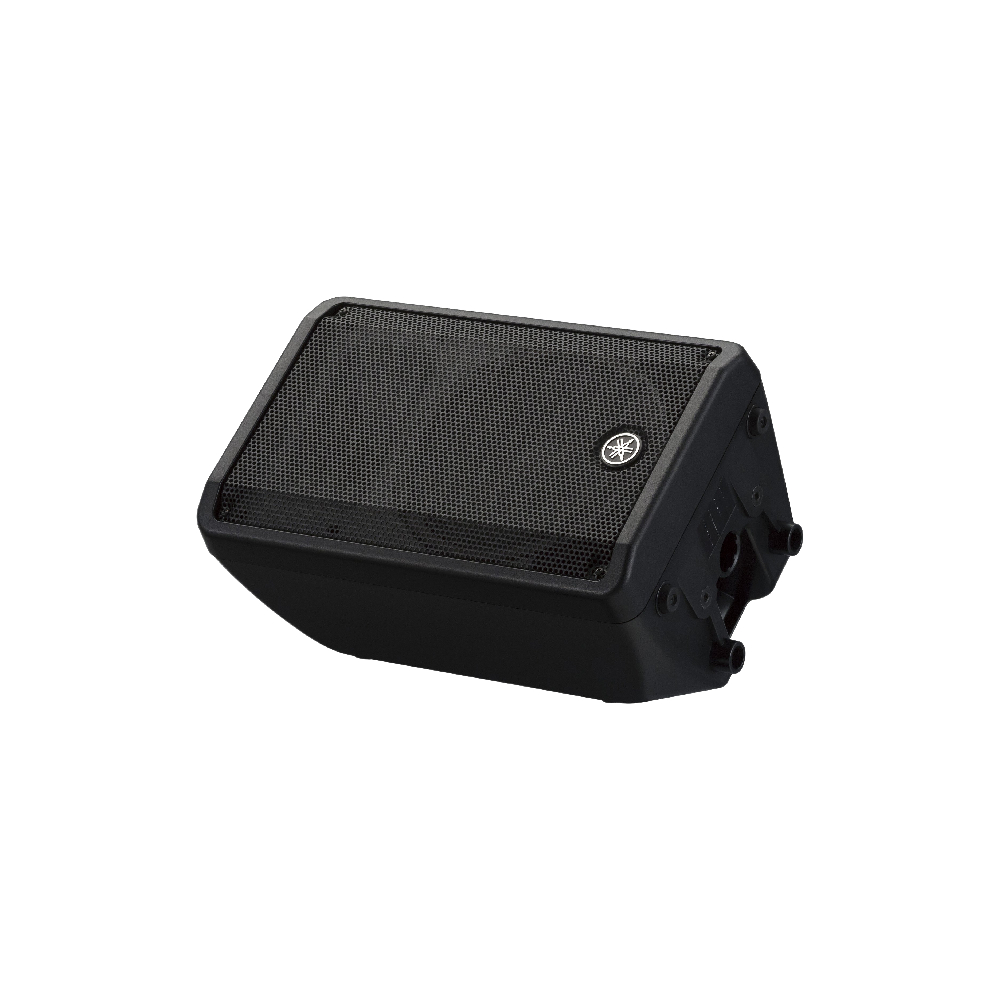

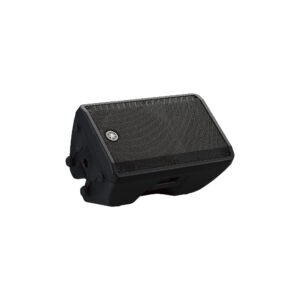

The CBR10 is designed with versatility in mind. It includes a 35 mm pole socket for mounting on standard speaker stands, making it easy to integrate into existing PA systems. With a 50° wedge angle, it also functions perfectly as a floor monitor.

In addition, M8 rigging points on the enclosure allow for safe and secure hanging or wall mounting, making it an excellent choice for fixed installations in classrooms, cafes, small theaters, or conference halls.

---

Reliable HF Protection and Connectivity

To ensure long-term performance, Yamaha has equipped the CBR10 with a built-in high-frequency driver protection circuit, safeguarding the compression driver from overload and preventing distortion or damage during high-volume use.

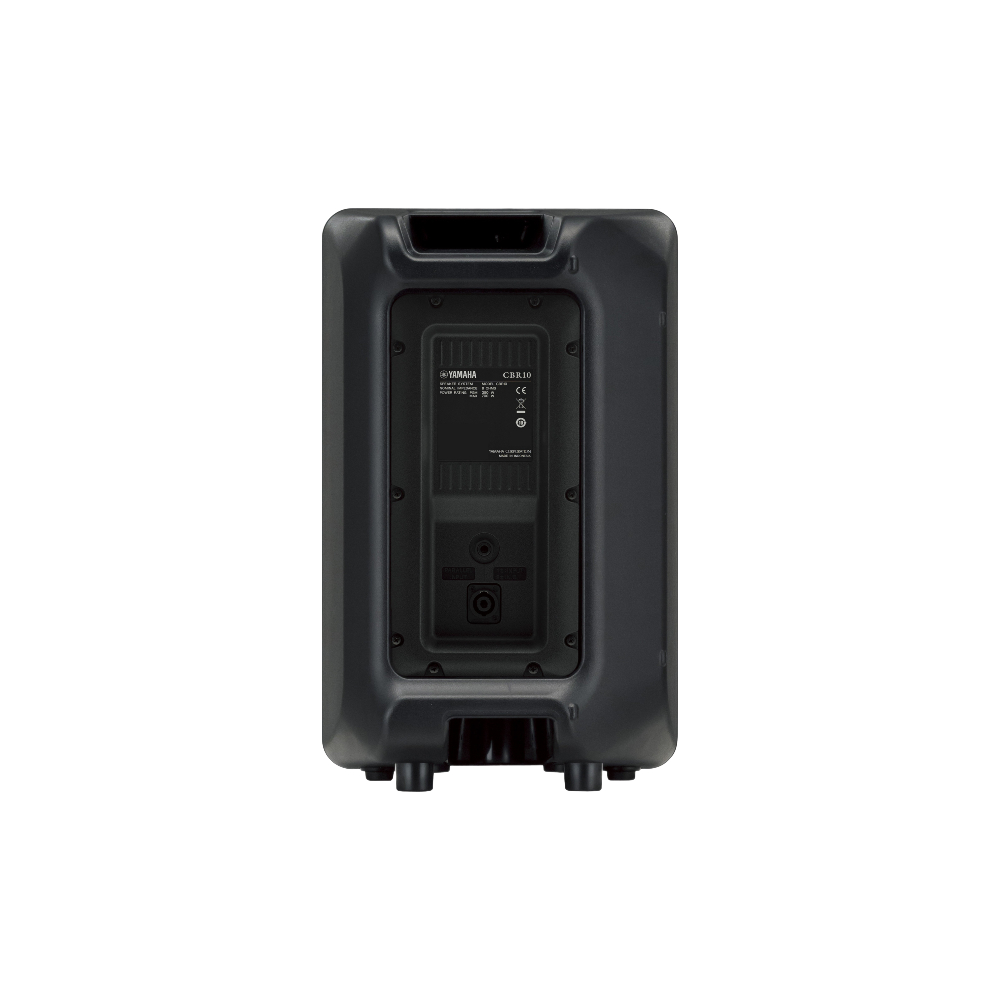

For connectivity, the speaker includes:

• 1 × Neutrik Speakon NL4MP connector

• 1 × 1/4″ phone jack

These options provide secure, high-quality signal connections with most professional amplifiers and audio equipment.

---

Ideal Use Cases

The Yamaha CBR10 is a highly versatile loudspeaker suitable for a wide range of professional and semi-professional applications, including:

• Portable PA systems for musicians, presenters, and DJs

• Stage monitors for live performers

• Installations in small venues, churches, gyms, or studios

• Karaoke or home sound setups with professional-grade audio

• Corporate or educational events needing reliable, speech-optimized output

Its size, performance, and flexibility make it a valuable addition to any audio setup.

---

Why Choose the Yamaha CBR10?

• Professional sound in a portable design

• Excellent coverage and output for small to mid-size venues

• Protective circuitry for long-lasting reliability

• Multiple mounting options for installation and live use

• Great value for DJs, bands, venues, and AV integrators

---

Final Verdict

The Yamaha CBR10 10-Inch Passive Loudspeaker is the perfect combination of compact size, powerful output, and road-ready durability. It’s an outstanding choice for anyone seeking a flexible speaker that delivers clean, full-range sound in a small footprint. Whether you’re setting up a mobile PA, upgrading your monitors, or installing sound in a small venue, the CBR10 delivers trusted Yamaha performance at an accessible price point.
