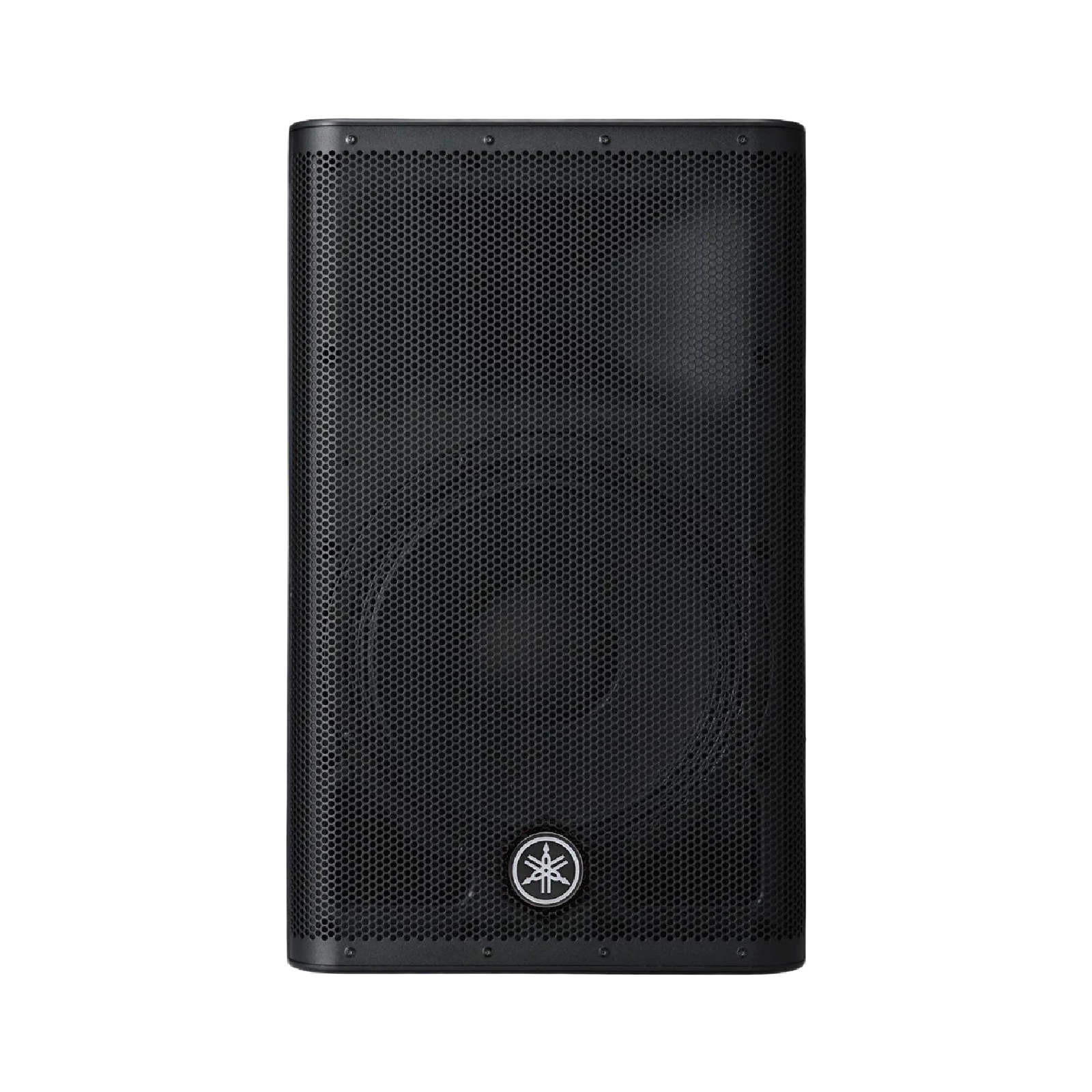

The Yamaha DXR8mkII powered speaker combines compact portability with powerful Class-D amplification, intelligent DSP, and stunning sound clarity. Designed for professionals who need premium audio performance in a smaller, lightweight enclosure, the DXR8mkII is ideal for live performers, mobile DJs, corporate AV setups, houses of worship, and installations where space is limited but sound quality cannot be compromised.

As part of Yamaha’s second-generation DXR mkII Series, the DXR8mkII offers improved output, an upgraded high-frequency driver, and advanced FIR-X tuning—delivering clean, detailed sound at high SPL levels with consistent coverage and rock-solid reliability.

---

Precision Components for Pristine Sound

The Yamaha DXR8mkII features a custom 8-inch low-frequency woofer and a newly designed 1.75-inch Neodymium compression driver. This upgraded HF driver, compared to the previous DXR8 model, provides enhanced resolution in the upper frequencies and greater detail in vocals, strings, and acoustic instruments.

The smaller 8-inch size makes the DXR8mkII the most portable model in the DXR line, while still maintaining impressive low-end presence and dynamic range. It’s a top choice for performers or presenters who want professional-grade sound in a compact footprint.

---

Advanced DSP with FIR-X Tuning and D-CONTOUR

Like all DXR mkII models, the DXR8mkII powered speaker is loaded with Yamaha’s most advanced DSP technology, ensuring optimal performance in any situation.

FIR-X Tuning uses linear-phase FIR filters to provide ultra-precise crossover control between the woofer and tweeter, resulting in smooth phase response and more accurate sound imaging.

D-CONTOUR is a dynamic multi-band compressor that adapts the speaker’s output in real time to maintain clarity and balance at all volume levels. You can choose between two modes:

• FOH/Main Mode: Ideal for use as a front-of-house PA speaker, adding controlled low-end punch.

• Monitor Mode: Tailored EQ curve for stage monitoring, reducing low-frequency buildup and improving vocal presence.

These DSP tools ensure the DXR8mkII delivers pristine sound for vocals, instruments, speech, and music playback—regardless of room size or setup style.

---

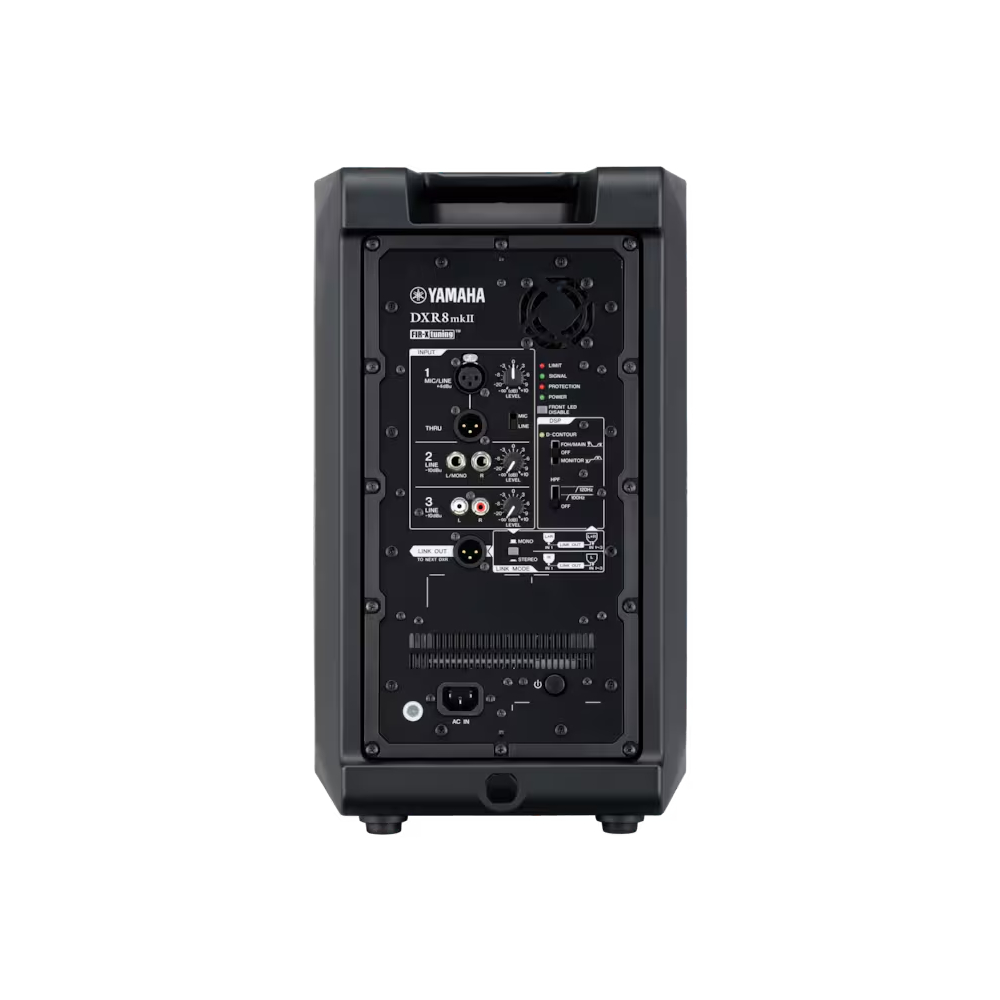

Built-In 3-Channel Mixer for Onboard Control

The Yamaha DXR8mkII includes a versatile 3-channel mixer, offering real-world flexibility for performers, presenters, and audio techs alike. This onboard mixer eliminates the need for external gear in small setups and allows you to directly connect multiple sources:

• CH1: XLR/TRS combo jack (mic or line input)

• CH2: XLR/TRS combo jack (line-level input)

• CH3: RCA stereo input (great for music playback)

Each input channel has its own level control, and the LINK OUT lets you connect additional speakers. You can select between Mix Output (for summing all inputs) or CH1 Out (for signal pass-through), making it perfect for mobile PA rigs, solo performers, and quick corporate setups.

---

Ultra-Portable and Rugged Enclosure

Weighing just 12.8 kg (28.2 lbs), the DXR8mkII is the lightest in the DXR lineup—making transport and setup effortless. The compact ABS enclosure is both tough and acoustically optimized, ensuring long-term durability for road use, rentals, or permanent installations.

Its symmetrical cabinet design allows for both vertical use and angled placement as a floor monitor. A 35 mm pole socket and built-in rigging points (M8 x 3) provide flexible mounting options for live sound or fixed installations.

The DXR8mkII is built to move and built to last—ideal for mobile systems, quick installs, or tight spaces where larger speakers just won’t fit.

---

Reliable Operation with Comprehensive Protection

Professional use demands professional protection. The Yamaha DXR8mkII is equipped with a complete array of safety features that ensure stable operation in all conditions:

• Thermal and overcurrent protection

• Power-on muting to prevent pops

• Output limiter and DC fault protection

• Smart cooling system with quiet fan operation

These internal safeguards, along with Yamaha’s trusted build quality, make the DXR8mkII a rock-solid choice for mission-critical sound applications.

---

Ideal Applications

Thanks to its compact size, high output, and professional sound, the Yamaha DXR8mkII powered speaker is ideal for a wide range of uses:

• Solo musicians and acoustic performers

• Corporate AV and conference presentations

• DJs and small club installations

• Houses of worship and church events

• Mobile PA systems and rental rigs

• Stage monitoring for vocals, keys, guitars

• Portable sound systems for fitness instructors or public speakers

• Educational institutions, classrooms, and lecture halls

The DXR8mkII performs well both as a main speaker in small to medium spaces and as a monitor or satellite speaker in larger setups.

---

Why Choose the Yamaha DXR8mkII?

The Yamaha DXR8mkII is the ultimate choice for audio professionals and enthusiasts who need powerful, clean sound in a compact and portable form. It offers the same advanced DSP and rugged build quality as its larger DXR siblings, while remaining incredibly easy to transport and install.

From touring performers to AV professionals, from club DJs to house-of-worship techs, the DXR8mkII delivers the kind of performance usually reserved for larger systems—without the extra weight or complexity. With intelligent features, powerful amplification, and Yamaha’s trusted engineering, this speaker is designed to go anywhere sound is needed, and perform with excellence every time.
