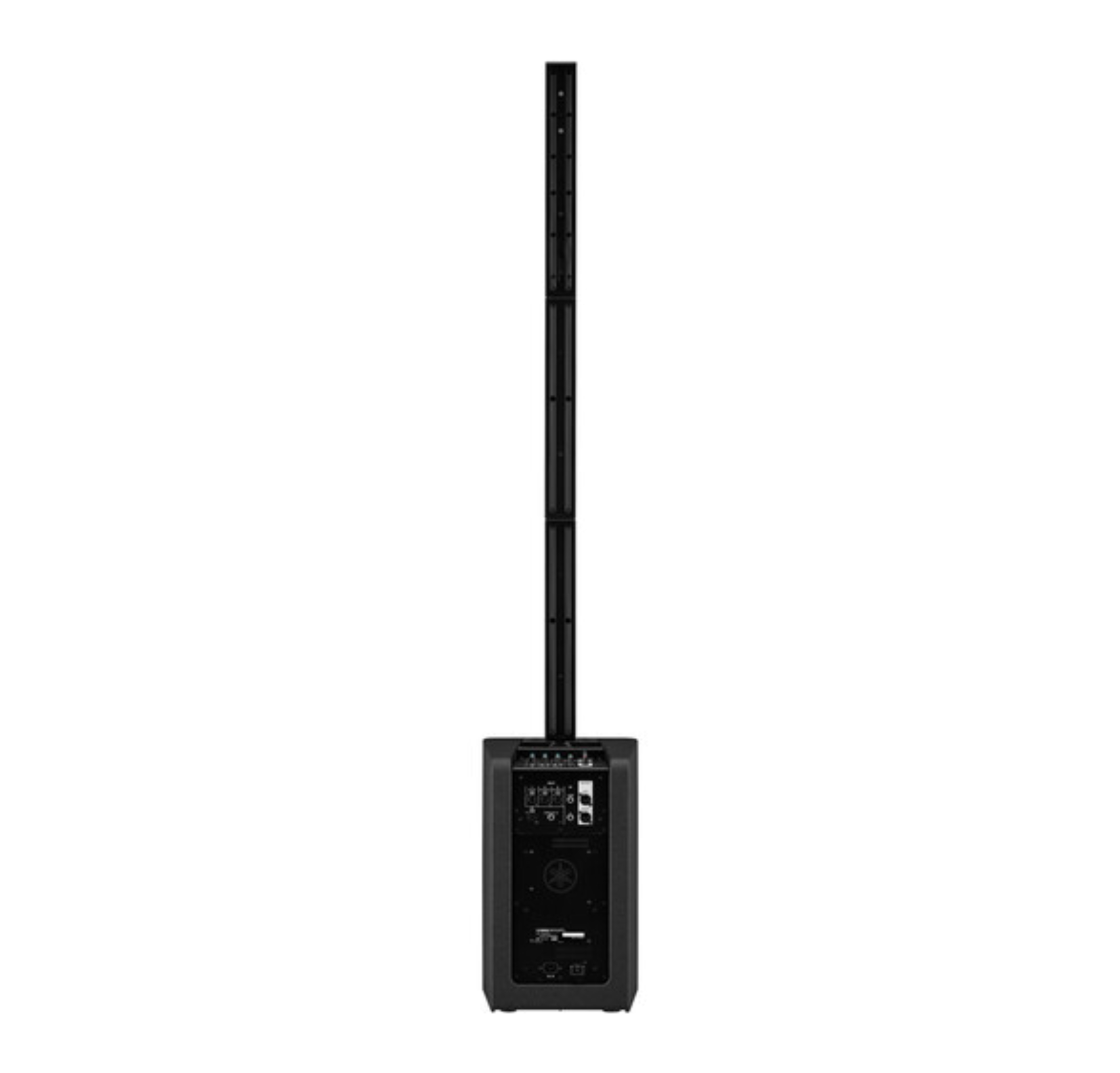

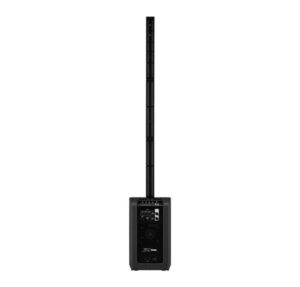

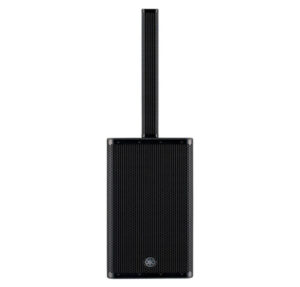

Yamaha STAGEPAS 1K mkII: The Ultimate 1100W Portable PA System with Bluetooth

The Yamaha STAGEPAS 1K mkII is a cutting-edge, all-in-one portable PA system that combines high-performance audio, intuitive controls, and seamless connectivity. Whether you’re a solo performer, a DJ, or part of a small band, this system delivers exceptional sound quality and versatility in a compact and easy-to-transport package.

Powerful Audio Performance

At the heart of the STAGEPAS 1K mkII is its 1100W Class-D amplifier, delivering a peak output of 125 dB SPL at 1 meter. This robust power ensures clear and consistent sound coverage, even in larger venues. The system features a 12-inch bass-reflex subwoofer for deep, punchy lows and a line array speaker with ten 1.5-inch drivers for crisp, high-frequency reproduction. Together, they provide a wide frequency response ranging from 37 Hz to 20 kHz, ensuring full-range audio that suits various applications .

Compact and Lightweight Design

Designed for portability, the STAGEPAS 1K mkII is easy to set up and transport. The system comprises a slimline speaker array and a subwoofer, both engineered for quick assembly and disassembly. The total weight of the system is approximately 23 kg, making it manageable for a single person to handle. Its sleek design allows it to blend seamlessly into any performance setting, from small gigs to public speaking events.

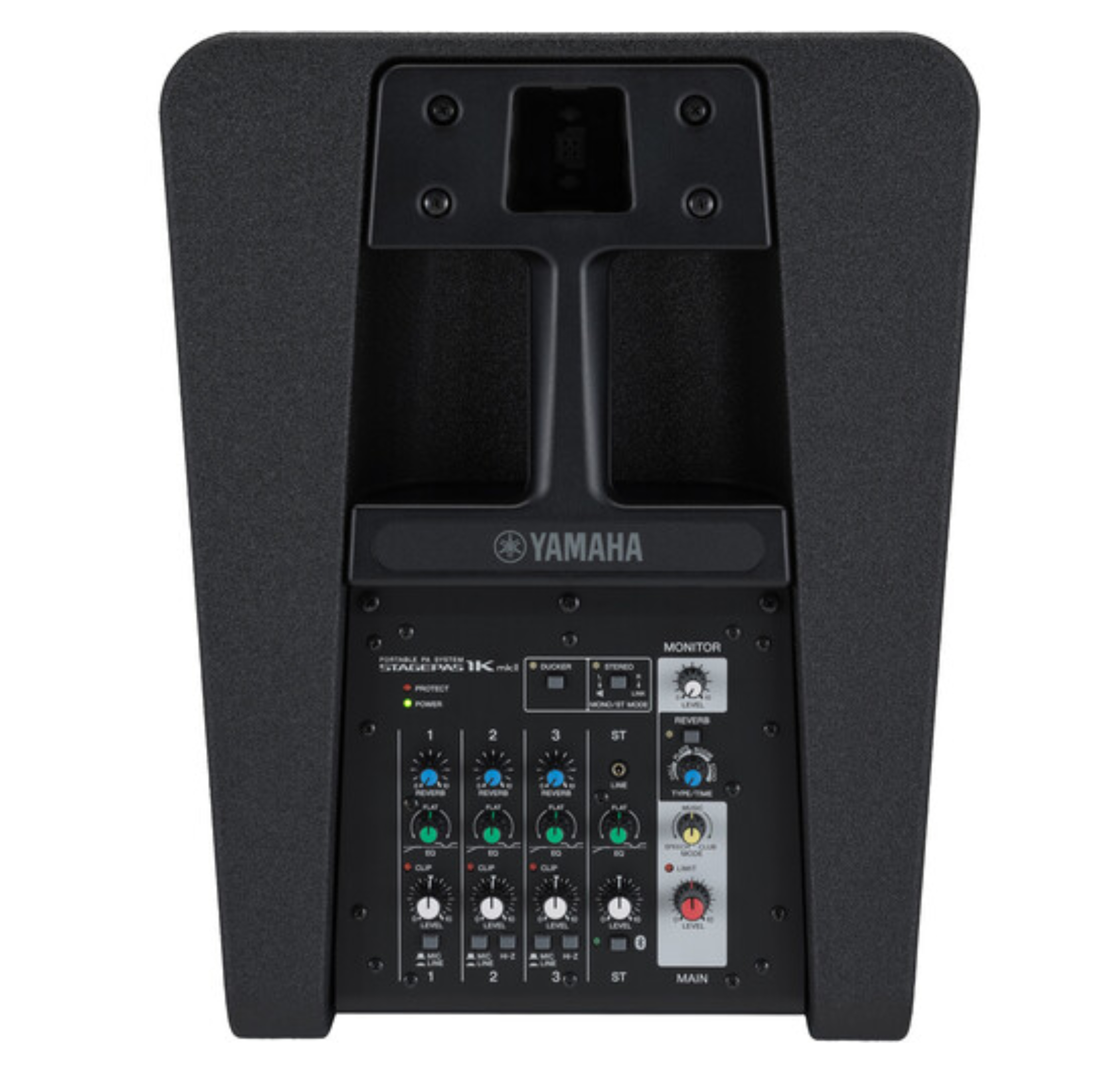

Advanced Digital Mixer

The built-in 5-channel digital mixer offers comprehensive control over your sound. It includes:

• Three mono channels with combo XLR-1/4″ TRS inputs, suitable for microphones, instruments, or line-level sources.

• One stereo channel with 1/4″ TRS inputs for keyboards, drum machines, or other stereo sources.

• Hi-Z inputs on channels 2 and 3 for direct connection of electric guitars or basses.

• 1-knob EQ on each channel for quick tonal adjustments.

• SPX digital reverb with four selectable programs and parameter control for adding depth to your sound.

• Priority Ducker function, automatically lowering background music volume when the microphone is used, ensuring clear speech delivery .

Seamless Bluetooth Connectivity

The STAGEPAS 1K mkII features Bluetooth 5.0 connectivity, allowing you to stream audio wirelessly from your smartphone, tablet, or laptop. This feature is ideal for background music during breaks or for playing tracks from a playlist without the need for additional cables. The Bluetooth connection supports A2DP profiles, ensuring high-quality audio streaming.

Remote Control with STAGEPAS Controller App

For added convenience, Yamaha offers the STAGEPAS Controller app, compatible with both iOS and Android devices. This app enables you to:

• Adjust volume levels and 1-knob EQ settings remotely.

• Fine-tune the 4-band parametric EQ for each channel.

• Control the Priority Ducker function.

• Save and recall settings for different performances or venues.

• Manage multiple STAGEPAS 1K mkII units simultaneously, making it ideal for larger setups or multi-room events .

Versatile Applications

The Yamaha STAGEPAS 1K mkII is suitable for a wide range of applications, including:

• Live music performances: Solo artists, duos, or small bands can rely on its powerful output and clear sound reproduction.

• Public speaking events: The system’s clarity and coverage ensure that your voice reaches every corner of the room.

• DJ setups: With its robust bass response and high-frequency clarity, it’s perfect for mobile DJs.

• Rehearsals and practice sessions: The portability and ease of setup make it an excellent choice for musicians on the go.

Additional Features and Accessories

• MODE Compression: Selectable modes (Speech, Music, Club) optimize the system’s dynamic range for different applications.

• Monitor Output: Allows you to connect a separate monitor speaker for stage monitoring.

• Link Output: Enables daisy-chaining multiple systems for larger events.

• Optional Accessories:

  • FC5 Foot Switch: Provides hands-free control of reverb effects.

  • DL-SP1K Dolly: Facilitates easy transportation of the subwoofer .

Technical Specifications

• Amplifier Power: 1100W (500W HF, 600W LF)

• Frequency Response: 37 Hz – 20 kHz (-10 dB)

• Maximum SPL: 125 dB (peak at 1m)

• Coverage Angle: 170° horizontal x 30° vertical

• Inputs:

  • 3 x Mono (XLR-1/4″ TRS)

  • 1 x Stereo (1/4″ TRS)

  • 2 x Hi-Z (Channels 2 & 3)

• Outputs:

  • 1 x Link Out (XLR)

  • 1 x Monitor Out (XLR)

• Bluetooth: Version 5.0, A2DP (SBC, AAC)

• DSP Effects: SPX Digital Reverb (4 programs), Priority Ducker

• Dimensions:

  • Subwoofer: 550 x 418 x 334 mm

  • Speaker Array: 582 x 86 x 67 mm

• Weight:

  • Subwoofer: 20 kg

  • Speaker Array: 1.8 kg

  • Total System: 23 kg

Conclusion

The Yamaha STAGEPAS 1K mkII stands out as a top-tier portable PA system, offering professional-grade sound quality, user-friendly controls, and modern connectivity options. Its compact design, powerful output, and advanced features make it an excellent choice for musicians, speakers, and event organizers seeking a reliable and versatile audio solution. Whether you’re performing in a small venue or hosting a large event, the STAGEPAS 1K mkII ensures your sound is heard loud and clear.
