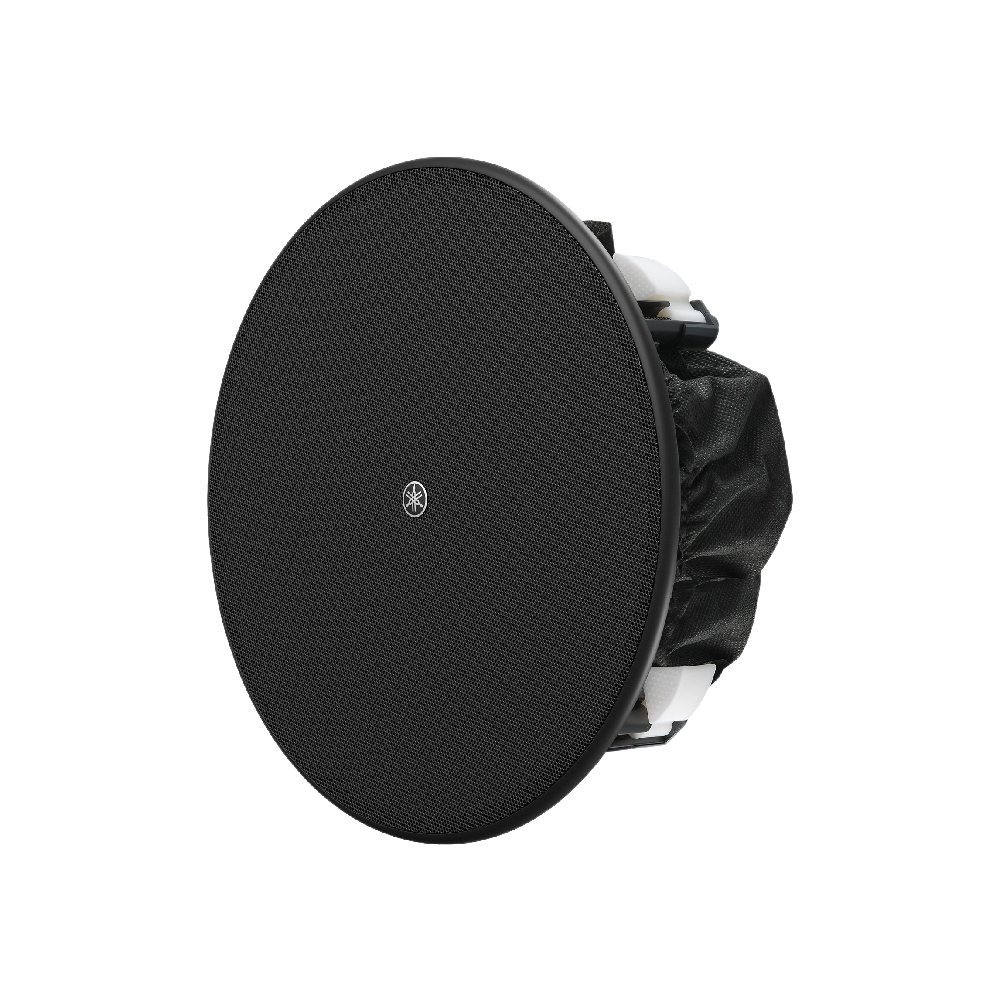

Yamaha VC6NW 6.5″ Two-Way Ceiling Speaker – 16Ω, 70V/100V Compatible, Paintable Grill, Open-Back Design

The Yamaha VC6NW is a premium-quality, two-way ceiling speaker designed for commercial installations, offering clear sound reproduction with flexible mounting and wiring options. Whether used in restaurants, retail stores, office spaces, conference rooms, or hospitality venues, the VC6NW delivers balanced background music and clear voice projection while maintaining a discreet, professional appearance.

Yamaha’s VC series combines acoustic engineering expertise with practical installation features, ensuring easy integration into various commercial sound systems. The VC6NW in particular stands out for its open-back design, compact form factor, and support for both low-impedance and high-impedance distributed systems.

Key Features of Yamaha VC6NW Ceiling Speaker

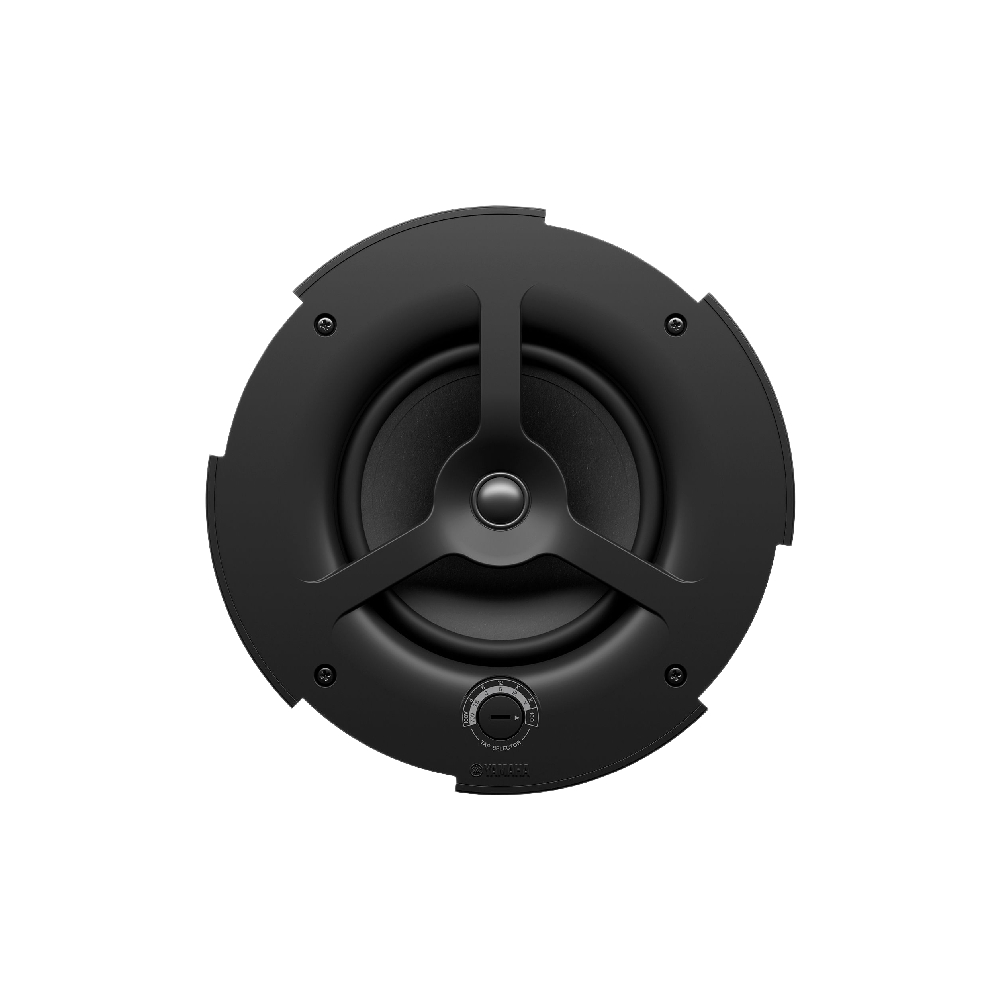

• Two-Way Design: Equipped with a 6.5-inch woofer and 0.8-inch soft-dome tweeter for full-range sound reproduction.

• Low-Z and High-Z Compatibility: Supports both 16-ohm low-impedance systems and 70V/100V distributed line systems.

• High-Quality Sound: Wide frequency response from 63 Hz to 20 kHz, offering detailed highs and clear mids, ideal for background music and speech.

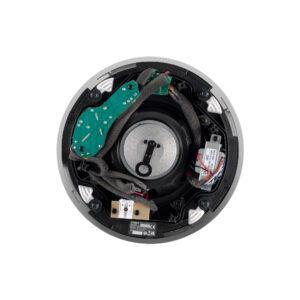

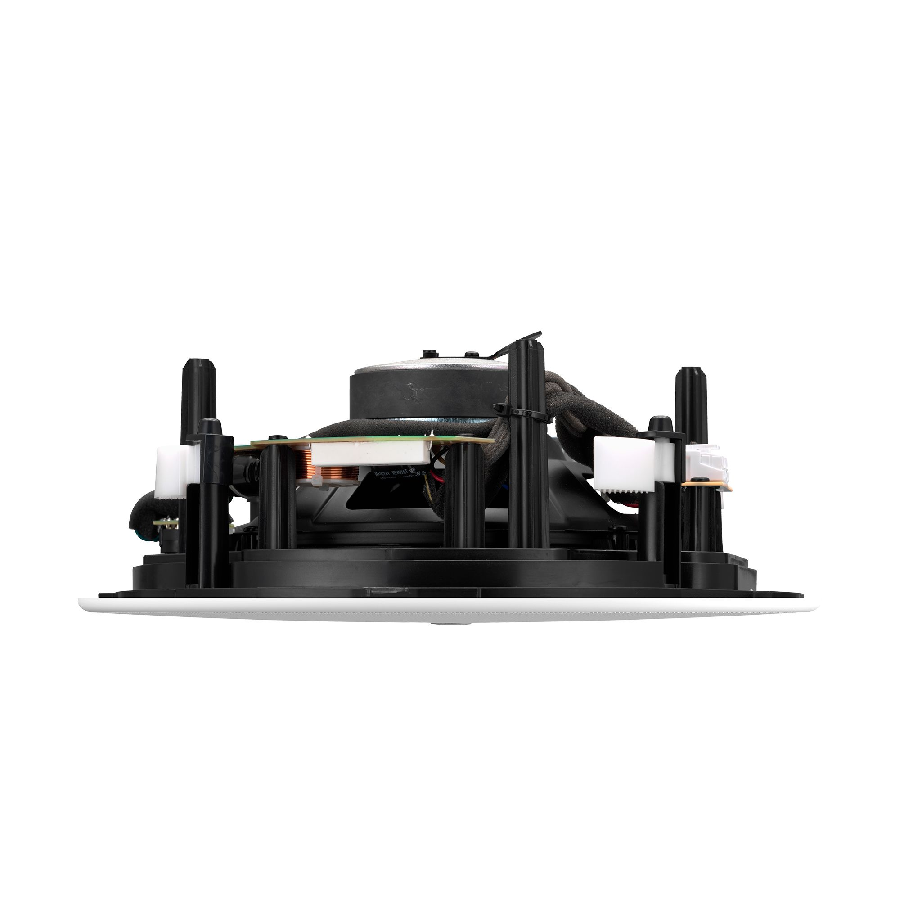

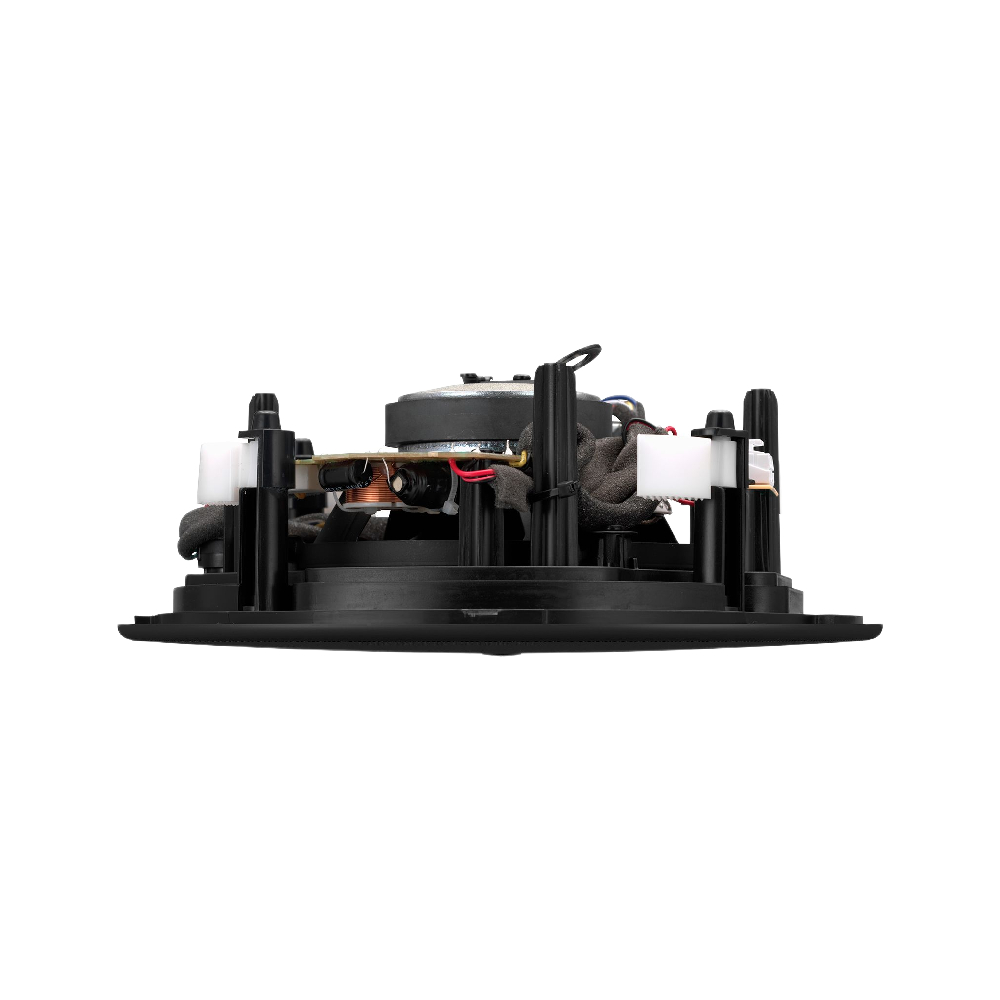

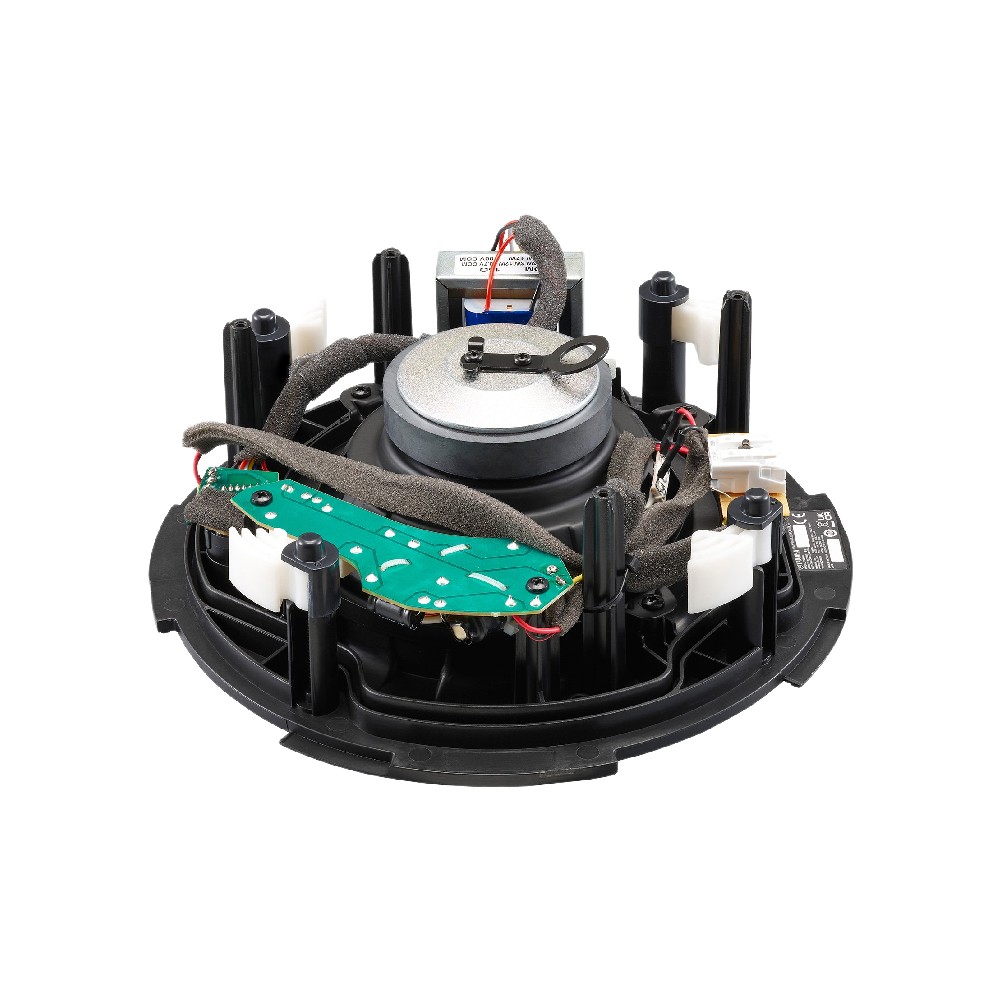

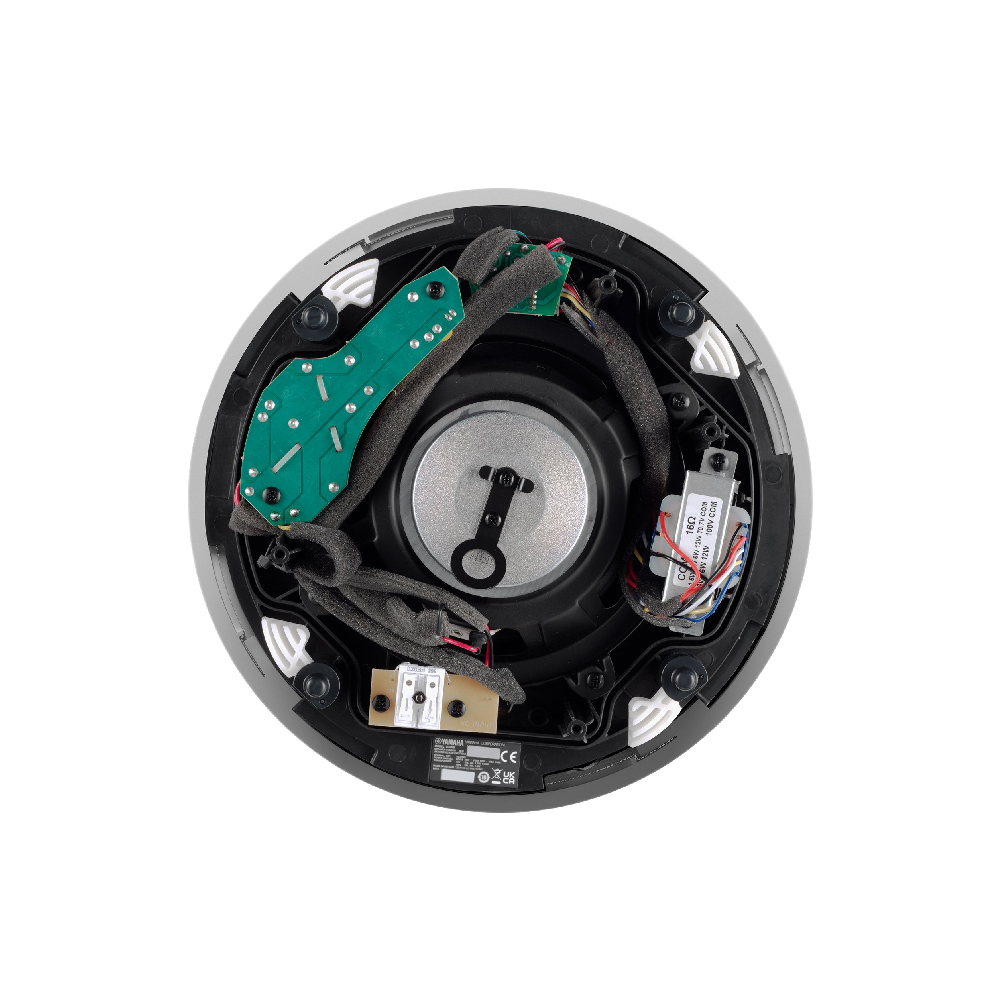

• Open-Back Configuration: Compact, fanless design without an enclosed back can, minimizing installation depth and weight.

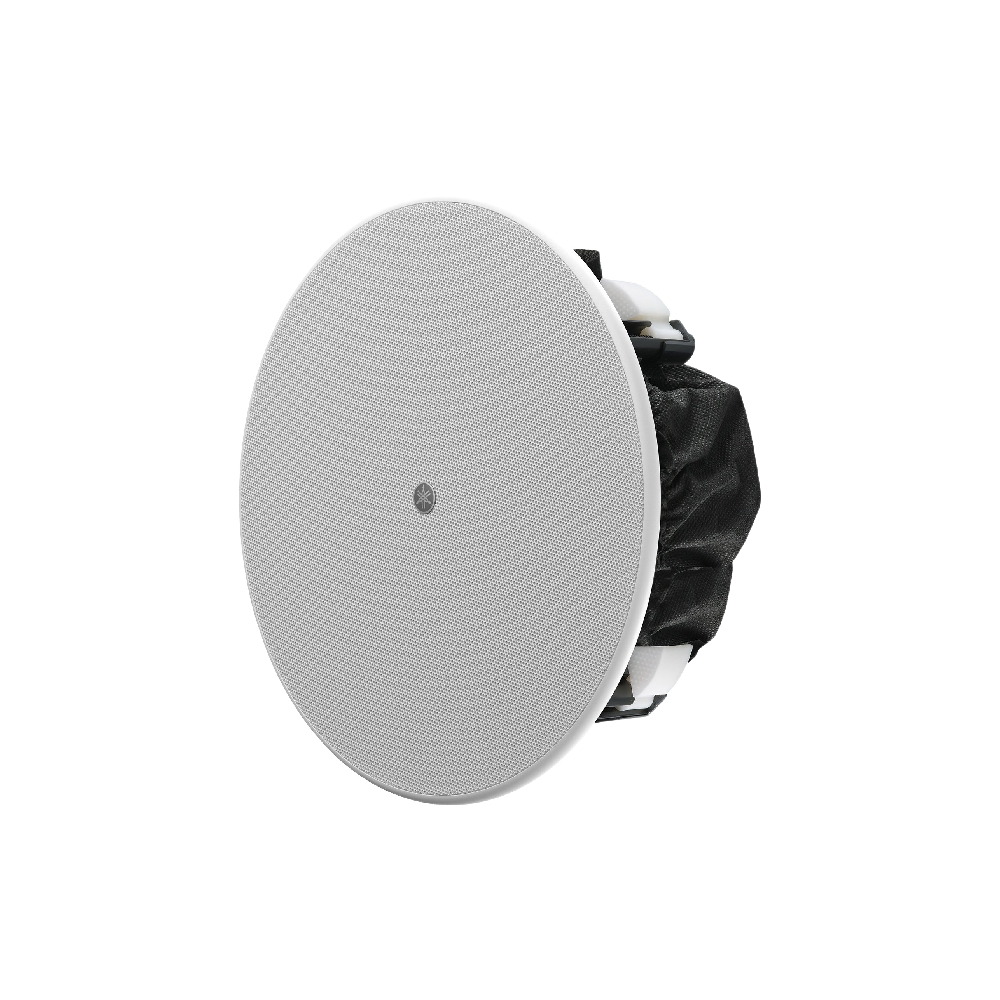

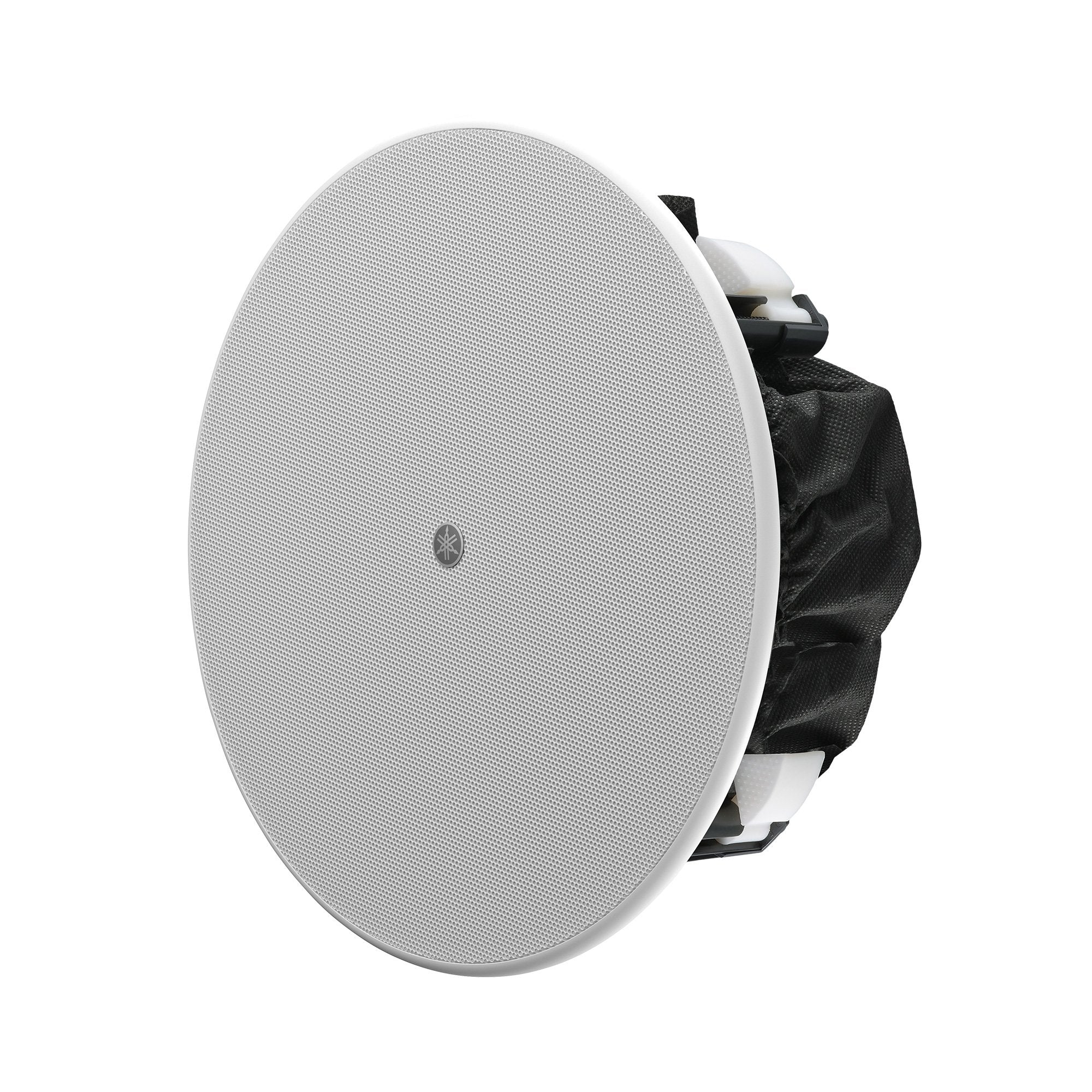

• Paintable Magnetic Grill: White finish with removable, paintable magnetic grill for seamless integration with ceiling aesthetics.

• Easy Installation: Double-threaded clamps, tile rail, C-ring, and carry strap included for secure and quick mounting.

• Durable Build: Yamaha reliability with protective features ensuring consistent long-term operation in commercial settings.

Detailed Technical Specifications

• Woofer Size: 6.5 inches (Cone)

• Tweeter Size: 0.8 inches (Soft Dome)

• Frequency Response: 63 Hz – 20 kHz (-10 dB)

• Power Handling:

  • Noise: 25 watts

  • Program: 50 watts

  • Peak: 100 watts

• Sensitivity: 89 dB SPL (1W, 1m)

• Maximum SPL: Approximately 109 dB SPL (calculated)

• Nominal Impedance: 16 ohms

• Transformer Tap Settings:

  • 70V Line: 1.5 W, 3 W, 6 W, 12 W

  • 100V Line: 3 W, 6 W, 12 W

• Coverage Angle: 120° Conical

• Connector Type: Push-type Euroblock terminal

• Dimensions: 286 mm Diameter × 114 mm Depth

• Cut-out Diameter: 247 mm

• Weight: Approx. 2.3 kg

Practical Advantages of Yamaha VC6NW

Flexible Installation Options

The VC6NW is engineered for installers looking for maximum flexibility. Its open-back, shallow design makes it ideal for ceiling spaces with limited depth. The included mounting hardware, such as tile rails and a C-ring, allows it to fit securely in suspended ceilings, plasterboard, and other architectural configurations.

Compatible with Multiple System Types

With both 16-ohm low-impedance operation and 70/100-volt transformer tap settings, the Yamaha VC6NW can be used in smaller localized setups as well as large-scale distributed audio systems. This reduces the need for separate product models in mixed-use environments.

Clean, Professional Look

Thanks to its paintable magnetic grill, the VC6NW seamlessly blends into any ceiling. The magnetic attachment system also simplifies maintenance or grill replacement. The unobtrusive white finish is suited for both modern and classic interior designs.

Yamaha Sound Quality

While compact in size, the VC6NW maintains Yamaha’s signature sound characteristics. Its wide frequency response ensures that background music retains warmth and clarity while spoken announcements stay intelligible without being harsh or overly bright.

Energy Efficiency and Reliability

The speaker’s lightweight build and open-back design contribute to efficient sound delivery while maintaining a high degree of reliability. No active electronics are involved in the speaker itself, which means lower maintenance requirements and fewer points of failure in the system.

Where to Use Yamaha VC6NW

• Retail Stores and Shopping Malls: For background music and paging announcements that maintain clarity and even coverage.

• Restaurants and Cafés: Providing ambient music that enhances the customer experience without overpowering conversation.

• Corporate Offices and Conference Rooms: Ideal for clear speech reproduction in meeting spaces and boardrooms.

• Hotels, Lobbies, and Public Venues: Blends into ceilings while delivering smooth audio in lounges, hallways, and reception areas.

• Educational Institutions: Effective for announcements and background audio in schools, universities, and training centers.

Why Choose Yamaha VC6NW Ceiling Speakers?

1. Balanced Sound for Commercial Applications:
   Designed specifically for commercial audio setups, the Yamaha VC6NW offers both music and voice reproduction with balanced tone and wide coverage.

2. Installer-Friendly Design:
   With included mounting accessories and Euroblock connectors, the VC6NW saves time and reduces installation complexity.

3. Discreet Aesthetic:
   The slim profile, magnetic paintable grill, and white finish help the speaker disappear into the ceiling, maintaining a clean environment.

4. Versatile System Compatibility:
   By supporting both low-Z and high-Z setups, the VC6NW fits into a variety of audio system designs without requiring model changes or additional transformers.

5. Yamaha Reliability:
   Known for producing dependable pro-audio equipment, Yamaha ensures that the VC6NW maintains consistent performance even in challenging environments.

Final Summary

The Yamaha VC6NW 6.5″ Ceiling Speaker represents a perfect balance of sound quality, installation flexibility, and discreet appearance for commercial and public spaces. Its two-way driver system delivers full-range sound suitable for background music and speech, while its compatibility with both 16-ohm and 70/100-volt systems allows for integration in virtually any audio distribution setup.

Whether you are an installer looking for a cost-effective yet premium solution, or a business owner seeking dependable sound with clean aesthetics, the Yamaha VC6NW is a solid, reliable choice backed by Yamaha’s reputation in professional audio engineering.
