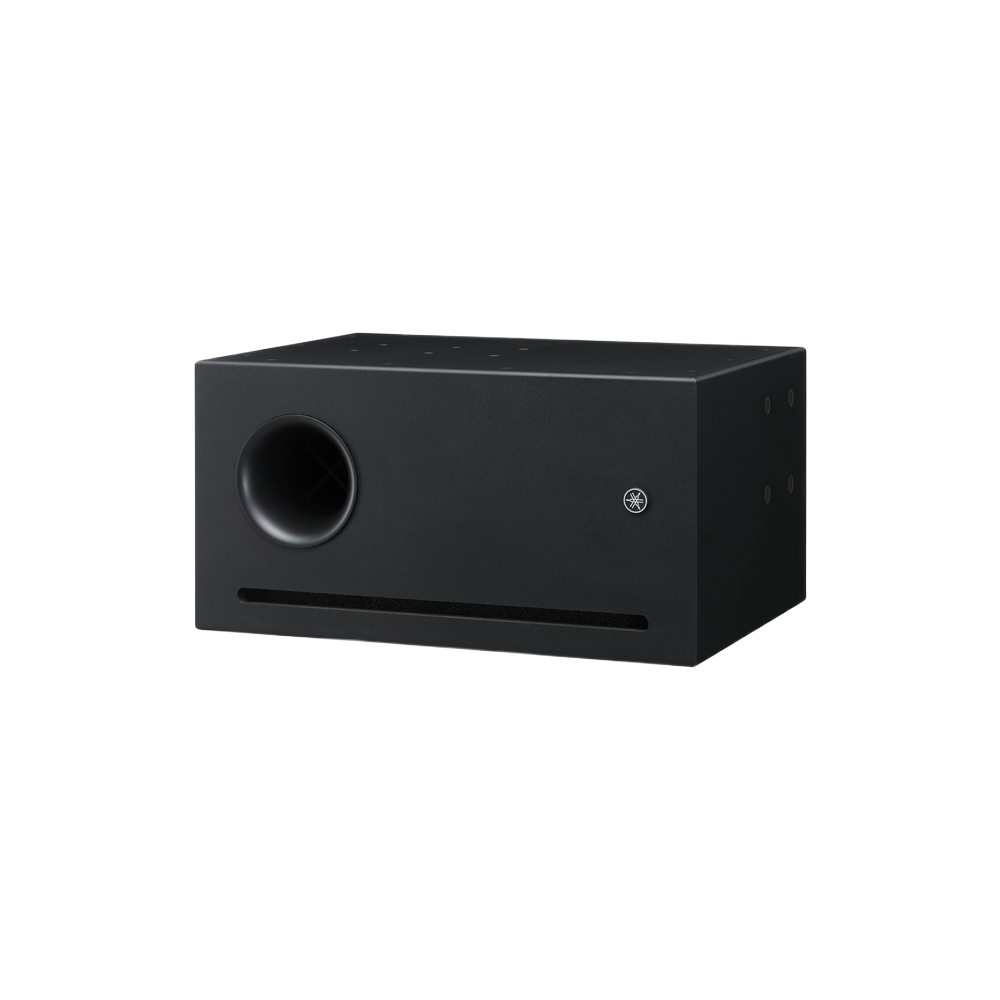

Yamaha VXS10ST Surface-Mount Subwoofer – Compact Low-End Reinforcement with Elegant Design

The Yamaha VXS10ST is a passive surface-mount subwoofer that brings deep, extended low-frequency performance to commercial audio installations, all while maintaining a compact footprint and modern design. Ideal for restaurants, retail stores, corporate spaces, and hospitality environments, the VXS10ST offers the power and clarity needed to enhance background music systems without overpowering the space.

Engineered by Yamaha for seamless integration with the VXS and VXC speaker series, the VXS10ST helps create a full-range audio experience where visual impact must be kept to a minimum. With its sleek housing, powerful performance, and flexible installation options, it’s the perfect subwoofer solution for distributed sound systems that require both style and substance.

---

Powerful and Controlled Bass in a Compact Design

Despite its unobtrusive size, the Yamaha VXS10ST is built to deliver clean and impactful bass. It features a 10-inch (25 cm) woofer housed in a band-pass enclosure, which enhances low-frequency output while minimizing distortion and unwanted resonance.

With a frequency range of 50 Hz to 150 Hz, the VXS10ST fills in the low end that satellite ceiling or wall speakers alone cannot reproduce, resulting in a richer, more complete listening experience. Whether you’re playing ambient music or upbeat tracks, this subwoofer brings added depth and warmth to your sound system—essential for venues that want high-quality audio to match their brand identity.

---

Ideal for Background Music and Commercial Installations

The Yamaha VXS10ST subwoofer is specifically tailored for environments where aesthetic considerations are just as important as sound quality. It offers the low-end support necessary for a natural, full-spectrum audio presentation in:

• Cafés, bistros, and restaurants

• Boutique retail stores and showrooms

• Hotel lobbies and lounges

• Office buildings and conference areas

• Reception halls and public waiting spaces

• Gyms, spas, and wellness centers

Its surface-mount design allows it to be discreetly installed on walls or under furniture without sacrificing floor space or visual harmony, making it a favorite among architects and interior designers.

---

High Power Handling and Wide Coverage

The VXS10ST is built with the durability and performance needed for commercial audio systems. It supports:

• Continuous Power Handling: 200W (PGM)

• Nominal Impedance: 8 ohms

• Sensitivity: 92 dB SPL (1W, 1m)

• Maximum SPL: 115 dB (calculated)

With this level of output, the VXS10ST can easily support background music systems in medium to large spaces when paired with compatible full-range satellite speakers. It works especially well in sub/sat configurations, where it supplements smaller speakers by taking over bass frequencies, allowing them to focus on mids and highs.

---

Seamless Integration with Yamaha Systems

Designed to complement Yamaha’s VXS and VXC full-range speakers, the VXS10ST fits naturally into a variety of sound systems. Yamaha recommends pairing the VXS10ST with its VXS1ML or VXS3F satellite models to create a complete, full-range sub/sat system that blends audio performance with aesthetic appeal.

When integrated into a system using a Yamaha MA/PA Series mixer amplifier or MTX matrix processor, installers gain advanced DSP and control options—perfect for tailoring system response and coverage in zones or multi-room environments.

---

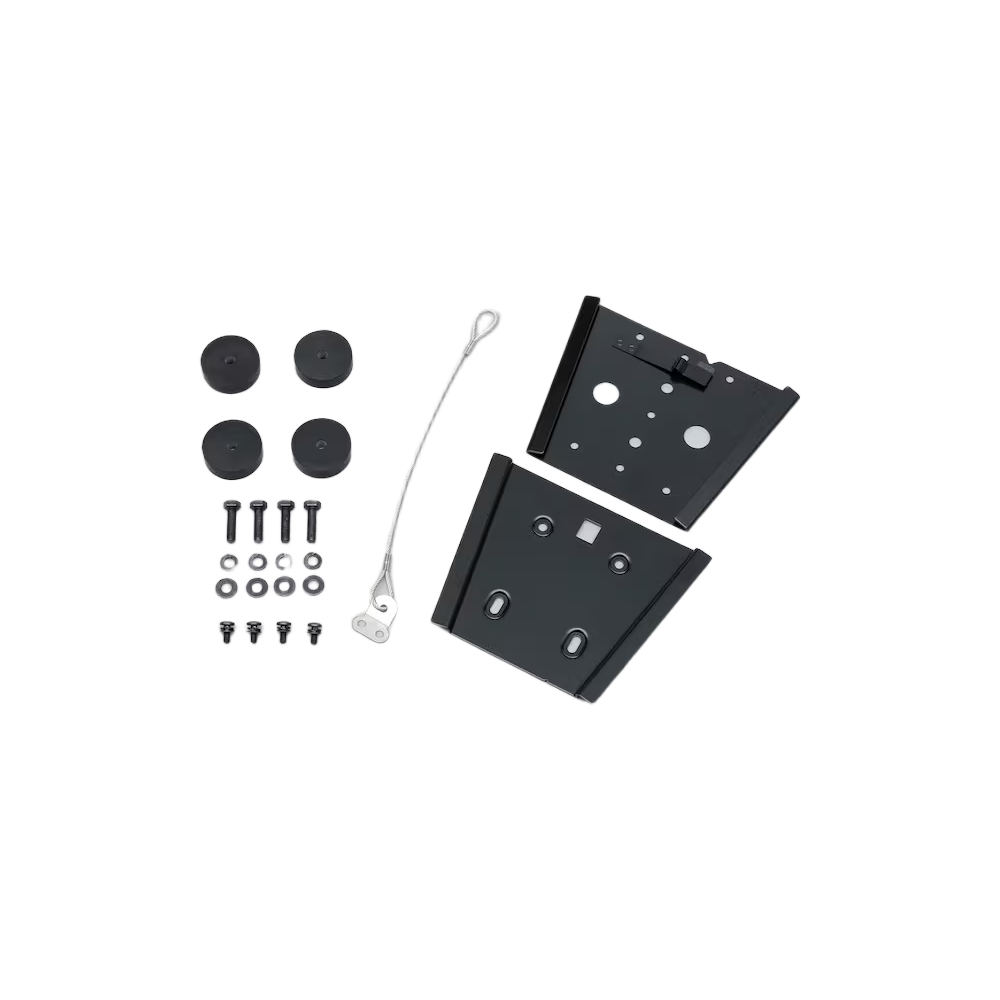

Flexible Installation with Included Accessories

One of the key benefits of the Yamaha VXS10ST is its installer-friendly mounting system. Included accessories support both vertical and horizontal wall mounting, allowing integrators to find the best placement for both performance and space management. The VXS10ST can be mounted:

• On a wall

• Under counters or furniture

• Horizontally or vertically

• Near the floor or ceiling

This versatility helps maintain a low-profile aesthetic while ensuring optimal bass distribution throughout the room. Additionally, the subwoofer’s sleek cabinet and paintable grille allow it to blend into any interior décor, whether in modern retail spaces or elegant hospitality venues.

---

Elegant, Commercial-Grade Build

The cabinet of the VXS10ST is made from high-quality wood, offering better acoustics than plastic enclosures typically found in compact subs. Its bass reflex band-pass structure allows tight control of the low-end response while maintaining deep output.

Measuring only 500 mm (W) x 300 mm (H) x 300 mm (D), the subwoofer fits into tight spaces without drawing attention. The surface texture and neutral color options—typically black or white—help the VXS10ST fit seamlessly into a wide range of architectural styles and commercial interiors.

Its elegant design is matched by Yamaha’s trusted reputation for build quality and attention to detail, ensuring long-term performance in fixed installations.

---

Technical Specifications

• Speaker Type: Surface-mount, band-pass subwoofer

• Woofer Size: 10″ (25 cm) cone

• Frequency Range (-10 dB): 50 Hz – 150 Hz

• Sensitivity (1W, 1m): 92 dB SPL

• Maximum SPL: 115 dB (calculated)

• Rated Power Handling:

  • Noise: 100W

  • PGM: 200W

  • Maximum: 400W

• Nominal Impedance: 8 ohms

• Crossover: Passive (external crossover or DSP recommended)

• Enclosure Type: Band-pass, wood construction

• Mounting Options: Surface-mount (wall, under-furniture, floor)

• Dimensions (W x H x D): 500 × 300 × 300 mm

• Weight: 11.5 kg (25.4 lbs)

• Finish: Black or White

• Grille: Steel, paintable

• Included Accessories: Wall-mounting bracket, user manual

• Compatible with: Yamaha VXS1ML, VXS3F, MA/PA and MTX Series

---

Designed for Discreet, Professional Installations

The VXS10ST is not just a speaker—it’s a solution. It’s been purpose-built for integrators and installers who need to deliver great audio without bulky floor-standing subs or high-visibility equipment. Whether hidden under a bench or mounted discreetly along a wall, this subwoofer delivers excellent low-frequency support in a space-saving form factor.

For businesses, venues, and designers seeking to maintain aesthetic integrity while improving their ambient sound, the VXS10ST delivers all the benefits of extended bass in a refined and compact package.

---

Why Choose the Yamaha VXS10ST?

The Yamaha VXS10ST subwoofer fills a unique space in commercial and architectural audio systems. It offers the performance of a traditional subwoofer in a compact, surface-mount format that’s designed for ease of installation and visual harmony. From retail environments to hospitality venues and beyond, this subwoofer enhances any music playback system with smooth, impactful bass—without dominating the room.

Backed by Yamaha’s legacy of audio innovation and dependable engineering, the VXS10ST is a long-lasting, value-driven investment for any project that demands both performance and presentation.
