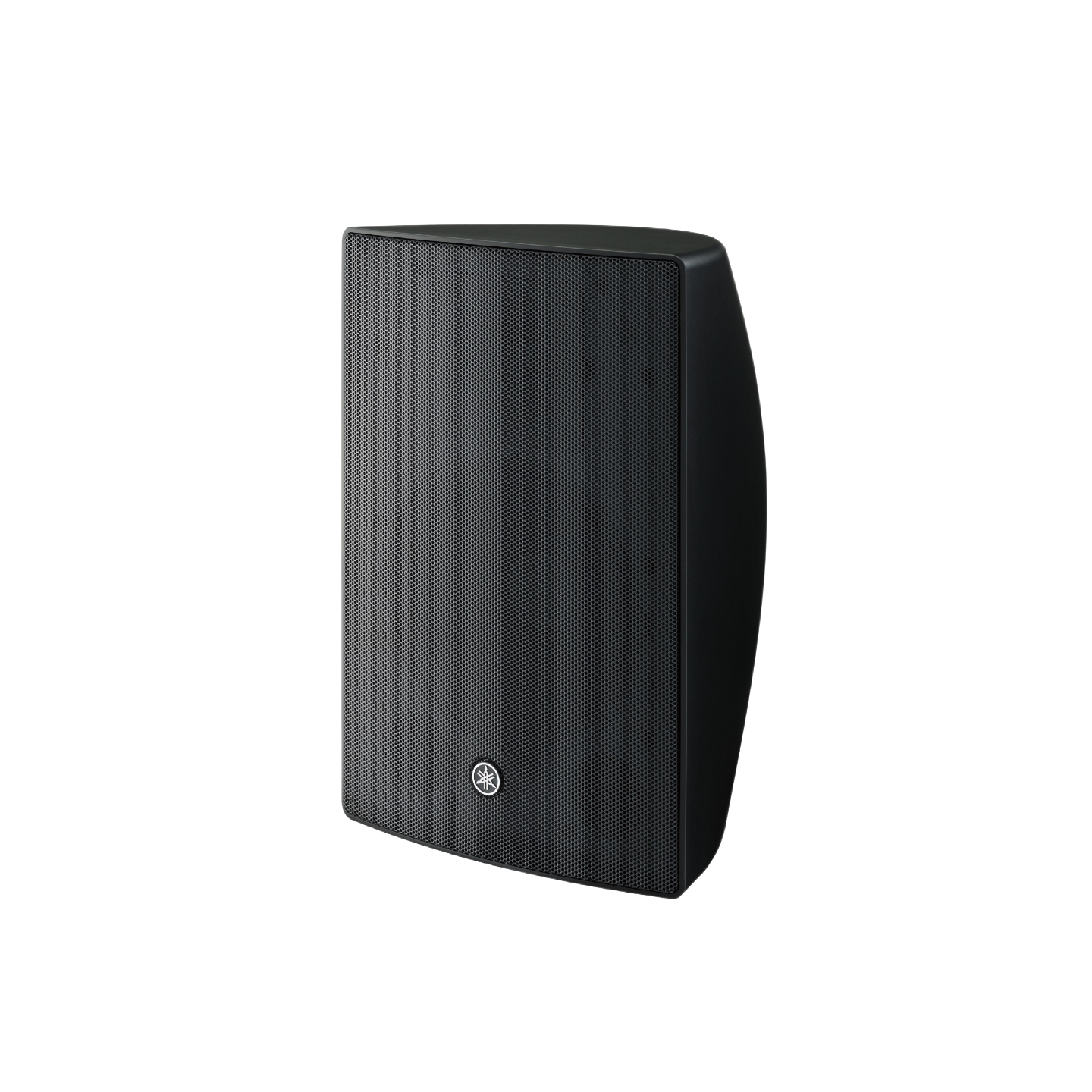

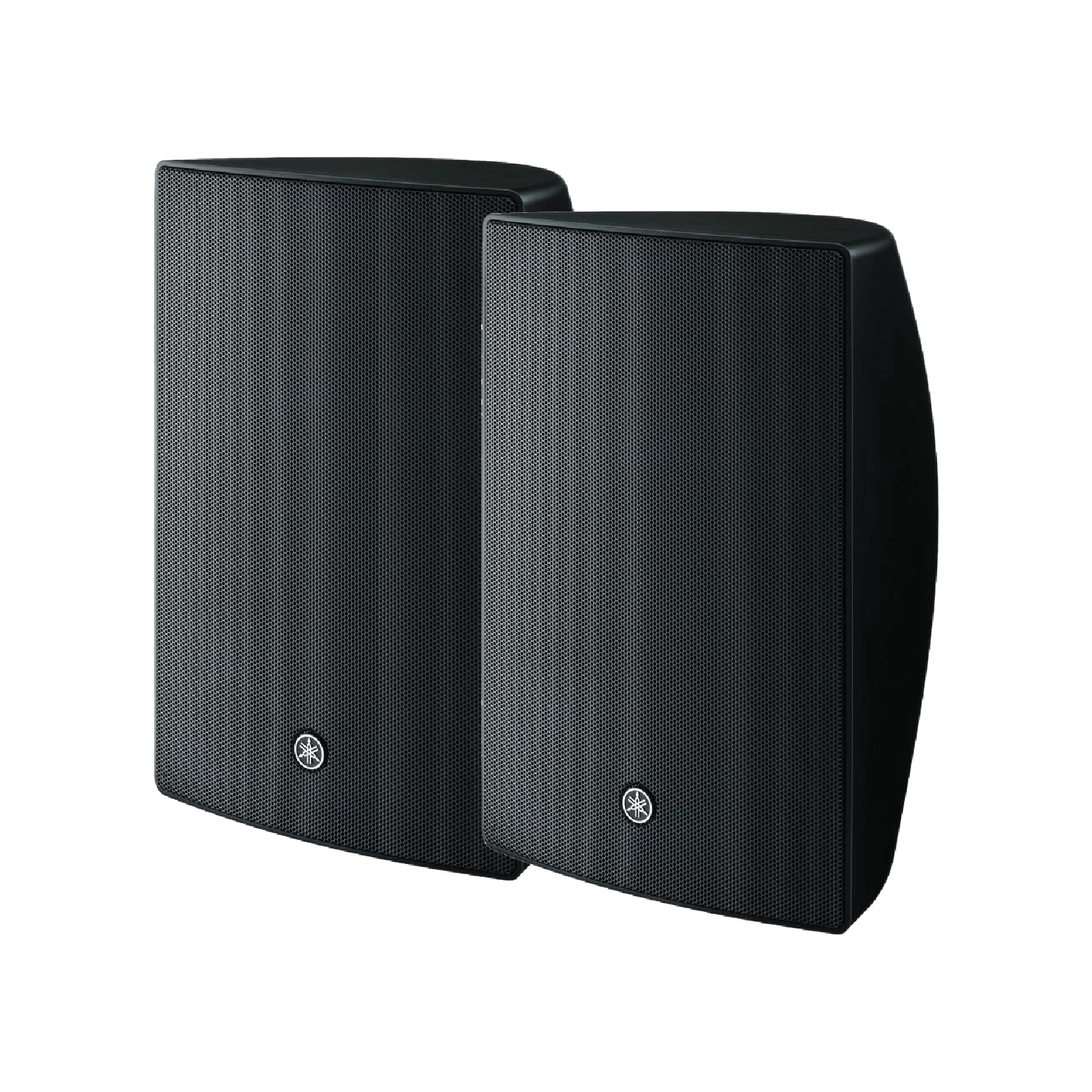

Yamaha  VXS8 2‑Way 8″ Surface‑Mount Speaker (Pair) – 180 W Program, 100° Coverage, IP35 Weather‑Resistant



Yamaha VXS8 2‑Way 8″ Surface‑Mount Speaker (Pair) – 180 W Program, 100° Coverage, IP35 Weather‑Resistant – Exceptional Sound with Elegant Versatility

The Yamaha VXS8 surface-mount speaker delivers premium audio performance in a refined, easy-to-install package. Designed for both commercial and high-end residential environments, this 8-inch two-way speaker blends high fidelity sound with rugged durability and an elegant design aesthetic. Whether you’re outfitting a restaurant, hotel, office space, or even a stylish outdoor patio, the Yamaha VXS8 offers powerful performance and unmatched flexibility.

Rich, Balanced Sound for Any Environment

At the core of the Yamaha VXS8 is a two-way bass-reflex system engineered for full-range clarity and detail. It features an 8-inch cone woofer paired with a 1-inch soft-dome tweeter. This combination results in a rich and immersive listening experience, delivering deep lows, articulate mids, and clear, extended highs.

With a frequency response ranging from 51 Hz to 20 kHz, the Yamaha VXS8 is ideal for music playback, public address systems, and ambient background sound. Whether used alone or as part of a larger distributed audio system, this speaker ensures consistent and dynamic audio coverage across the listening area.

Flexible Power and Impedance Options

One of the key benefits of the Yamaha VXS8 speaker is its dual compatibility with both low-impedance and high-impedance systems. The speaker can operate in 8-ohm mode for traditional audio setups or switch to high-impedance mode for 70V/100V distributed systems, commonly used in commercial installations.

Selectable power tap settings provide installation flexibility in high-impedance configurations. Options include 60W, 30W, 15W, and 7.5W (for 70V only), allowing you to adjust output levels based on the specific room size and desired volume. In low-impedance mode, the speaker supports up to 90W of continuous noise power and 180W of program power, offering robust output for larger or more demanding spaces.

Clear and Wide Coverage

With a dispersion pattern of 100 degrees horizontal by 100 degrees vertical, the Yamaha VXS8 ensures wide and even sound coverage. This wide dispersion makes it ideal for use in open areas such as lobbies, conference rooms, retail spaces, and outdoor patios. The speaker maintains audio clarity and balance throughout the room, reducing the number of units needed for full coverage.

Its high sensitivity rating of 91 dB (1W/1m) and a calculated peak sound pressure level of up to 117 dB ensure that sound is both clear and powerful, even at lower amplification levels.

Elegant and Durable Design

The Yamaha VXS8 speaker is built with a sleek and modern enclosure that suits a variety of interior and exterior environments. The cabinet is constructed from high-quality ABS material and finished with a powder-coated aluminum grille, offering both strength and style. Its curved design allows the speaker to blend seamlessly into architectural spaces, making it ideal for design-conscious installations.

Available in black or white finishes, the Yamaha VXS8 can be customized further with paintable grilles and cabinets to match your décor. Despite its sophisticated appearance, the speaker is highly durable. It carries an IP35 rating for water and dust resistance, making it suitable for outdoor covered installations or indoor areas with challenging conditions.

Easy and Precise Installation

Installation is quick and convenient thanks to Yamaha’s smart mounting design. The VXS8 includes a dedicated mounting bracket that supports both wall and ceiling mounting. The bracket features a flexible tilt-and-swivel mechanism, allowing precise angle adjustments without the need for additional hardware.

An intuitive Euroblock connector system allows for easy wiring and clean cable management. The 4-pin Euroblock terminal supports both input and loop-through connections, making it simple to daisy-chain multiple speakers together in large systems. Terminal covers and paintable hardware complete the clean, professional finish.

Designed for Commercial Applications

Whether you’re installing sound systems in restaurants, boutiques, cafes, offices, or hospitality venues, the Yamaha VXS8 is built to meet the rigorous demands of commercial environments. It complies with essential safety and environmental standards, including CE, RoHS, and UL certifications. Its reliable performance and flexibility make it a go-to solution for contractors, architects, and audio professionals alike.

The speaker’s performance and aesthetic appeal also make it a compelling option for premium residential use—especially in media rooms, home offices, or high-end outdoor lounge areas where style and sound quality matter equally.

Technical Specifications

• Speaker Type: 2-way bass-reflex, surface-mount

• Woofer: 8-inch cone

• Tweeter: 1-inch soft-dome

• Frequency Range (-10 dB): 51 Hz – 20 kHz

• Sensitivity (1W, 1m): 91 dB

• Maximum SPL (Peak, Calculated): 117 dB

• Nominal Coverage: 100° horizontal × 100° vertical

• Rated Impedance: 8 ohms (low-impedance mode)

• Transformer Taps (100V): 60W, 30W, 15W

• Transformer Taps (70V): 60W, 30W, 15W, 7.5W

• Power Handling: 90W (noise), 180W (program)

• Input Connectors: 4-pin Euroblock (input and loop-through)

• Enclosure Material: ABS resin with powder-coated aluminum grille

• IP Rating: IP35 (dust and water resistant)

• Certifications: CE, RoHS, UL, NFPA

• Dimensions (W × H × D): 278 × 430 × 239 mm

• Weight: 8.2 kg (18.1 lbs)

• Color Options: Black or White (paintable)

Why Choose the Yamaha VXS8?

1. Superior Yamaha Sound Quality: Engineered by one of the most trusted names in audio, the Yamaha VXS8 delivers crystal-clear sound with deep bass and natural highs.

2. Flexible Installation Options: Supports both 8-ohm and 70V/100V systems with adjustable power taps for maximum adaptability.

3. Elegant, Paintable Design: Complements modern interiors and exteriors, with curved lines and customizable finishes.

4. Durable and Weather-Resistant: Built for reliability in commercial and semi-outdoor environments.

5. Simple, Secure Mounting: Adjustable brackets and Euroblock connectors make installation fast and professional.

Ideal Applications

• Restaurants and cafés

• Retail stores and showrooms

• Offices and conference rooms

• Hotels and hospitality venues

• Outdoor patios and terraces

• Educational and worship spaces

• Home entertainment systems

Conclusion

The Yamaha VXS8 surface-mount speaker is a versatile, high-performance solution designed for professional-grade sound reinforcement in any setting. With its superior audio quality, sleek aesthetic, and flexible installation options, it offers the perfect balance of form and function. Whether you’re designing a commercial sound system or enhancing your home environment, the Yamaha VXS8 provides the performance, reliability, and sophistication that Yamaha is known for.
