Cabasse Archipel 17ICD – Trimless – 40 W RMS – 320 W Peak – 6.7″ In‑Ceiling Speakers (Pair)

The Cabasse Archipel 17ICD – Trimless – 40 W RMS – 320 W Peak – 6.7″ In‑Ceiling Speakers (Pair) is a high‑performance architectural audio solution crafted for listeners and integrators who demand refined acoustic performance with minimal visual impact. Engineered by Cabasse, a respected name in precision loudspeaker design, the Archipel 17ICD delivers a powerful and detailed listening experience while remaining discreetly integrated into ceilings or walls. Its combination of robust power handling, accurate sound reproduction, and sleek trimless appearance makes it ideal for custom installations in luxury residences, home cinemas, multi‑room systems, and commercial settings.

Part of the Archipel range, the Archipel 17ICD is designed to maximize sonic performance within architectural constraints. With a larger 17 cm (6.7″) coaxial driver and dedicated soft‑dome tweeter, this speaker produces rich midrange detail, extended high frequencies, and respectable low‑end response, all with coherent imaging and smooth dispersion. Whether reproducing intricate musical passages or delivering dynamic soundtracks, the Archipel 17ICD brings precision and presence to any listening environment.

---

Acoustic Engineering and Design Philosophy

Cabasse’s acoustic philosophy for the Archipel series centers on creating speakers that behave as true point sources. The Archipel 17ICD achieves this through a coaxial driver design that aligns the tweeter directly at the acoustic center of the midrange‑woofer. This approach enhances phase coherence, improves stereo imaging, and ensures uniform sound coverage across various listening positions — a crucial advantage in architectural installations where the listener is not always directly in front of the speaker.

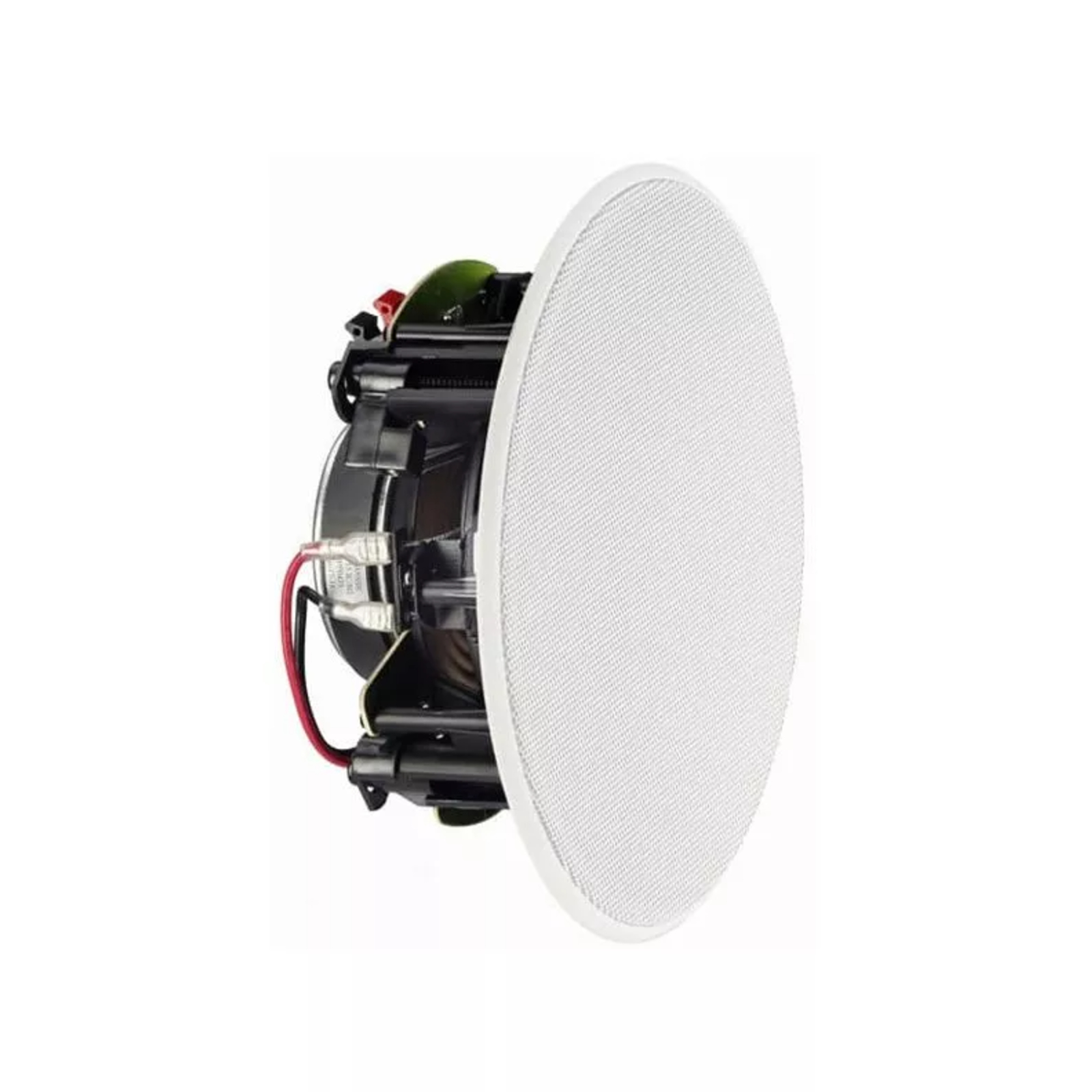

The trimless grille contributes to the speaker’s invisible aesthetic once installed. Designed to sit flush with the surface, the paintable grille can be finished to match the ceiling or wall, making the speaker blend seamlessly with any interior design. This combination of acoustic intelligence and visual discretion ensures the Archipel 17ICD performs beautifully while complementing modern architectural preferences.

---

Drivers and Acoustic Components

At the core of the Archipel 17ICD are its premium‑grade acoustic transducers:

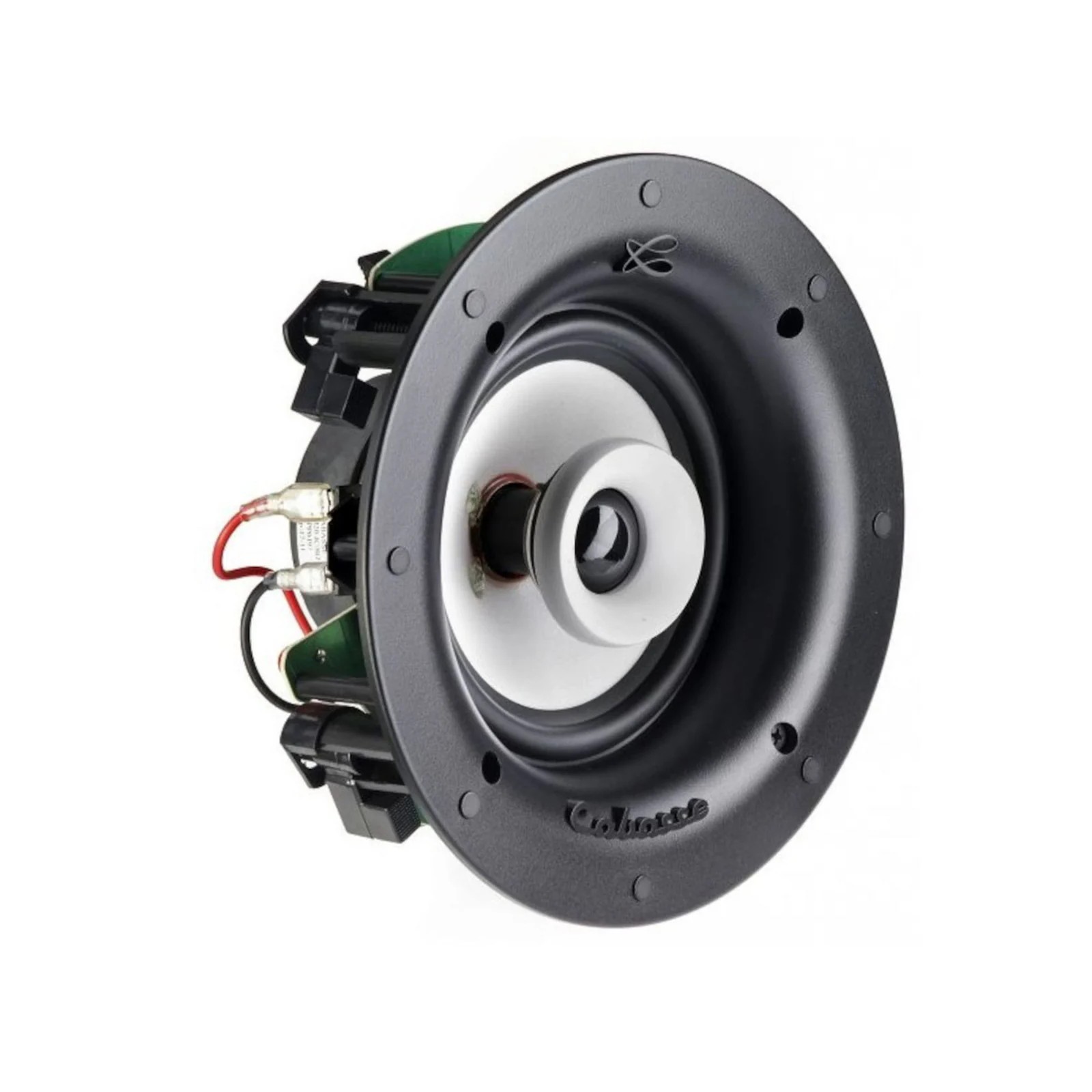

• 17M20 IC Midrange/Woofer (17 cm / 6.7″):
  The woofer cone is engineered for rigidity and controlled movement, allowing the diaphragm to deliver accurate midrange presence and deeper low‑frequency output than smaller in‑ceiling models. Its larger cone area also enhances efficiency and provides dynamic range suitable for a variety of music and cinematic content.

• DOM25 Soft‑Dome Pivoting Tweeter:
  This tweeter delivers smooth high frequencies with extended clarity while minimizing listening fatigue. The ability to pivot directs high‑frequency dispersion toward the main listening zone, optimizing detail and openness even in wider living spaces. The tweeter’s soft‑dome design ensures a natural, non‑fatiguing treble presentation.

The coaxial configuration ensures that both drivers work in harmony, producing a unified sound source with minimal phase discrepancies and excellent off‑axis performance, ideal for ceiling placements where listeners are spread across a room.

---

Sound Performance and Frequency Response

The Archipel 17ICD delivers a wide frequency response from 45 Hz to 21,500 Hz, enabling it to reproduce a broad audio spectrum with depth and articulation. This range ensures musical detail and dialog clarity across diverse content, from orchestral recordings to soundtracks and vocal performances.

• Low Frequencies:
  The 6.7″ woofer extends the low end further than smaller architectural speakers, producing grounded bass that integrates well with additional subwoofers when required. Bass remains controlled and musical, avoiding boom or muddiness.

• Midrange:
  The heart of the listening experience, the midrange remains articulate and rich, allowing vocals, instruments, and narrative elements to sound natural and present.

• High Frequencies:
  The tweeter provides extended treble response with smoothness and finesse. Its pivoting capability ensures that high‑frequency details are directed toward listeners for clarity and definition, even in expansive spaces.

This tonal balance creates an immersive and engaging sound signature that adapts easily to varying listening scenarios, whether music, film, or spoken word.

---

Power Handling and Efficiency

The Archipel 17ICD is rated for 40 W RMS of continuous power handling and a 320 W peak capability, ensuring it can handle dynamic audio content with ease. The RMS specification represents the speaker’s ability to manage consistent power delivery, while the peak rating reflects its capacity to withstand dynamic peaks without damage or distortion.

With a sensitivity of 88 dB (1 W / 1 m) and a nominal impedance of 8 ohms, the Archipel 17ICD is compatible with a wide range of amplifiers and AV receivers. This efficiency ensures that even moderate amplification can deliver impressive output levels suitable for most room sizes without strain.

The combination of generous power handling and efficient design results in a speaker that maintains composure at both low volumes and higher listening levels, making it flexible for everyday use or more dramatic cinematic playback.

---

Installation and Architectural Integration

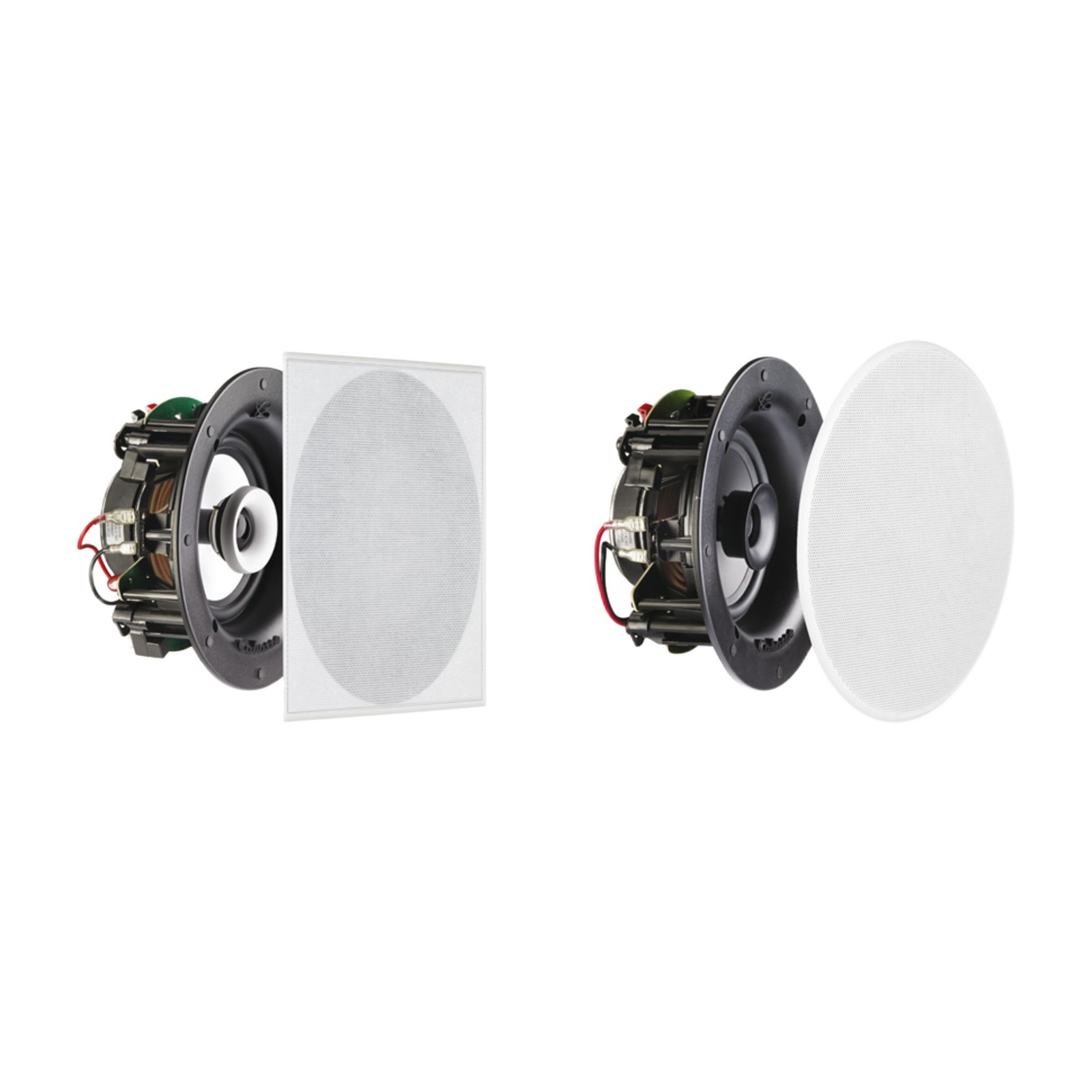

The Archipel 17ICD is engineered for seamless in‑ceiling or in‑wall installation. Its shallow mounting depth and thoughtfully designed mounting system allow integration into standard construction cavities without excessive framing or structural modification. The trimless paintable grille contributes to a minimalist visual aesthetic, enabling the speaker to disappear into the architecture once installed.

This visual discretion makes the Archipel 17ICD especially suitable for spaces where design integrity is a priority, such as modern residential interiors, luxury commercial environments, or bespoke architectural projects.

---

Applications and Use Cases

The versatility of the Archipel 17ICD makes it a compelling solution for a wide range of audio installations:

• High‑Resolution Multi‑Room Audio Systems: Ensures consistent sound quality throughout home zones.

• Home Cinema Surround and Height Channels: Improves spatial clarity and immersive audio.

• Dedicated Home Installations: Living areas, master bedrooms, kitchens, and lounges.

• Commercial and Retail Environments: Enhances background music and ambient sound.

• Custom Integration Projects: Includes hospitality venues or design‑focused commercial spaces.

Regardless of application, the Archipel 17ICD delivers a level of acoustic refinement that belies its architectural form factor.

---

Technical Specifications

Speaker Type: 2‑way In‑Ceiling / In‑Wall Architectural Speaker
Drivers:

• 1 × 17M20 IC midrange/woofer (17 cm / 6.7″)

• 1 × DOM25 soft‑dome pivoting tweeter
  Power Handling:

• RMS: 40 W

• Peak: 320 W
  Frequency Response: 45 Hz – 21,500 Hz
  Sensitivity: 88 dB (1 W / 1 m)
  Impedance: 8 Ω nominal
  Crossover Frequency: 3,500 Hz
  Dimensions: Approx. 24 × 24 × 9.7 cm
  Weight: Approx. 1.3 kg per speaker
  Mounting: In‑Ceiling / In‑Wall
  Finish: Paintable trimless grille

---

Conclusion

The Cabasse Archipel 17ICD – Trimless – 40 W RMS – 320 W Peak – 6.7″ In‑Ceiling Speakers (Pair) brings together powerful acoustic performance, flexible architectural integration, and refined aesthetics for demanding audio installations. Its enhanced low‑end support, coherent coaxial design, and pivoting tweeter deliver balanced, immersive sound across music, cinema, and ambient content. Whether for premium residential use, multi‑room audio, or bespoke commercial environments, the Archipel 17ICD stands as an elegant yet capable sonic solution that honors both form and function.
