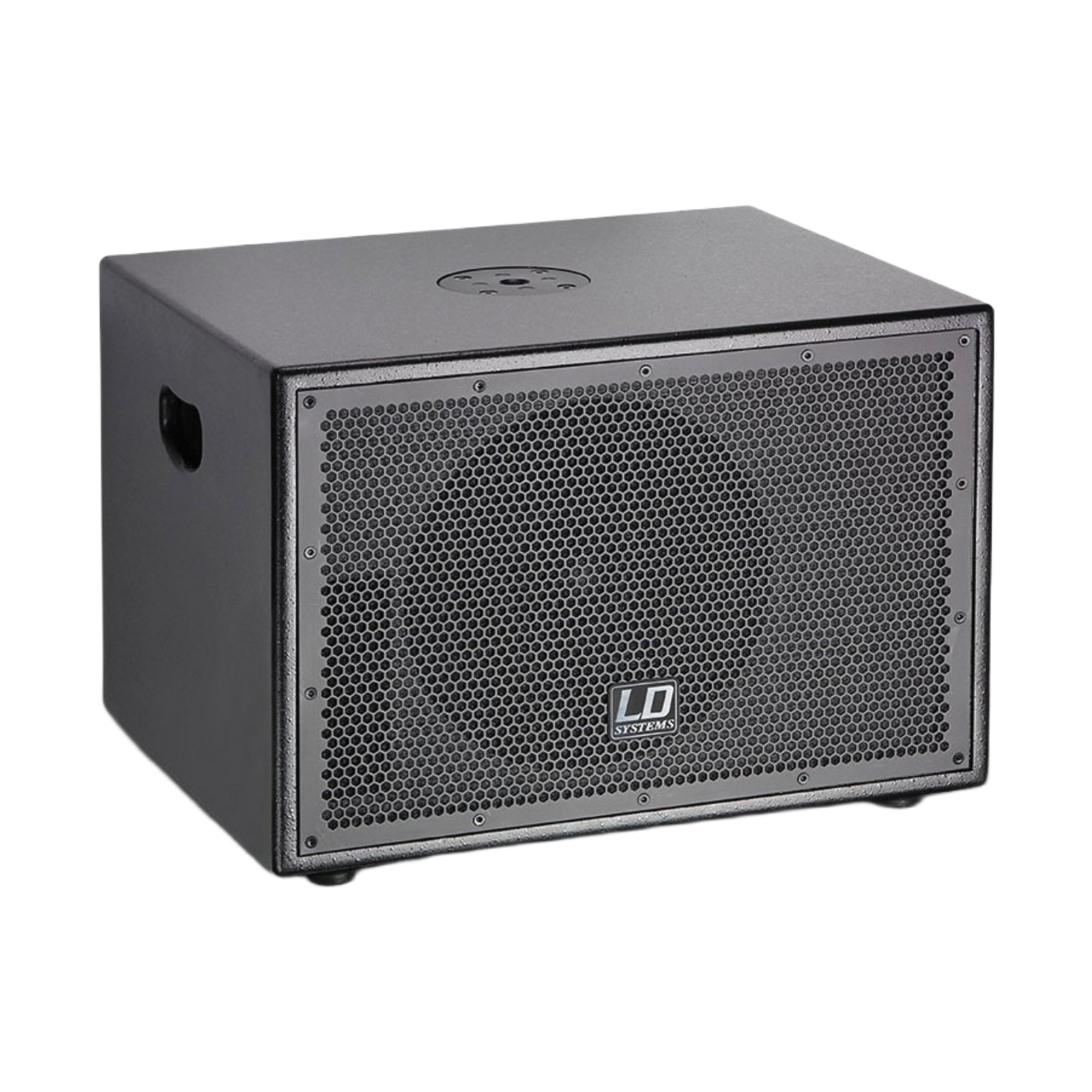

LD Systems SUB 10 A – Active Installation Subwoofer, 360W RMS, 10″ Woofer, 118 dB SPL

The LD Systems SUB 10 A is a compact active installation subwoofer designed to provide powerful low-frequency reinforcement for professional commercial audio systems. Combining a high-performance 10-inch woofer, integrated Class A/B amplification, and built-in satellite speaker amplification, the SUB 10 A serves as both a subwoofer and a complete system controller for background music and distributed audio applications.

Designed for restaurants, cafés, retail stores, hotels, conference rooms, bars, lounges, fitness studios, and corporate installations, the SUB 10 A delivers deep, controlled bass while reducing system complexity through its integrated amplifier architecture.

Its discreet design, reliable operation, and installation-friendly features make it an excellent solution for projects where space efficiency, sound quality, and long-term reliability are essential.

Key Features of the LD Systems SUB 10 A

Total System Power: 360W RMS

Subwoofer Configuration: 1 × 10″ Custom Low-Frequency Driver

Amplifier Type: Integrated Class A/B Amplifier

Maximum SPL: 118 dB

Frequency Response: 40 Hz – 150 Hz

Enclosure Design: Bass Reflex Cabinet

System Function: Active Subwoofer with Integrated Satellite Amplification

Satellite Amplifier Outputs: 2 Channels for Passive Satellite Speakers

Built-In Active Crossover: Optimized Frequency Distribution

Installation Type: Fixed Commercial Audio Installation

Cabinet Construction: MDF Wood Enclosure

Finish: Black

System Composition & Technical Overview

The SUB 10 A is designed as the central component of a compact installation sound system.

Unlike conventional active subwoofers that only power themselves, the SUB 10 A includes a dedicated 3-channel amplifier section capable of driving both the internal subwoofer and compatible passive satellite speakers.

This significantly reduces installation costs and simplifies system design by eliminating the need for separate external amplifiers.

Active Subwoofer Section

The low-frequency section utilizes a custom-engineered 10-inch woofer housed inside a carefully tuned bass reflex enclosure.

Key benefits include:

• Extended low-frequency response down to 40 Hz
• Improved bass efficiency
• Reduced distortion
• Enhanced low-end impact
• Consistent performance at higher output levels

The bass reflex design allows the subwoofer to produce deeper bass than a similarly sized sealed enclosure while maintaining excellent efficiency.

Integrated Amplification System

The integrated Class A/B amplifier delivers a total output of 360 watts RMS.

Amplification is distributed across three channels:

• Dedicated amplifier channel for the subwoofer
• Left satellite amplifier channel
• Right satellite amplifier channel

This architecture allows installers to connect passive satellite speakers directly to the SUB 10 A without requiring additional amplification equipment.

Benefits include:

• Simplified installation
• Reduced equipment costs
• Cleaner rack layouts
• Lower power consumption
• Improved system integration

Sound Performance

Despite its compact dimensions, the LD Systems SUB 10 A delivers impressive low-frequency performance suitable for a wide range of commercial applications.

Deep and Controlled Bass

The custom 10-inch woofer provides strong bass extension down to 40 Hz, delivering warmth and fullness to music playback without overwhelming the listening environment.

This makes the SUB 10 A particularly effective for:

• Background music systems
• Lounge environments
• Retail stores
• Hospitality venues
• Restaurants
• Corporate facilities

Maximum Output Capability

With a maximum sound pressure level of 118 dB, the SUB 10 A provides more than enough output for most small and medium-sized commercial installations.

The high SPL capability ensures:

• Consistent performance during busy operating hours
• Clear low-frequency reproduction
• Adequate headroom
• Reduced risk of distortion

Balanced System Integration

Thanks to the built-in active crossover, the subwoofer works seamlessly with connected satellite speakers.

The crossover automatically directs:

• Low frequencies to the subwoofer
• Mid and high frequencies to satellite speakers

This improves overall system efficiency while reducing strain on the satellite speakers.

The result is:

• Cleaner vocals
• Improved speech intelligibility
• Better musical detail
• Stronger bass performance
• Increased system reliability

Built-In Active Crossover

A major advantage of the SUB 10 A is its integrated active crossover network.

The crossover is responsible for dividing the audio spectrum between the subwoofer and satellite speakers.

Advantages include:

Improved Clarity

Satellite speakers are relieved from reproducing deep bass frequencies, allowing them to focus on midrange and high-frequency content.

Higher Efficiency

The system operates more efficiently because each driver reproduces only the frequencies it is designed to handle.

Reduced Distortion

By minimizing unnecessary driver excursion in satellite speakers, distortion is significantly reduced.

Enhanced Reliability

The crossover helps protect connected speakers from excessive low-frequency energy.

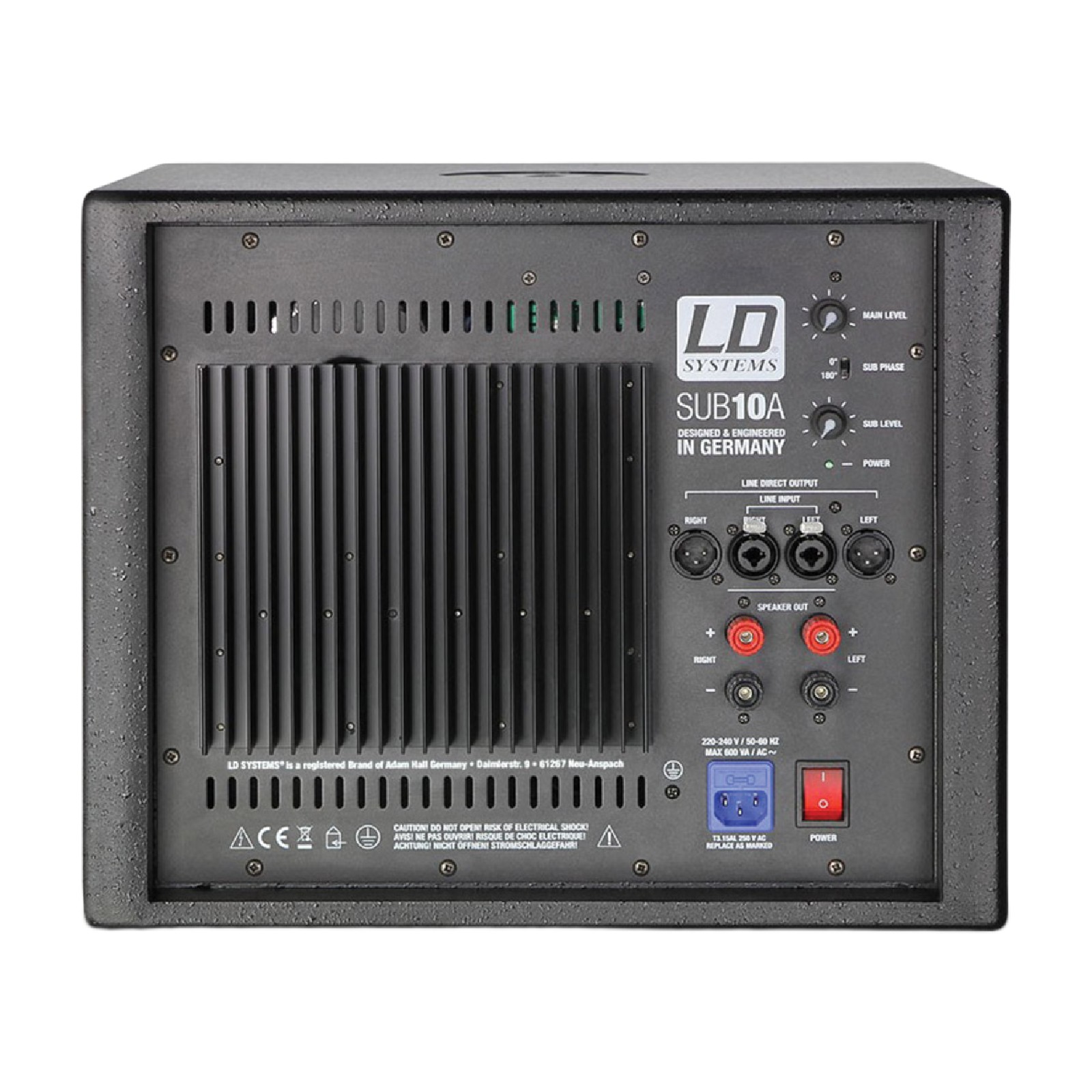

Connectivity & Installation Flexibility

The SUB 10 A offers flexible connectivity options for integration into professional audio systems.

It can be connected to:

• Mixers
• Media players
• Commercial audio controllers
• DSP processors
• Paging systems
• Multi-zone audio solutions
• Background music systems

Its integrated amplifier design greatly simplifies wiring requirements and reduces installation time.

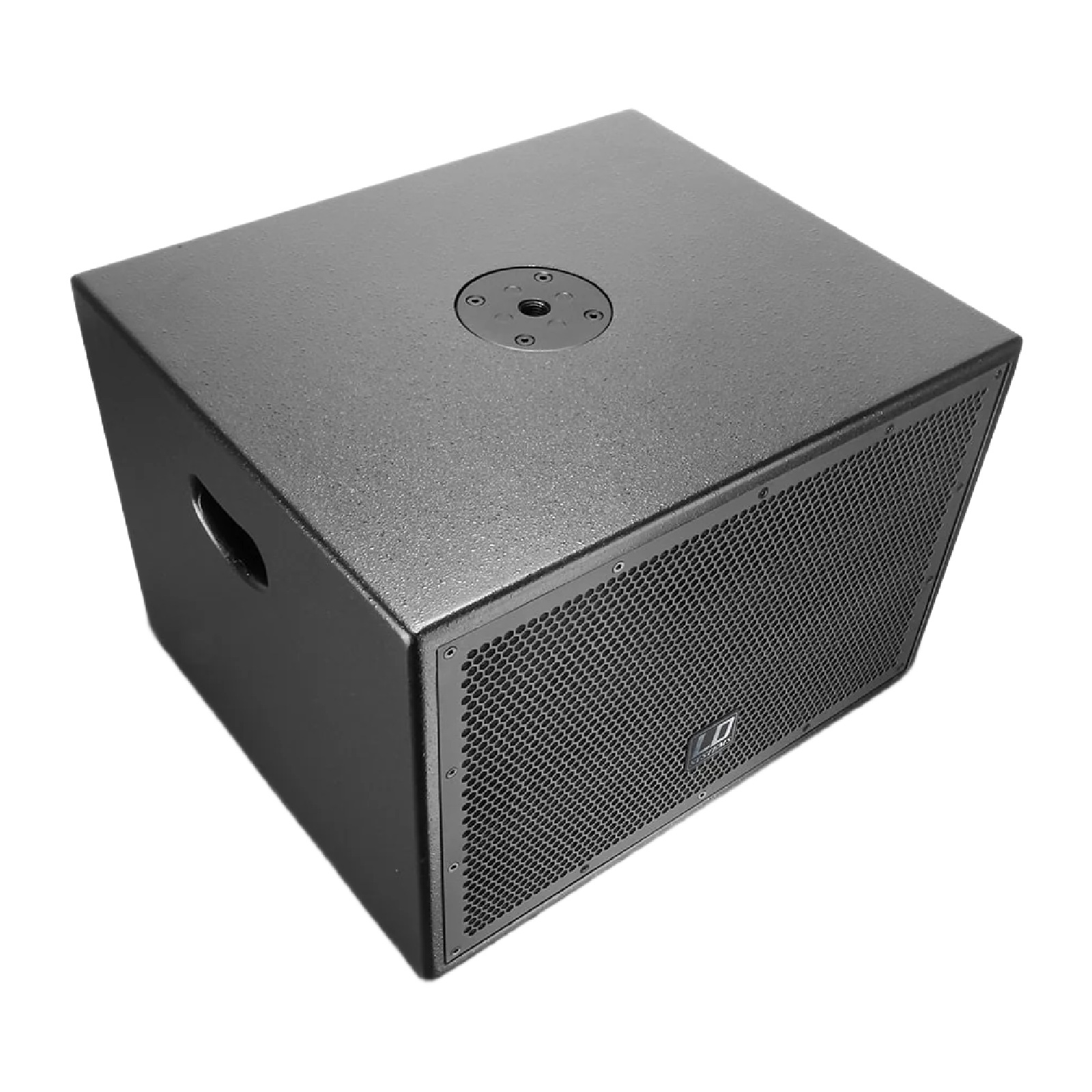

Cabinet Construction

The enclosure is constructed from durable MDF wood, chosen for its excellent acoustic characteristics and long-term reliability.

Benefits of the MDF cabinet include:

• Reduced resonance
• Improved bass accuracy
• Greater structural rigidity
• Long service life
• Professional appearance

Its compact footprint allows installation in discreet locations such as:

• Under counters
• Behind furniture
• Inside cabinetry
• Equipment rooms
• Dedicated installation spaces

Protection Systems

To ensure reliable operation during continuous daily use, the SUB 10 A incorporates integrated protection circuitry.

Protection features help guard against:

• Thermal overload
• Excessive signal levels
• Amplifier stress
• Speaker damage

These systems allow the subwoofer to operate reliably in demanding commercial environments where music may play for many hours every day.

Ideal Applications

Restaurants & Cafés

Provides warm, controlled bass that enhances the customer experience without becoming intrusive.

Retail Stores

Adds depth and energy to background music while maintaining excellent clarity.

Hotels & Hospitality Venues

Suitable for lounges, reception areas, dining spaces, and common areas.

Corporate Facilities

Improves audio quality for presentations, meetings, and background music systems.

Bars & Lounges

Delivers powerful low-frequency reinforcement while maintaining a clean and elegant installation.

Fitness Studios

Provides the bass impact required for workout music and instructor-led classes.

Technical Specifications

Product Type: Active Installation Subwoofer

Woofer: 1 × 10″ Custom Low-Frequency Driver

Amplifier Type: Class A/B

Total RMS Power: 360 W

Maximum SPL: 118 dB

Frequency Response: 40 Hz – 150 Hz

Crossover: Integrated Active Crossover

Satellite Amplification: Integrated 2-Channel Amplifier

Cabinet Design: Bass Reflex

Construction Material: MDF

Installation Type: Fixed Installation

Finish: Black

Final Summary

The LD Systems SUB 10 A – Active Installation Subwoofer, 360W RMS, 10″ Woofer, 118 dB SPL is a versatile all-in-one installation bass solution that combines deep low-frequency performance, integrated amplification, and professional reliability in a compact enclosure.

By functioning as both a powerful active subwoofer and a satellite speaker amplifier, it simplifies system design while delivering the rich, controlled bass required for modern commercial audio installations. Whether deployed in restaurants, retail stores, hotels, corporate facilities, or hospitality venues, the SUB 10 A provides an efficient and professional foundation for high-quality sound reproduction.
