Allen & Heath Avantis Solo – 96kHz Compact Digital Mixing Console with 64-Channels & Ultra-Low Latency

Allen & Heath Avantis Solo – Compact 96kHz Digital Mixing Console

Introduction

The Allen & Heath Avantis Solo is a professional 96kHz digital mixing console designed for live sound, touring, broadcast, and installed audio applications where high performance is required in a compact form factor.

It is built on the same XCVI FPGA engine used in larger systems, delivering ultra-low latency, high-resolution audio processing, and advanced routing capabilities in a smaller footprint designed for engineers who need full power in a more portable setup.

As part of the professional ecosystem of Allen & Heath, the Avantis Solo maintains full compatibility with stageboxes, digital networks, and expansion systems used in large-scale audio production.

---

Core Digital Mixing Engine

At the heart of the Avantis Solo is a 96kHz FPGA-based processing engine that delivers high-end audio performance with extremely low latency of approximately 0.7ms.

The system provides:

• 64 input channels with full processing
• 42 mix buses for flexible routing
• High-end EQ, dynamics, and filtering tools
• Advanced digital signal processing with DEEP integration support

This makes it suitable for complex live productions where precision and stability are critical.

---

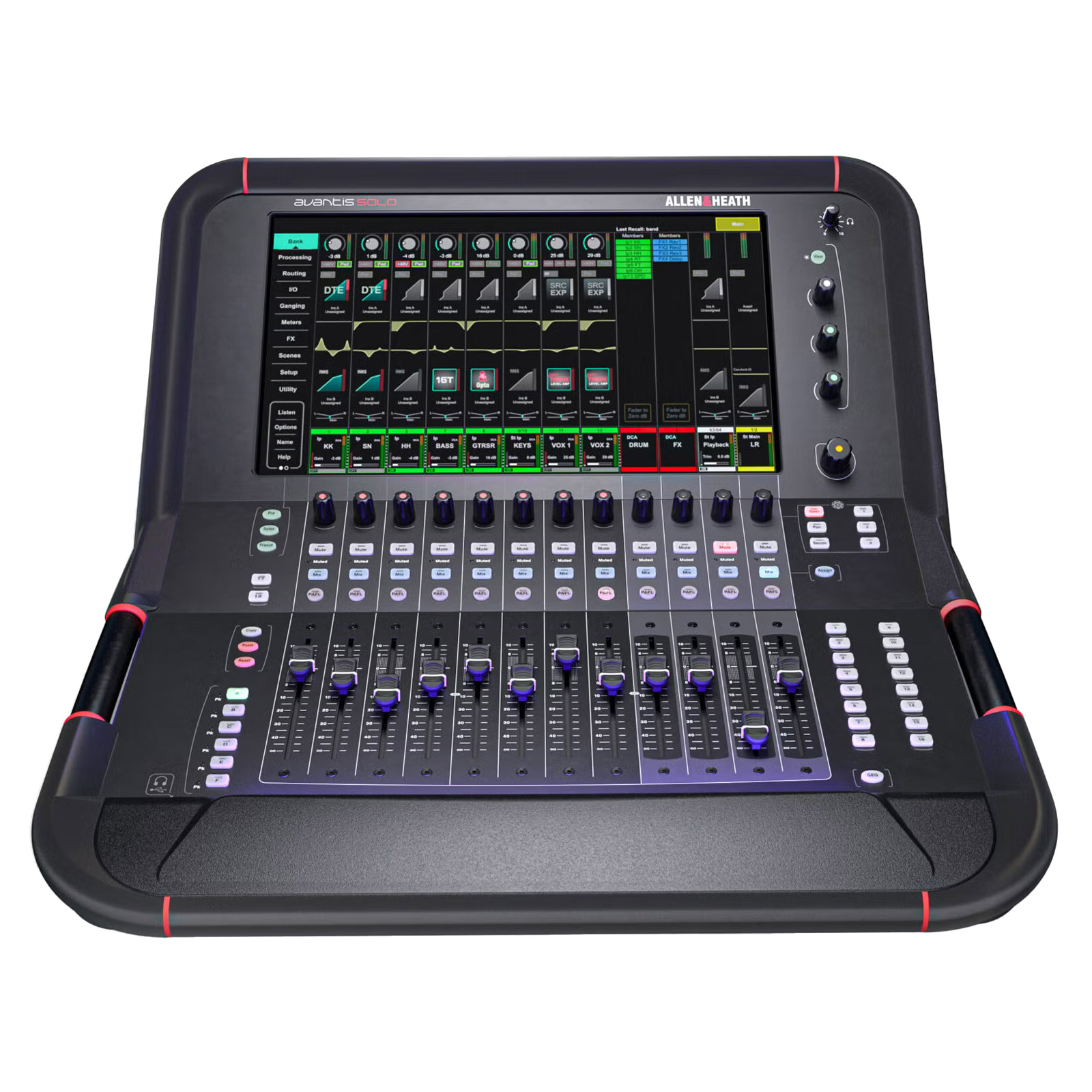

Compact Console Design

The Avantis Solo is designed as a compact version of the Avantis platform, reducing physical size while maintaining the same processing power.

It includes:

• 15.6” full HD touchscreen interface
• 12 physical faders with multiple layers
• Assignable SoftKeys and rotary controls
• Lightweight rugged chassis for touring environments

This combination allows engineers to operate a full-scale digital system in a much smaller control surface footprint.

---

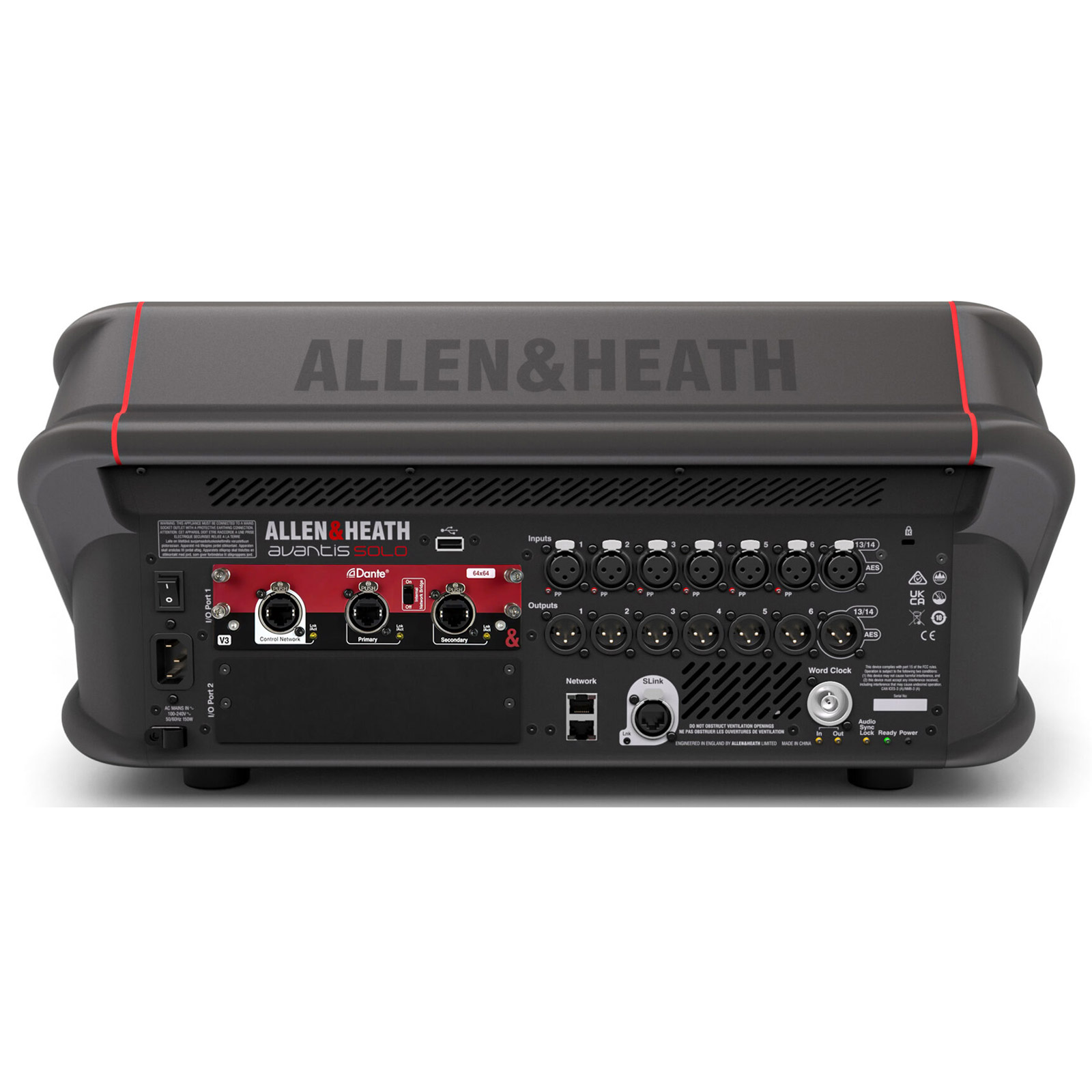

Audio Routing & Connectivity

The system offers flexible connectivity options for integration into professional audio networks.

Key I/O includes:

• 6 analog XLR inputs
• 6 analog XLR outputs
• Stereo AES digital input and output
• SLink port for remote stagebox integration
• Dual I/O card slots for network expansion

It supports expansion via professional audio networking formats such as Dante, MADI, and gigaACE depending on installed option cards.

---

System Integration

The Avantis Solo is designed to integrate seamlessly into larger Allen & Heath ecosystems.

It is fully compatible with:

• DX series stageboxes
• GX expanders
• ME personal monitoring systems
• Other Avantis and dLive systems via digital networking

This allows engineers to scale systems from small venues to large touring setups using the same workflow.

---

Audio Processing Features

The console includes advanced DSP tools designed for professional mixing environments:

• High-precision parametric EQ
• Dynamic compression and gating
• Delay alignment tools
• Automatic mic mixing (AMM)
• FX processing with onboard rack effects
• Scene recall and show management

These tools allow full control over live audio in complex environments such as concerts, theaters, and broadcast productions.

---

Performance & Sound Quality

The Avantis Solo is designed to deliver high-resolution, transparent audio performance with consistent stability across all channels.

Its XCVI processing engine ensures:

• Extremely low latency (0.7ms)
• High internal processing resolution
• Phase-coherent signal handling
• Clean and precise mixing performance

This makes it suitable for demanding live sound environments where audio integrity is essential.

---

Control & Workflow

The system uses a modern touchscreen-based workflow combined with physical controls for fast and intuitive operation.

Engineers benefit from:

• Fully customizable layout
• Gesture-based touchscreen navigation
• Assignable controls for quick access
• Fast scene and show recall system

This hybrid control approach improves speed during live mixing situations.

---

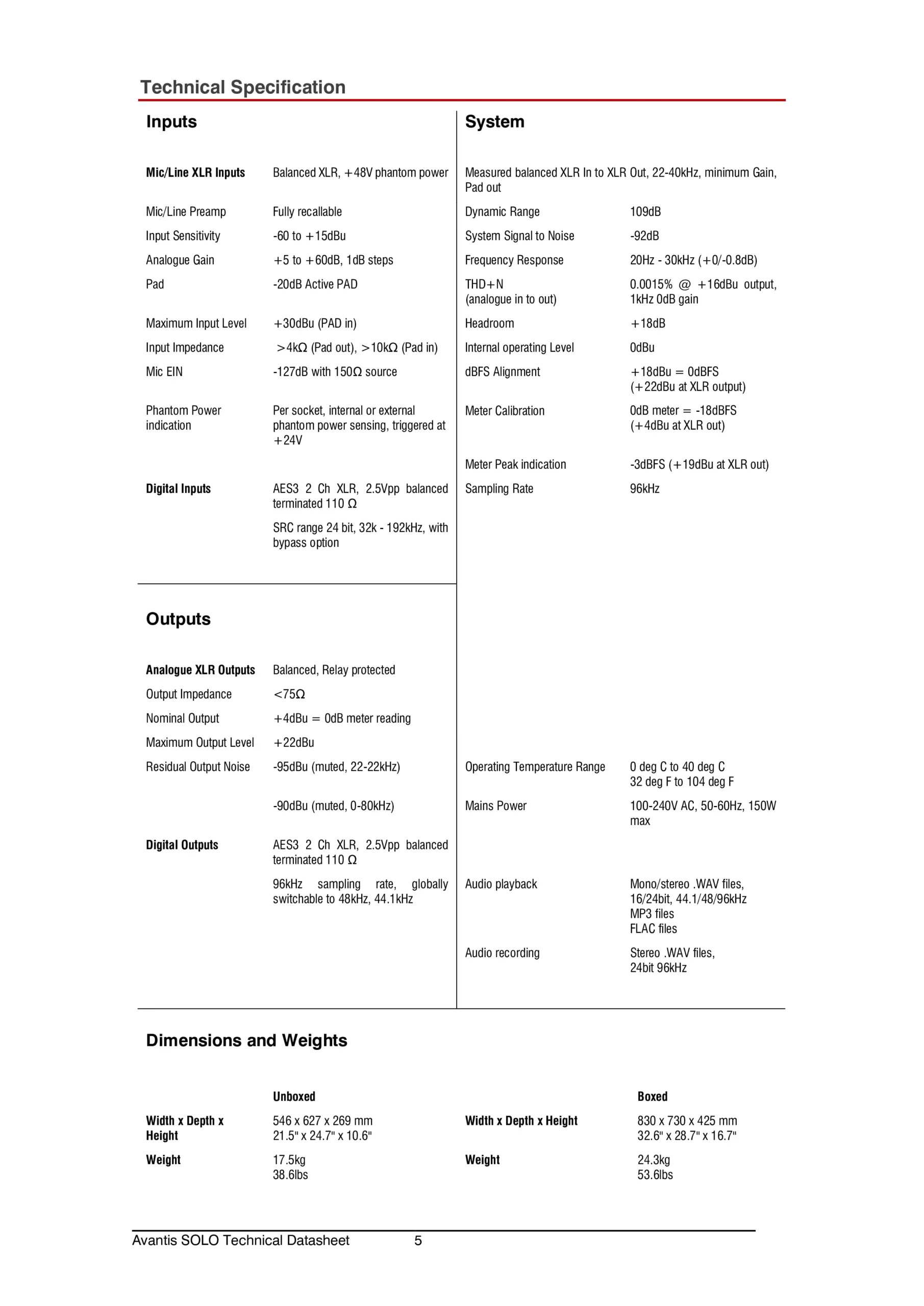

Technical Specifications

• Product Type: Digital Mixing Console
• Processing Engine: XCVI FPGA
• Sample Rate: 96kHz
• Latency: Approximately 0.7ms
• Input Channels: 64 Full Processing Channels
• Mix Buses: 42 Configurable Buses
• Display: 15.6″ Full HD Touchscreen
• Faders: 12 Motorized Faders with Multiple Layers
• Local I/O: 6 XLR Inputs / 6 XLR Outputs
• Digital I/O: AES Stereo Input & Output
• Networking: SLink + Dual Option Card Slots
• Processing: EQ, Dynamics, FX, AMM, Delay & Routing
• Control: Touchscreen, SoftKeys & Rotary Encoders

---

Use Cases

The Avantis Solo is widely used in:

• Live concert sound reinforcement
• Touring productions
• Theater and performing arts venues
• Houses of worship
• Broadcast and AV installations
• Corporate events and conferences

It is designed for engineers who need a powerful console in a compact and portable format.

---

Why It Stands Out

The strength of the Avantis Solo lies in its ability to deliver flagship-level processing power in a reduced footprint.

It offers:

• Full Avantis processing engine
• Compact physical design
• Professional-grade routing flexibility
• Scalable integration with large systems

This makes it a strong solution for both touring engineers and installed sound environments.

---

Conclusion

The Allen & Heath Avantis Solo is a powerful 96kHz digital mixing console that combines high-end processing, flexible routing, and compact design in one professional system.

With 64-channel processing, ultra-low latency, and deep integration capabilities, it delivers a complete mixing solution for modern live sound environments where performance and portability are both essential.
