Allen & Heath ZEDi-8 – Compact 8-Channel Hybrid Analog Mixer with USB Audio Interface 24-bit/96kHz

Allen & Heath ZEDi-8 – Compact Hybrid Analog Mixer

Introduction

The Allen & Heath ZEDi-8 is a compact 8-channel hybrid analog mixer designed for musicians, content creators, home studios, podcast production, streaming setups, and small live sound applications.

It combines the natural workflow of an analog mixer with the flexibility of a built-in 24-bit / 96kHz USB audio interface, making it an ideal all-in-one solution for recording, mixing, and playback.

Built with Allen & Heath’s professional-grade GSPre preamps, the ZEDi-8 delivers clean, transparent sound with low noise, high headroom, and dependable performance in both studio and live environments.

---

Hybrid Analog Mixer & USB Audio Interface

The ZEDi-8 operates as both a traditional analog mixer and a USB audio interface, giving users the flexibility to mix live sources and record directly into a computer from one compact unit.

• Analog mixing for live sound and monitoring
• USB audio interface for computer recording
• 24-bit / 96kHz high-resolution audio conversion
• Simple integration with DAW software
• Ideal for streaming, podcasting, and music production

---

Audio Architecture & Channel Layout

The mixer provides an efficient 8-channel input structure suitable for vocals, instruments, keyboards, media players, and computer audio.

• 2 XLR microphone preamp inputs
• 2 Hi-Z / line inputs for instruments
• 2 stereo line input pairs
• Stereo main mix output

Each mono channel includes essential control tools for clean gain staging and fast sound shaping.

• Gain control
• High-pass filter
• 2-band EQ
• Pan control
• Level control

---

USB Audio Recording

One of the key advantages of the ZEDi-8 is its integrated USB interface, which allows users to record directly into a computer without needing a separate audio interface.

• 2-in / 2-out USB audio routing
• 24-bit / 96kHz audio quality
• Plug-and-play connectivity
• Compatible with Mac and Windows workflows
• Direct recording into DAWs

---

Professional GSPre Microphone Preamps

The ZEDi-8 is equipped with Allen & Heath’s renowned GSPre microphone preamps, delivering the same design philosophy found in the company’s professional live consoles.

These preamps provide:

• Low-noise performance
• Wide dynamic range
• Excellent headroom
• Natural, transparent sound reproduction
• Professional-quality recording performance

Whether recording vocals, acoustic guitars, podcasts, or instruments, the GSPre preamps ensure exceptional clarity and musicality.

---

Hi-Z Instrument Inputs

The ZEDi-8 includes dedicated Hi-Z instrument inputs, allowing electric guitars and basses to connect directly without requiring an external DI box.

This makes the mixer an excellent choice for:

• Guitarists
• Bass players
• Singer-songwriters
• Home recording studios
• Mobile recording setups

---

Analog Processing

Each mono channel includes practical analog processing tools that allow fast adjustments during recording or live performances.

• 2-band EQ
• High-pass filter
• Gain control
• Pan control
• Smooth level adjustment

This straightforward layout makes the mixer easy to operate for both beginners and experienced audio engineers.

---

Build Quality & Design

Designed for musicians on the move, the ZEDi-8 features a rugged metal chassis capable of withstanding daily transportation and professional use.

Despite its compact footprint, it offers a durable construction, professional connectors, and high-quality controls, making it equally suitable for desktop studios and portable live rigs.

---

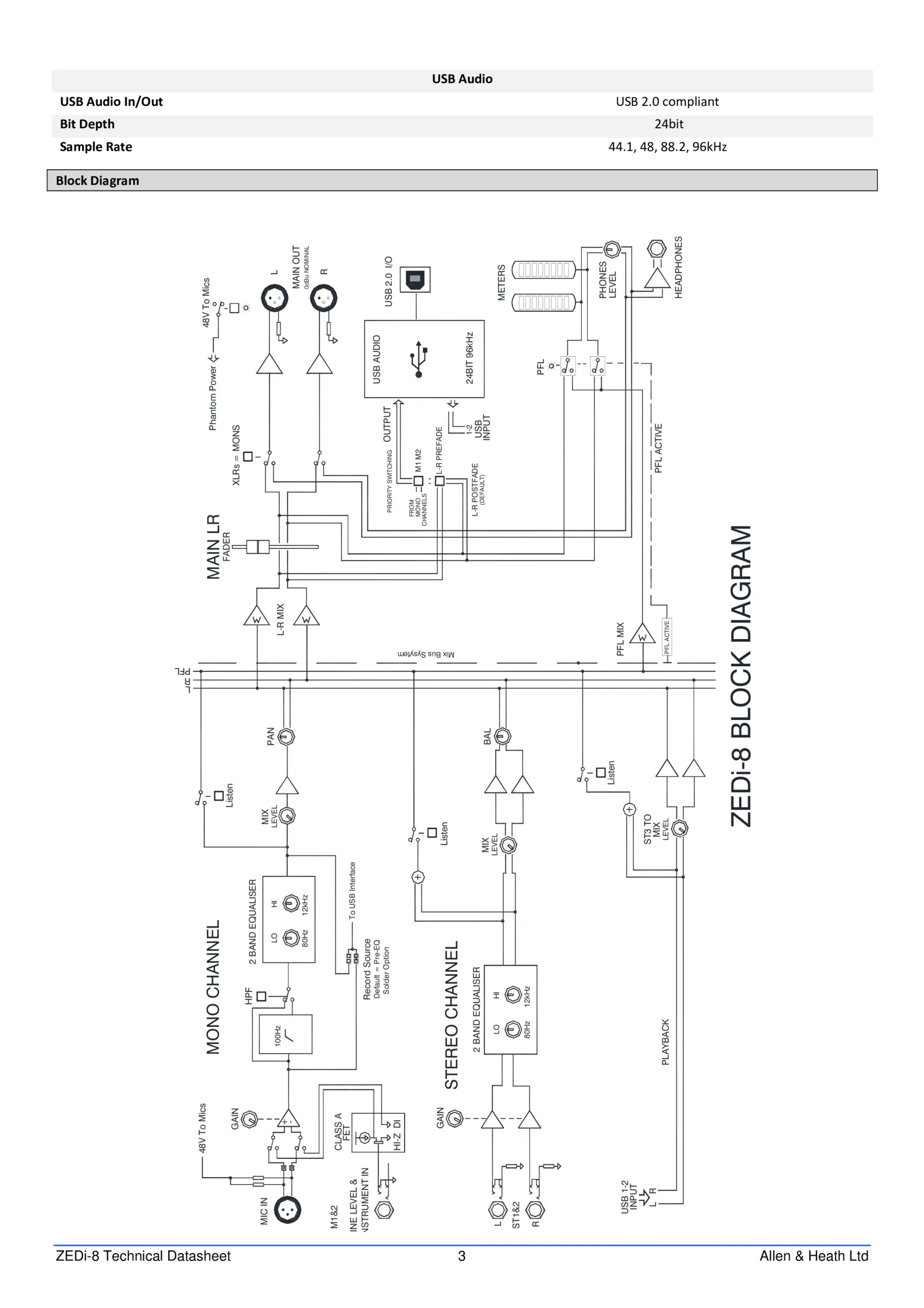

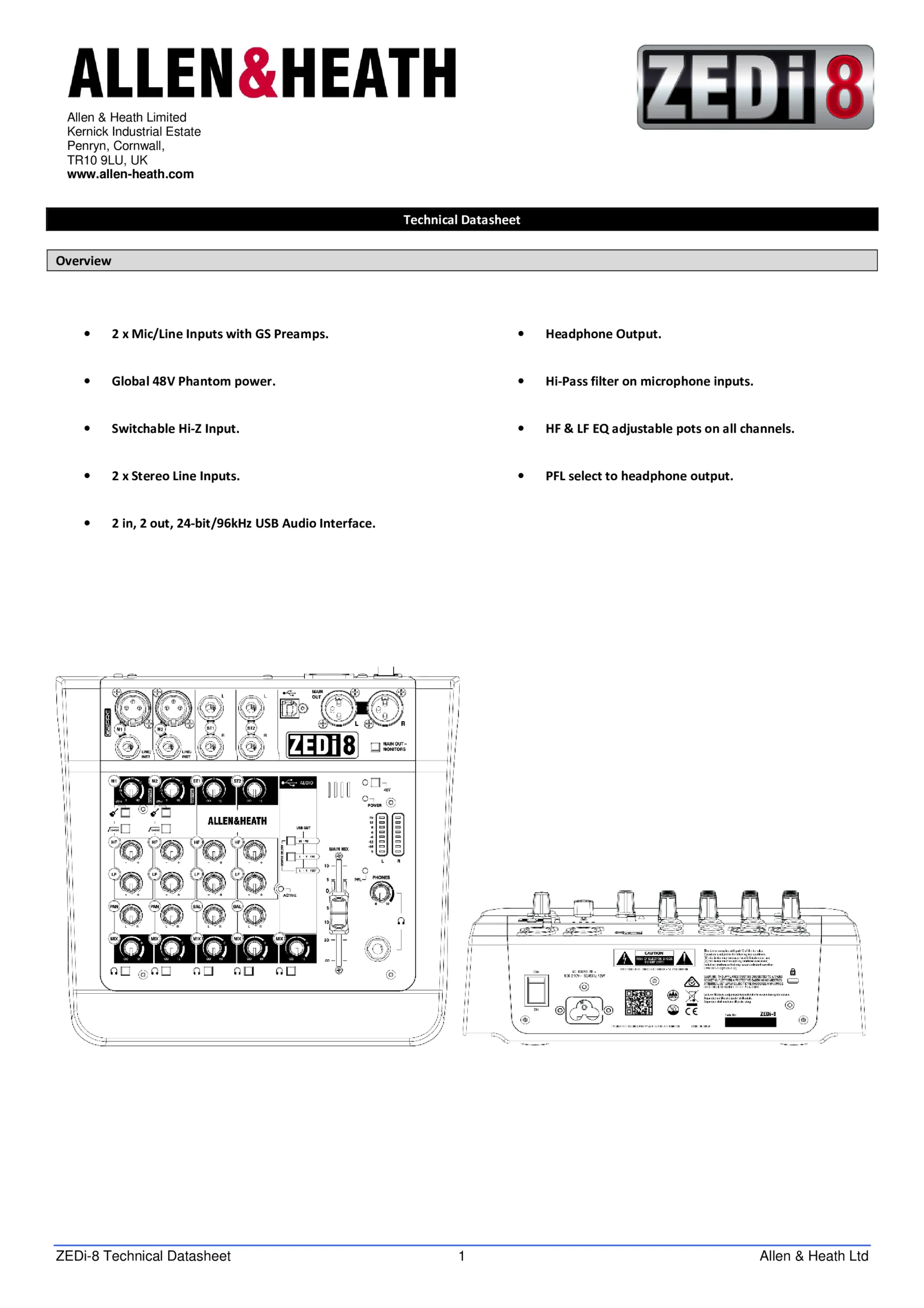

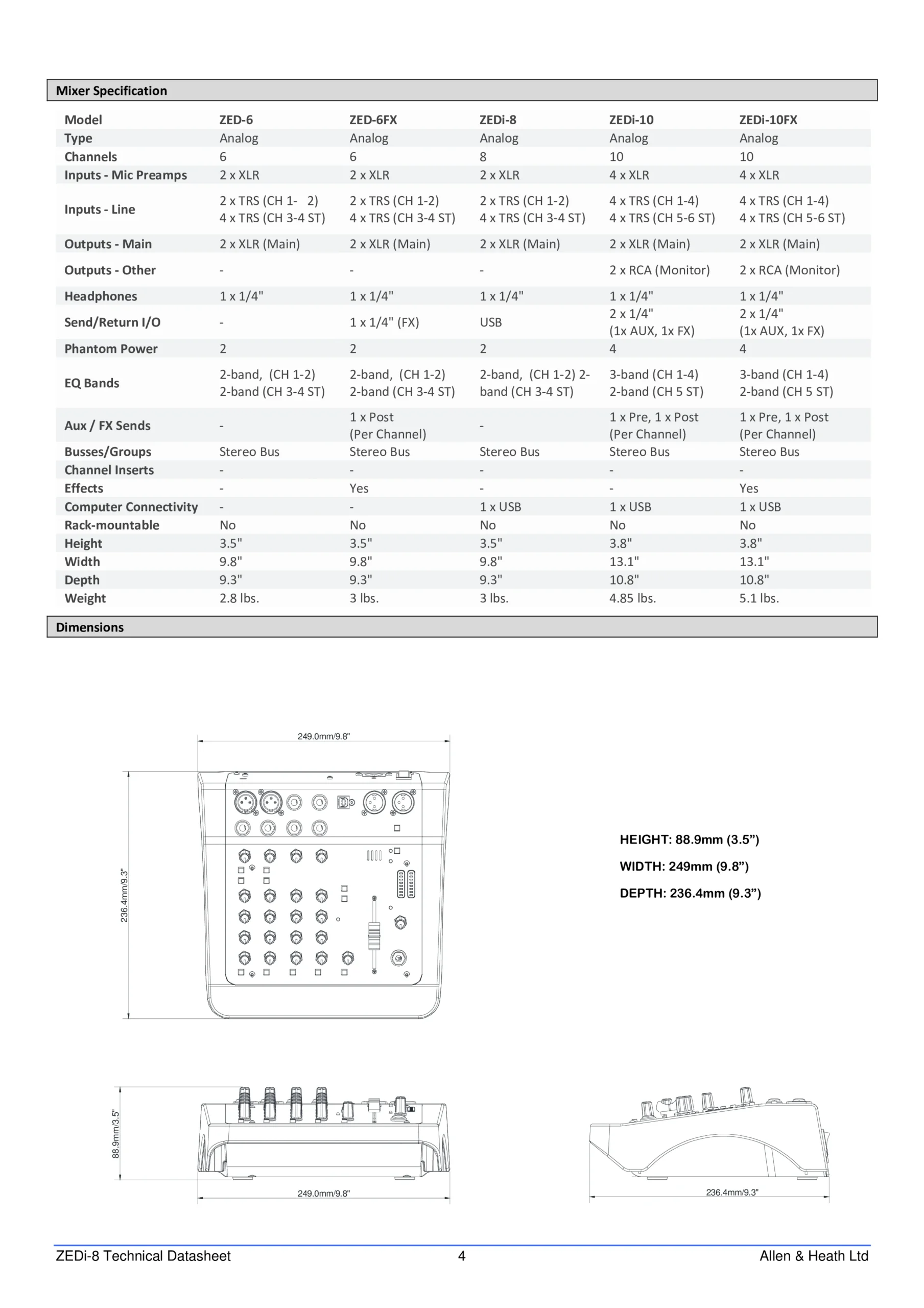

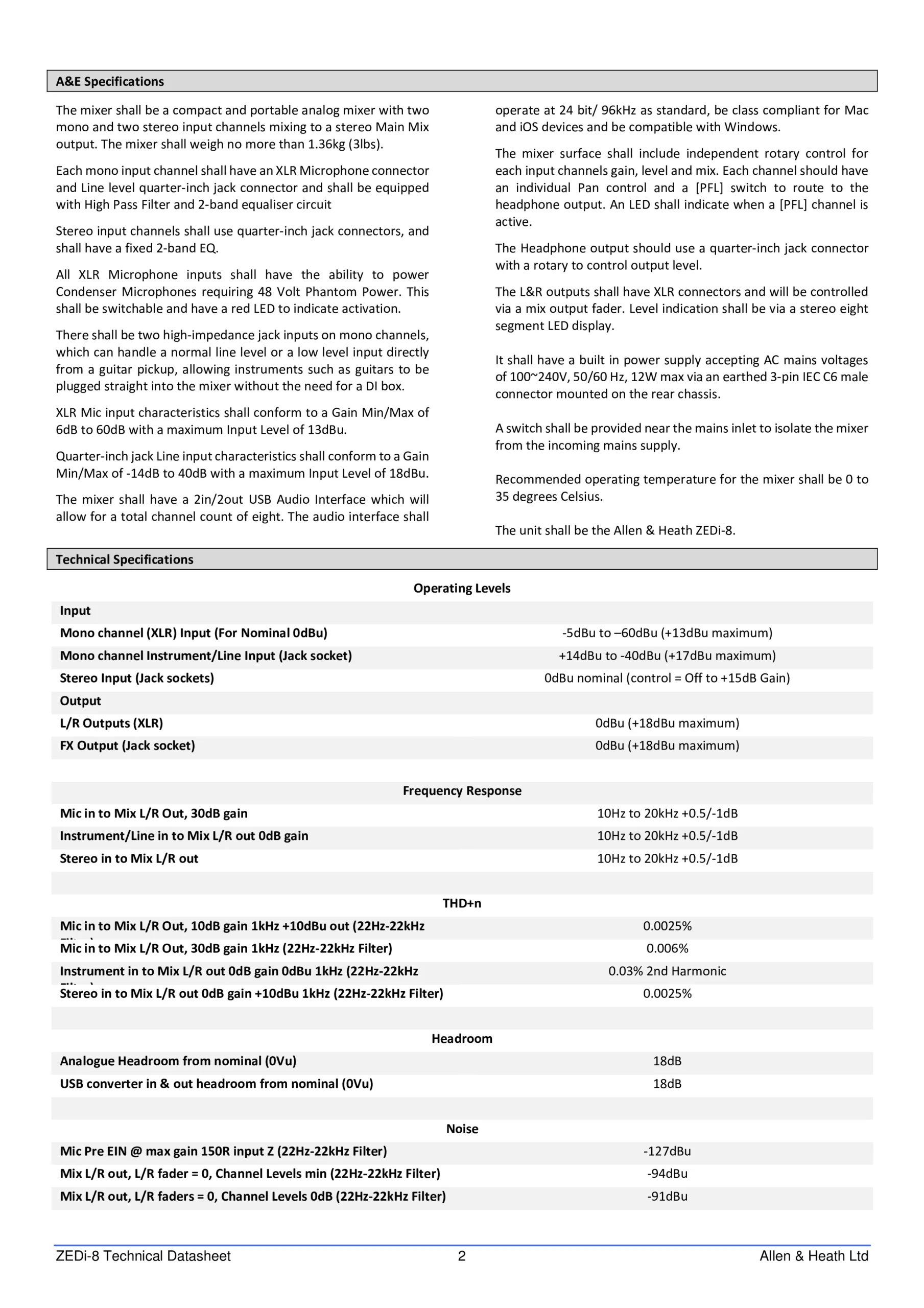

Technical Specifications

Specification	Details
Product Type	Hybrid Analog Mixer with USB Audio Interface
Input Channels	8 Channels
Microphone Preamps	2 GSPre Microphone Preamps
Instrument Inputs	2 Hi-Z Inputs
Stereo Inputs	2 Stereo Line Input Pairs
USB Audio	2-In / 2-Out, 24-bit / 96kHz
Equalizer	2-Band EQ on Mono Channels
High-Pass Filter	Yes
Main Outputs	Stereo XLR Outputs
Headphone Output	Dedicated Headphone Monitoring
Construction	Compact Metal Chassis

---

Applications

The Allen & Heath ZEDi-8 is ideal for:

• Home recording studios
• Podcast production
• Content creation
• Music streaming
• Singer-songwriters
• Mobile recording rigs
• Small live performances
• Educational environments

---

Why Choose the Allen & Heath ZEDi-8?

The ZEDi-8 successfully combines professional analog mixing with high-quality digital recording in one compact device.

Its GSPre preamps, Hi-Z instrument inputs, USB recording capability, rugged construction, and intuitive workflow make it one of the best hybrid compact mixers available for musicians, creators, and home studio users.

---

Conclusion

The Allen & Heath ZEDi-8 delivers professional audio quality in a compact format that is equally suited for recording, streaming, podcasting, and live sound reinforcement. With premium microphone preamps, high-resolution USB recording, and reliable analog performance, it offers outstanding value for musicians and content creators alike.
