Introduction

The Allen & Heath AHM-16 is a professional audio matrix processor (DSP system) designed for installed sound applications where flexible routing, zoning, and audio management are required.

It belongs to the installed audio ecosystem of Allen & Heath, and is built to deliver scalable, reliable, and high-performance audio processing for commercial environments.

The system is not a traditional mixer. Instead, it functions as a central audio brain that distributes and processes audio across multiple zones with precision and control.

---

Core Function: Audio Matrix Processing

At its core, the AHM-16 is a 16×16 digital matrix processor.

This means:

• 16 inputs can be routed to
• 16 outputs independently

Each input and output can be processed, mixed, and controlled separately.

This makes the system ideal for environments where different areas require different audio sources or volume levels.

---

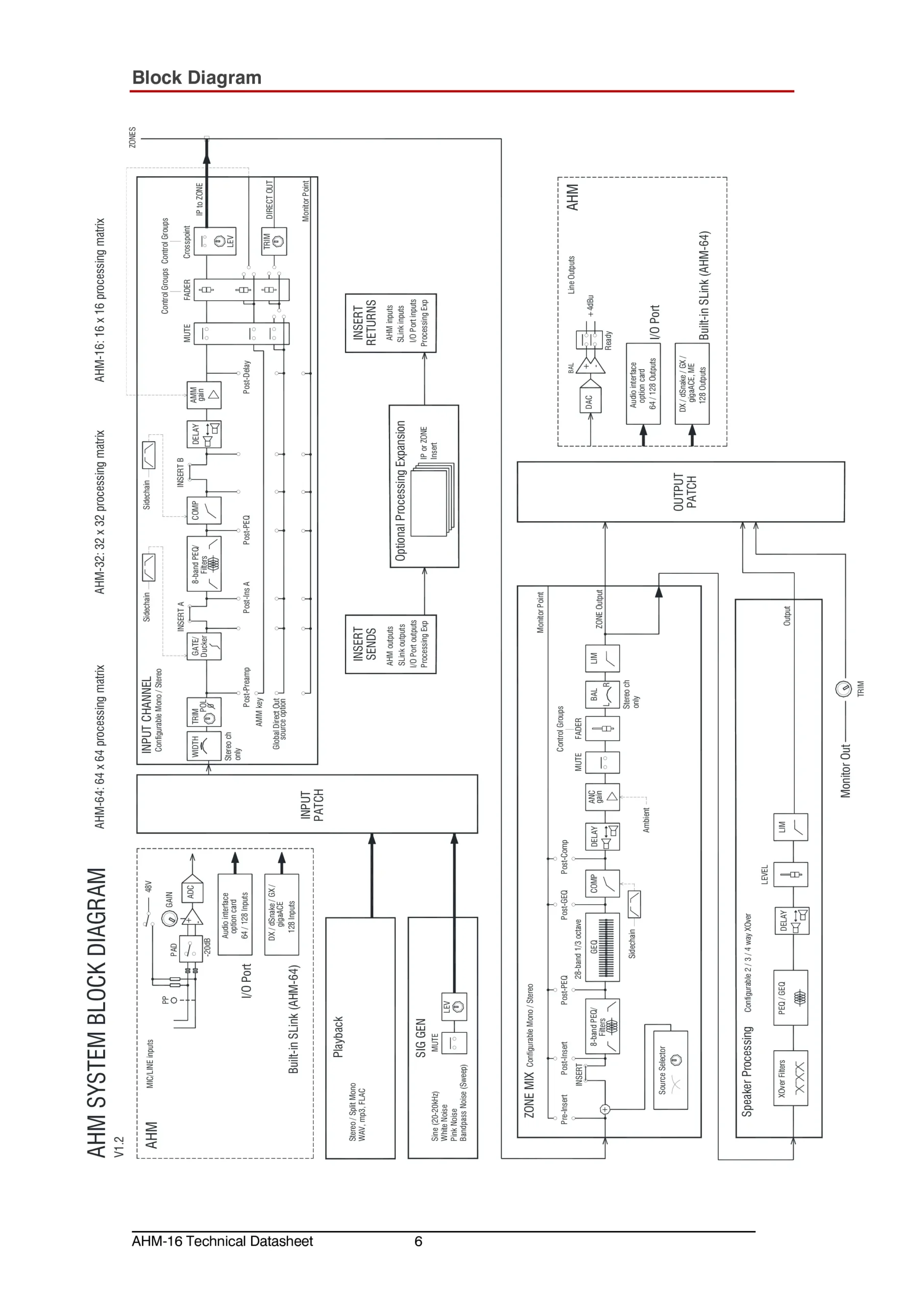

System Architecture & Processing Power

The AHM-16 is built on a high-performance DSP engine operating at 96kHz processing quality, ensuring low latency and high clarity audio distribution.

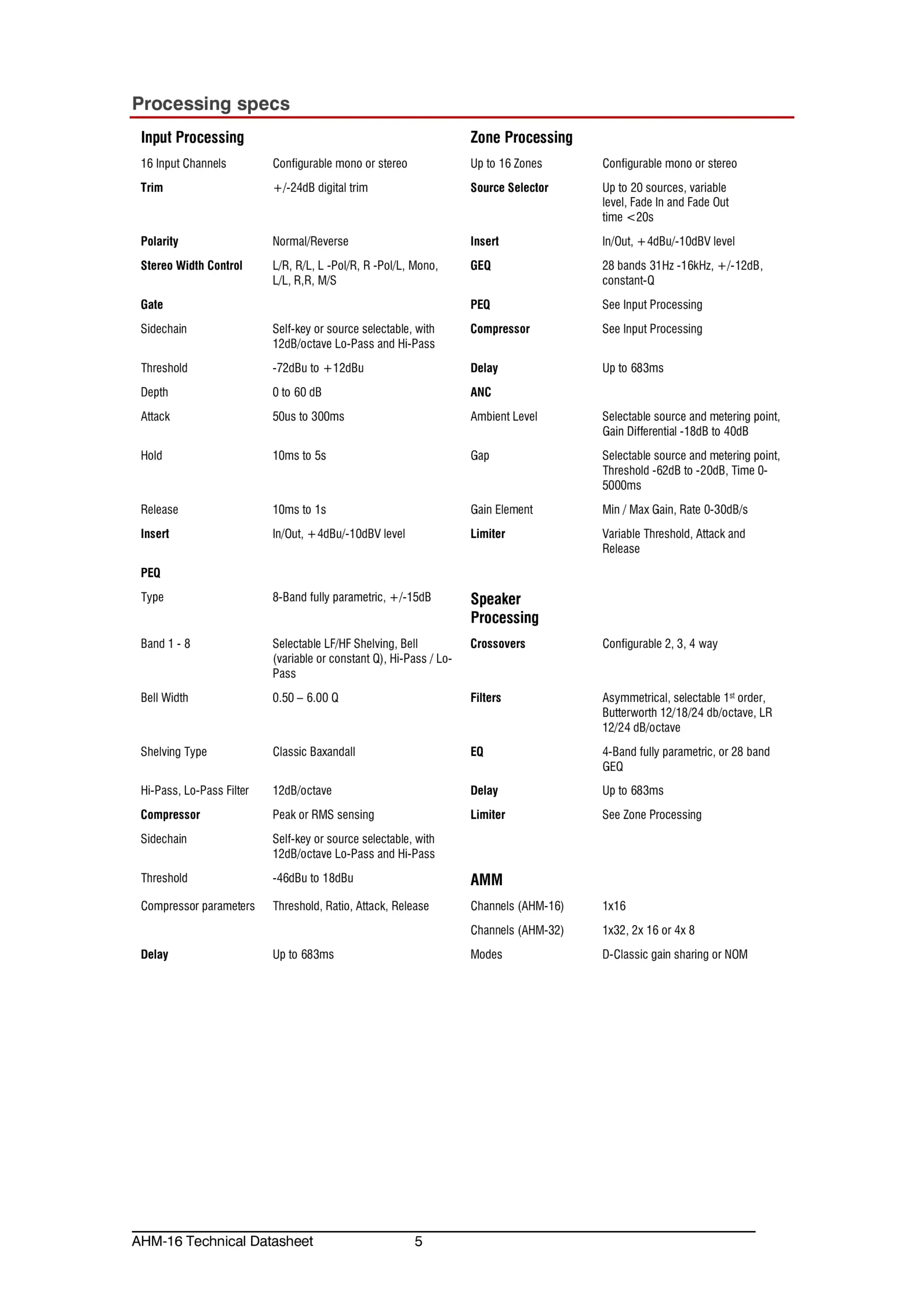

It includes advanced audio processing tools such as:

• EQ per input and output
• Dynamics processing
• Delay alignment
• Speaker tuning and crossover control
• Automatic microphone mixing
• Priority ducking for announcements

This allows full control over both music playback and voice announcements in complex environments.

---

Installed Audio Applications

The AHM-16 is designed specifically for installed sound environments, such as:

• Hotels and hospitality systems
• Restaurants and cafes
• Retail stores and shopping centers
• Corporate offices and boardrooms
• Schools and universities
• Houses of worship

In these environments, the system ensures each zone receives the correct audio source with precise control.

---

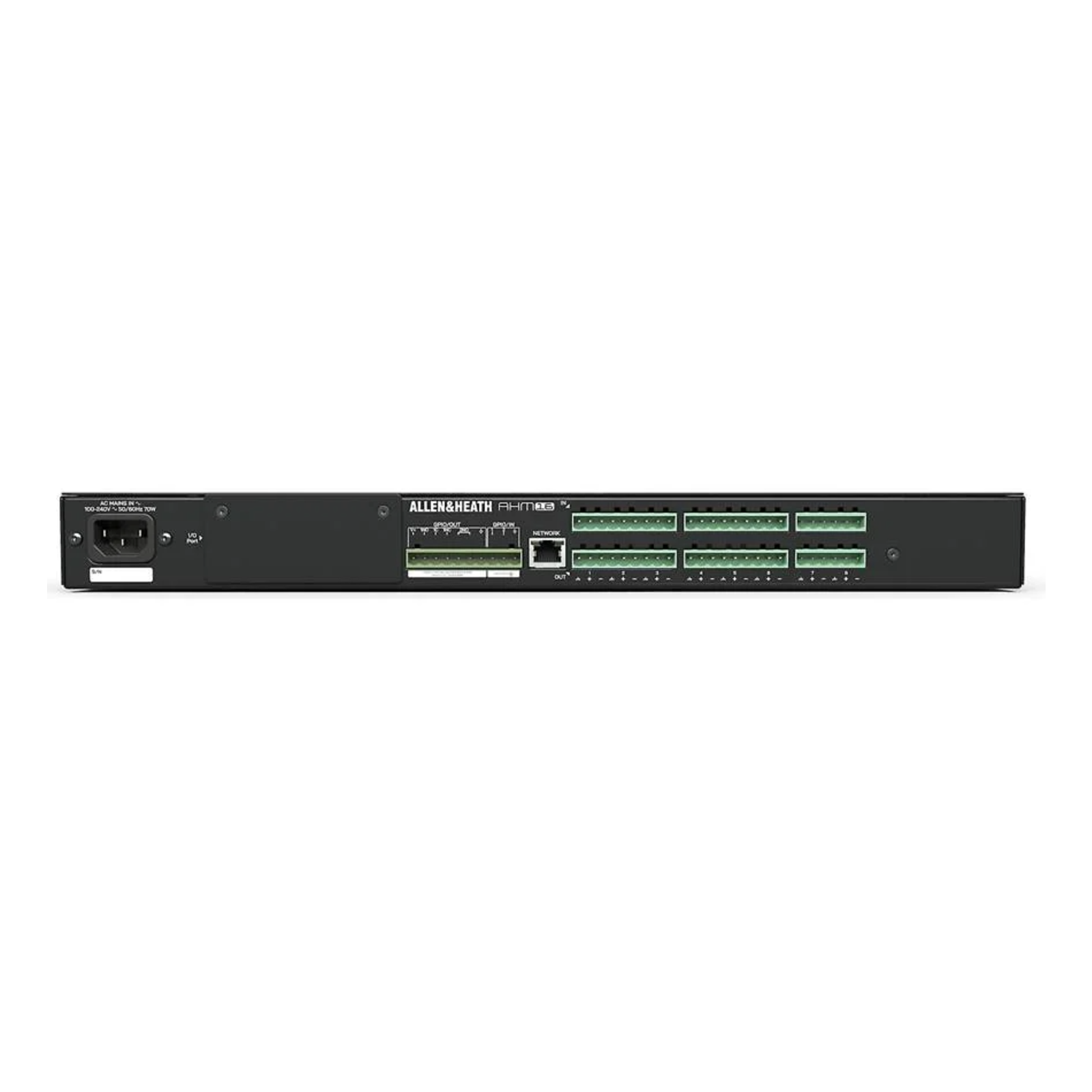

Audio Routing & Expansion

The AHM-16 supports flexible audio expansion and integration.

It includes:

• 8 analog inputs and 8 analog outputs (local I/O)
• Expansion via audio networking (Dante / SLink / option cards)
• Integration with remote I/O systems
• Scalable routing for large installations

This allows the system to grow from a small setup into a full multi-zone distributed audio network.

---

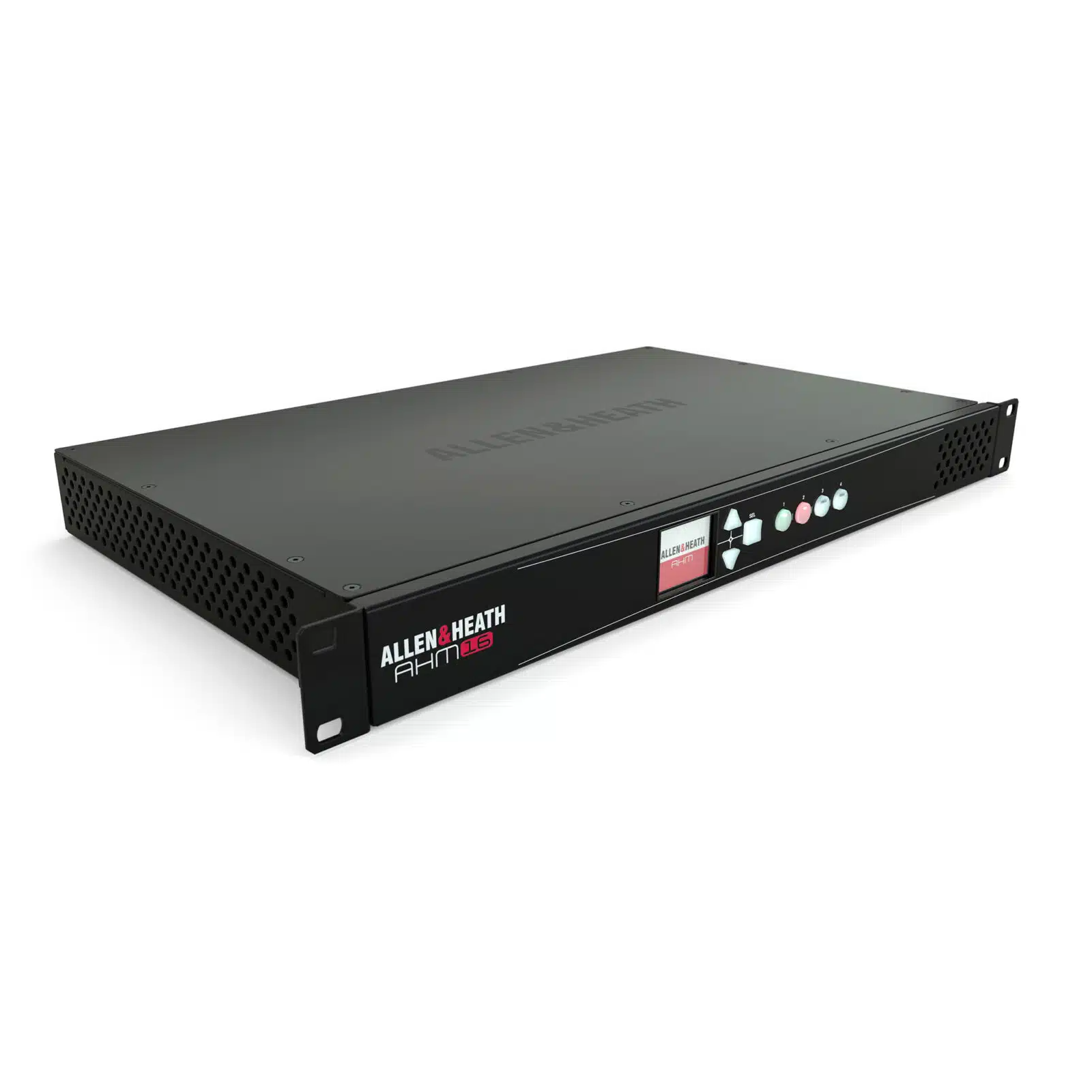

Control & User Interface

The system includes multiple control options designed for both technicians and end users.

Control methods include:

• Front panel interface
• Software control (System Manager)
• Remote wall controllers (IP series panels)
• Network-based control integration

This makes it suitable for both simple user operation and advanced system configuration.

---

Sound Management Features

The AHM-16 includes advanced DSP tools for intelligent sound management:

• Automatic microphone mixing for speech systems
• Ambient noise compensation for changing environments
• Priority ducking for announcements over music
• Zone-based volume control
• Event scheduling for automated audio behavior

These features make it highly effective in commercial environments where automation and consistency are important.

---

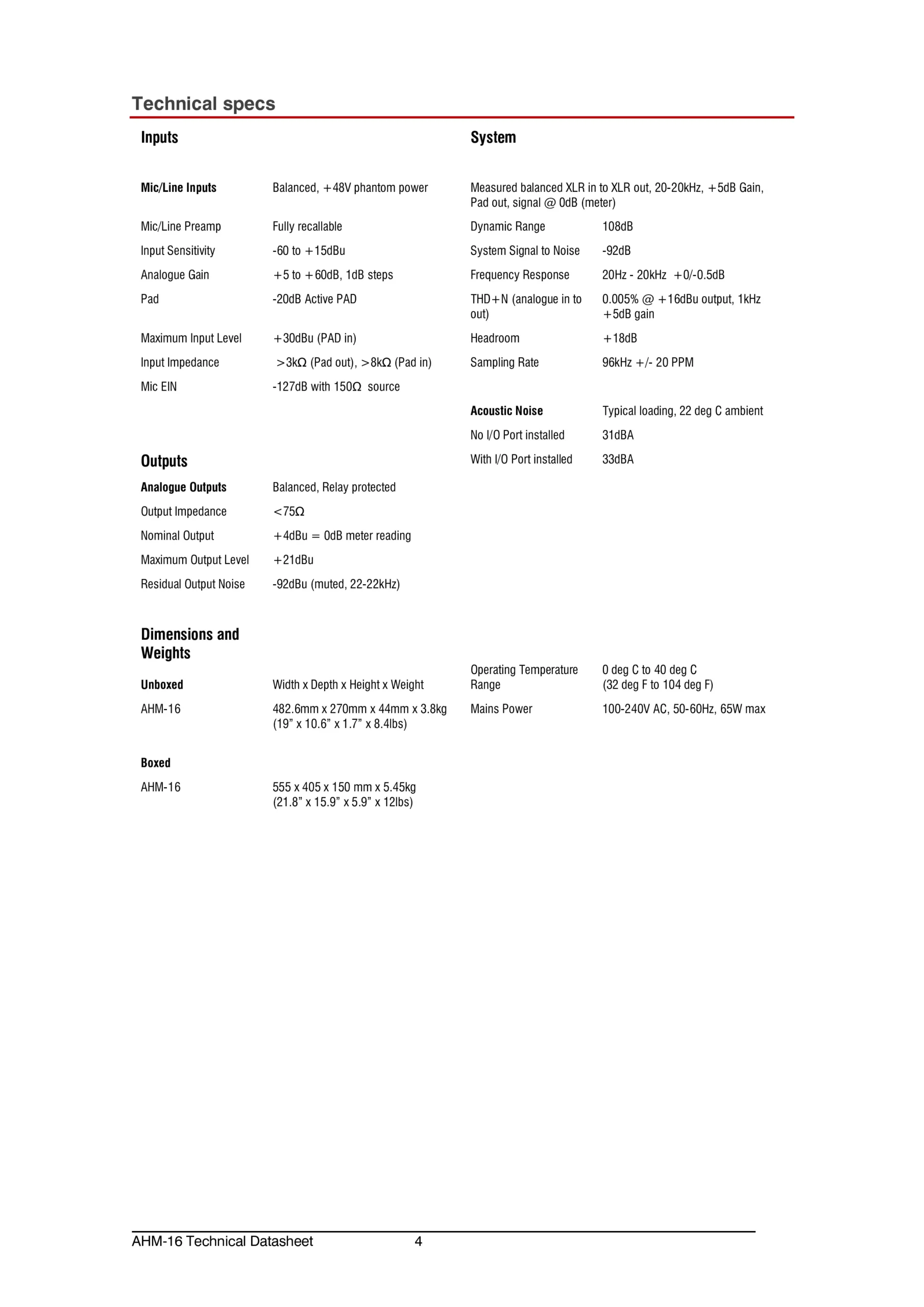

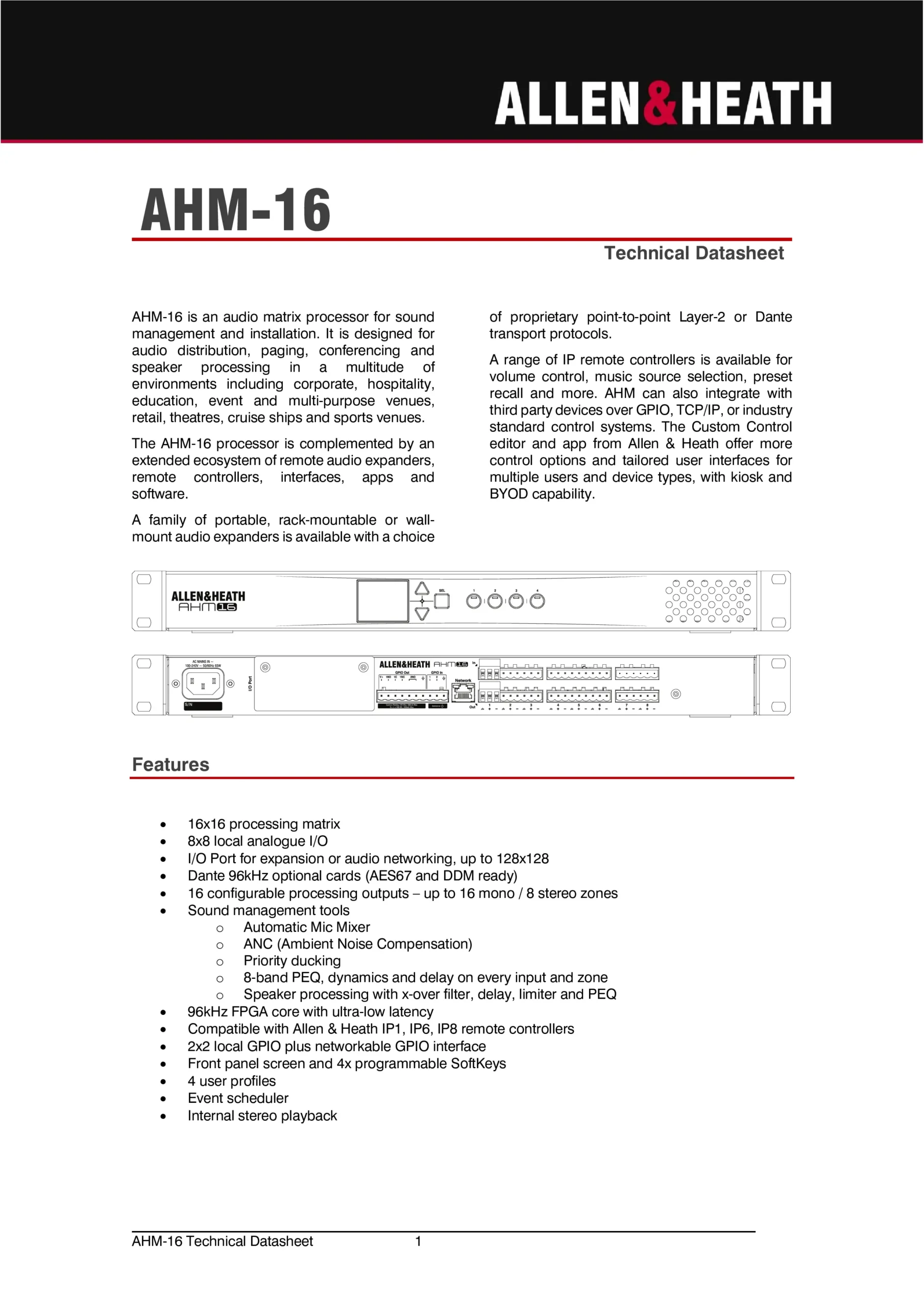

Technical Specifications

• Product Type: Audio Matrix Processor (DSP)
• Processing Matrix: 16×16
• Sample Rate: 96kHz
• Local I/O: 8×8 analog inputs/outputs
• Processing: EQ, dynamics, delay, speaker processing per channel
• Networking: Dante / SLink / option card expansion
• Latency: Ultra-low DSP processing latency
• Control: Front panel, software, network controllers
• Zones: Configurable mono or stereo zones
• Power: Standard IEC mains input
• Form Factor: 19” rackmount unit

---

Performance Overview

The AHM-16 is optimized for stability, clarity, and long-term reliability in installed environments.

It ensures:

• Clean signal routing across multiple zones
• Consistent audio quality across all outputs
• Low-latency processing for live speech and music
• Scalable architecture for system expansion

Unlike live sound mixers, it is designed to run continuously as a fixed installation backbone rather than a performance console.

---

Why It Stands Out

The strength of the AHM-16 lies in its ability to simplify complex audio distribution systems.

Instead of multiple mixers and processors, it provides:

• One central DSP engine
• Full zone control
• Advanced audio processing
• Scalable system integration

This makes it one of the most efficient solutions for commercial installed audio systems.

---

Conclusion

The Allen & Heath AHM-16 is a powerful 16×16 audio matrix processor designed for professional installed sound environments.

It provides flexible routing, advanced DSP processing, and scalable system integration, making it a reliable core solution for multi-zone commercial audio systems.

Explore the Allen & Heath Collection at Lux Audio
